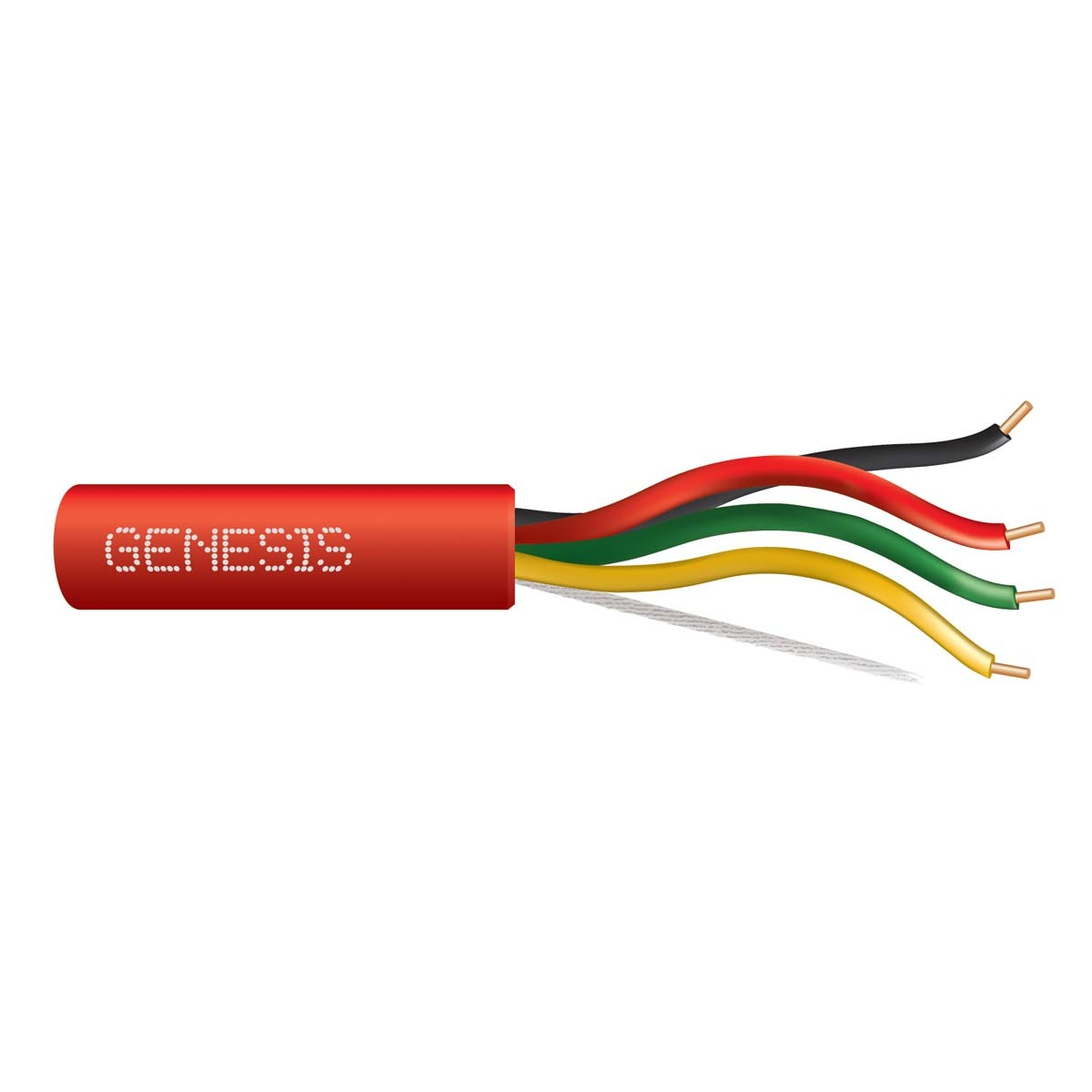

Genesis Cable 45125004 Fire Alarm Unshielded Cable, Plenum 16/4

Product Description

The Genesis Cable 45125004 is a plenum-rated unshielded fire alarm cable suitable for installation in fabricated ducts, environmental air spaces, and risers. It features bare copper conductors for excellent conductivity and low voltage drop. The cable is rated for 300 Volts and for temperatures from -20 °C to 75 °C.

• Bare Copper conductors for excellent conductivity and low voltage drop.
• Low-Smoke PVC insulation.
• Plenum PVC jacket.
• Durable rip cord for efficient jacket stripping and removal.

Product Highlights

This 16 AWG, 4-conductor solid unshielded cable ensures uninterrupted fire protection with its plenum rating and durable construction.

Product Information

Standard Information

• Brand: Genesis Cable
• Manufacturer Part Number: 45125004
• Country of Origin: United States

Technical Specifications

• Size (AWG or kcmil): 16 AWG
• No. of Conductors: 4
• Stranding: Solid
• Shielding: Unshielded
• Nominal Total Weight (lbs/1000'): 41
• Brand Name: Genesis
• Manufacturer: Genesis Cable
• Manufacturer Part Number: 45125004
• Packaged Quantity: 1
• Product Model: 45125004
• Product Type: Fire Alarm Cables
• American Wire Gauge: 16AWG
• Armored: No
• Cable Rating: Plenum
• Conductor Count: 4
• Conductor Material: Bare Copper
• Core/Cladding Diameter: 16/4
• Jacket Material: LS-PVC
• Jacket Type: Plenum
• Number of Conductors: 4
• TAA Compliant: Yes
• Cable Length: 500'
• Insulation Material: LS-PVC
• Package Type: Reel/Spool
• Country of Origin: US
• Environmental Certification: RoHS
• Indoor/Outdoor: Indoor
• Model: 45125004 GENESIS
• Type: CABLE
• MPN: G45125004
• Device Supported: Fire Alarm
• Connector on Second End: Bare Wire
• Material: Polyvinyl Chloride (PVC) - Jacket
• Connector on First End: Bare Wire
