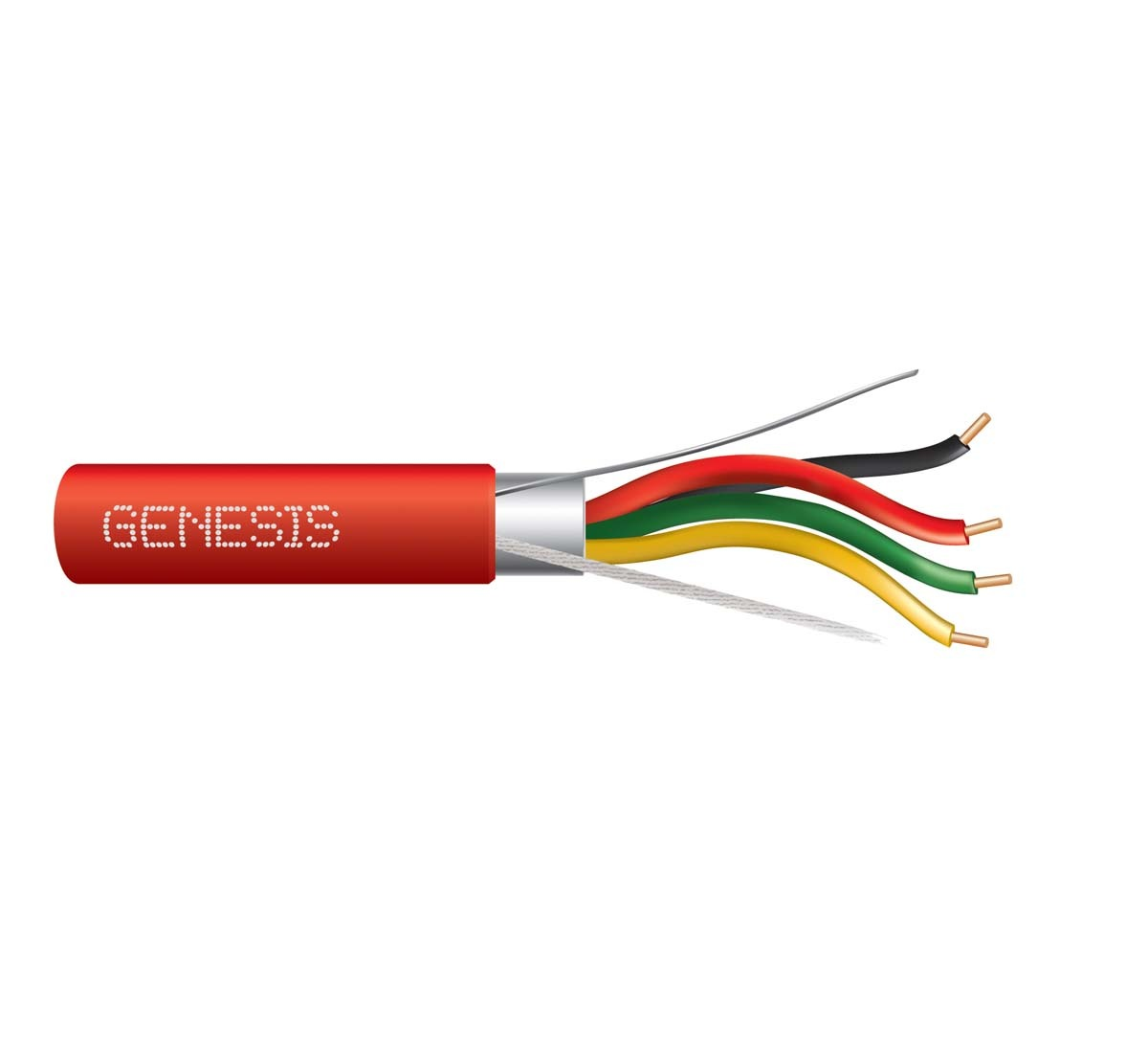

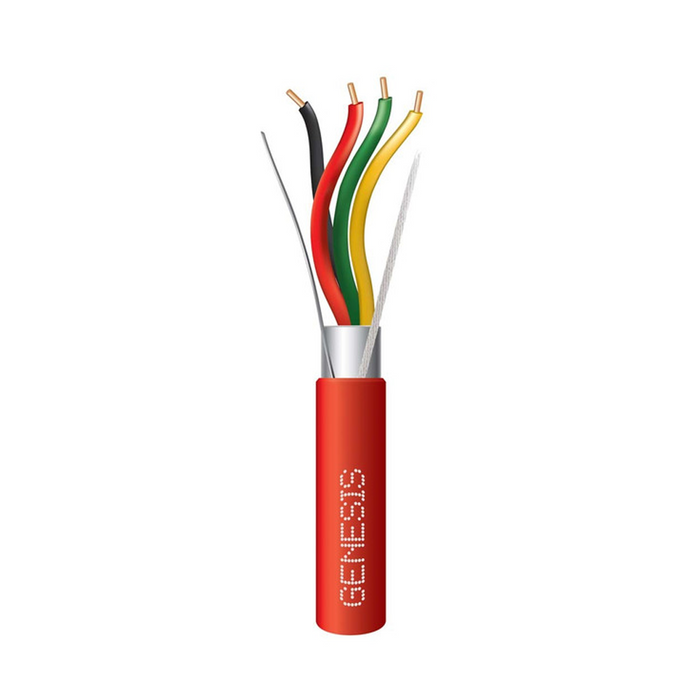

Genesis Cable 44071004 Fire Alarm Shielded Cable, Riser 16 SOL CU 4/C OAS CMR/CL3R/FPLR PVC RED GEN 1000 FT

Product Description

The Genesis Cable 44071004 Riser Rated Shielded Fire Alarm Cable is suitable for installation in metal raceways, solid bottom metal cable trays, and risers. This cable features bare copper conductors, polypropylene insulation, and a PVC jacket. It is rated for 300 Volts and for temperatures between -20 °C to 75 °C.

• Bare Copper conductors for excellent conductivity and low voltage drop.
• Polypropylene insulation.
• Foil shield over all conductors.

Product Highlights

This shielded fire alarm cable ensures uninterrupted fire protection and exceeds the demands of rigorous fire safety codes. It features a durable rip cord and Countdown length markings.

Product Information

Standard Information

• Brand: Genesis Cable
• Manufacturer Part Number: 44071004
• Country of Origin: United States

Technical Specifications

• Size (AWG or kcmil): 16 AWG
• No. of Conductors: 4
• Stranding: Solid
• Shielding: Yes
• Nominal Total Weight (lbs/1000'): 43
• Brand Name: Genesis
• Manufacturer: Genesis Cable
• Manufacturer Part Number: 44071004
• Packaged Quantity: 1
• Product Model: 44071004
• Product Name: 16 AWG 4C SOL Shielded Riser, Red, 1000 ft. Reel
• Product Type: Fire Alarm Cables
• American Wire Gauge: 16AWG
• Armored: No
• Cable Rating: Riser
• Conductor Count: 4
• Conductor Material: Bare Copper
• Jacket Material: PVC
• Number of Conductors: 4
• Solid or Stranded: Solid
• TAA Compliant: Yes

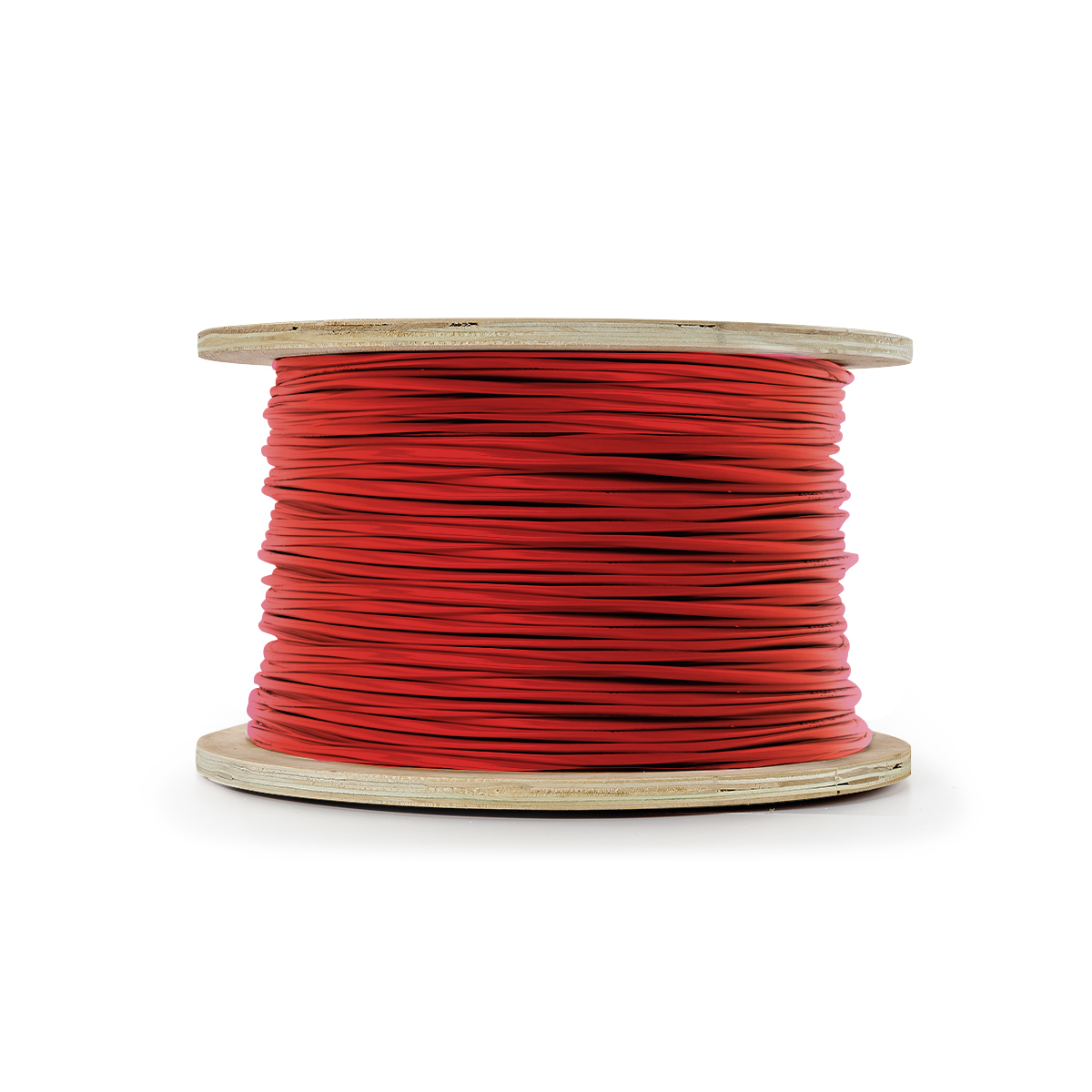

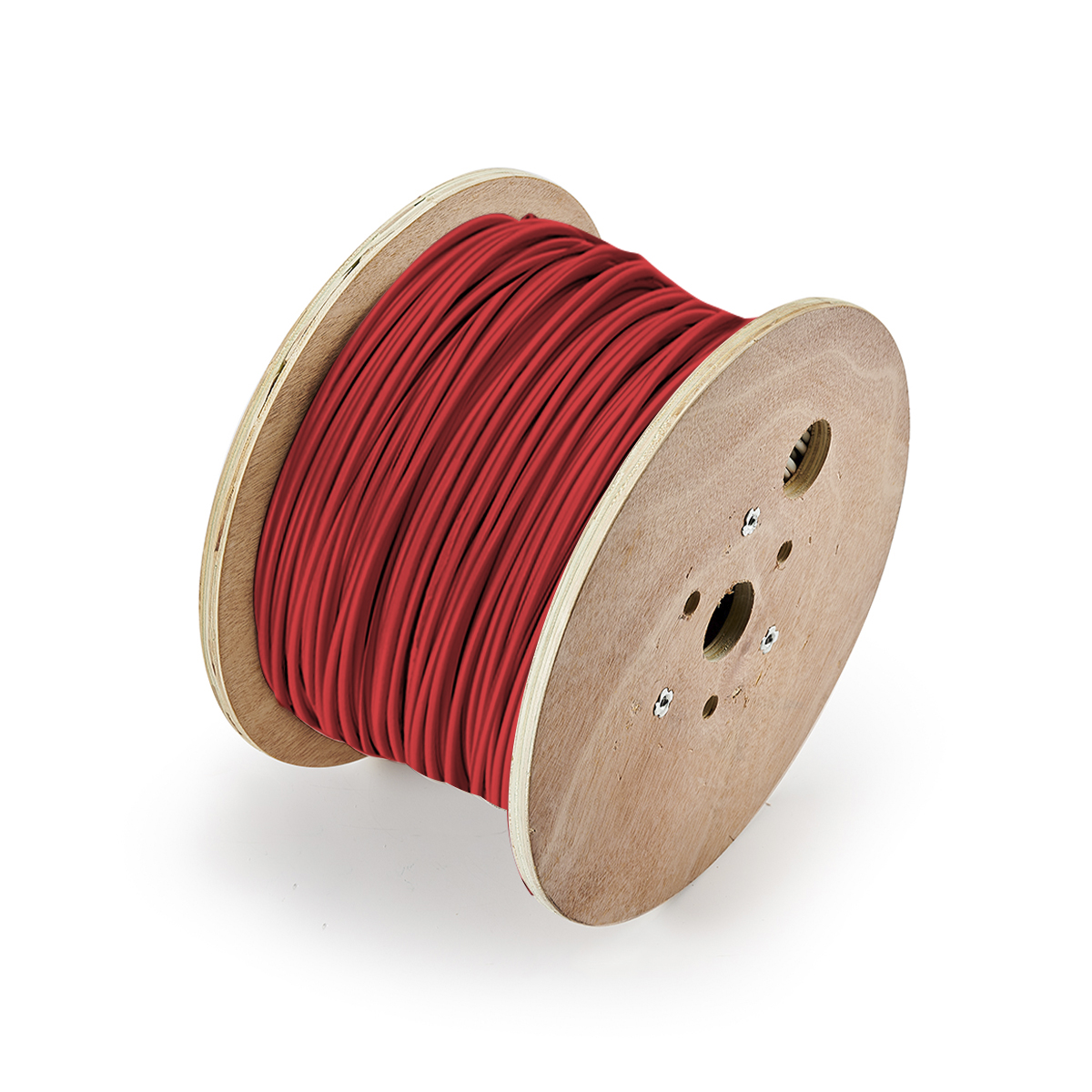

• Cable Length: 1000'
• Color: Red
• Insulation Material: PP
• Package Type: Reel/Spool
• Country of Origin: US
• Environmental Certification: RoHS
• Indoor/Outdoor: Indoor
