Genesis Cable 43125504 Fire Alarm Unshielded Cable, Riser 500 feet

Product Description

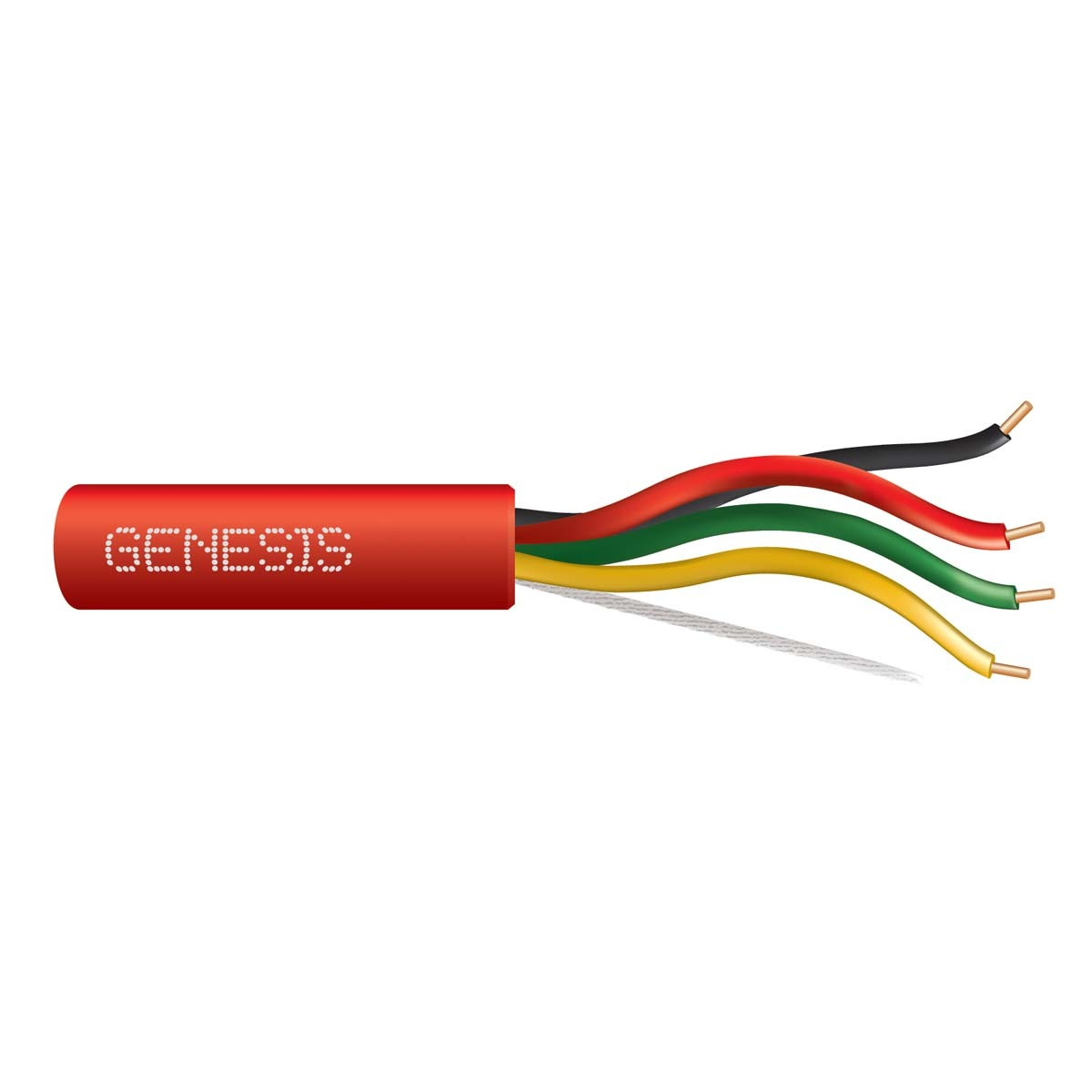

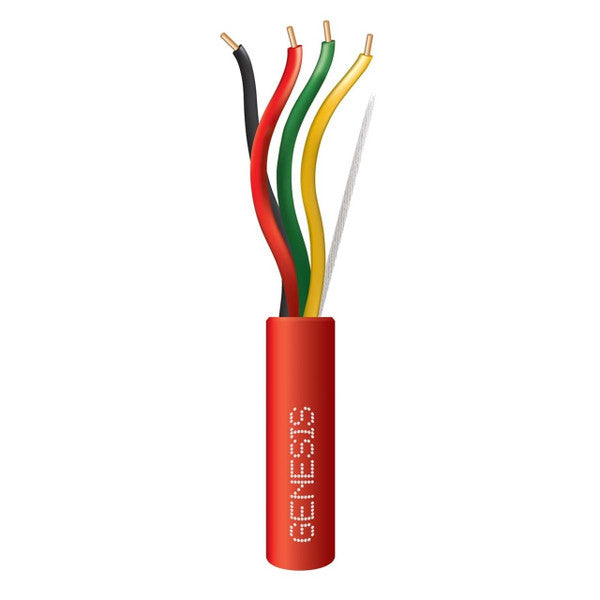

Genesis Cable 43125504 is a riser-rated unshielded fire alarm cable suitable for installation in metal raceways, solid bottom metal cable trays, and risers. This 16 AWG cable features 4 solid bare copper conductors, polypropylene insulation, and a PVC jacket. It is also sunlight resistant and REACH/RoHS compliant.

• Bare Copper conductors for excellent conductivity and low voltage drop.
• Polypropylene insulation.
• PVC jacket.

Product Highlights

This unshielded fire alarm cable ensures uninterrupted fire protection and exceeds rigorous fire safety codes. It is UL listed and made in the USA.

Product Information

Standard Information

• Brand: Genesis Cable
• Manufacturer Part Number: 43125504
• Country of Origin: United States

Technical Specifications

• Size (AWG or kcmil): 16 AWG
• No. of Conductors: 4
• Stranding: Solid
• Shielding: Unshielded
• Nominal Total Weight (lbs/1000'): 40
• Cable Length: 500'
• American Wire Gauge: 16AWG
• Cable Rating: Riser
• Conductor Count: 4
• Conductor Material: Bare Copper
• Jacket Material: PVC
• Solid or Stranded: Solid
• TAA Compliant: Yes
• Insulation Material: PP
• Package Type: REELEX Pull Box
• Environmental Certification: RoHS
• Indoor/Outdoor: Indoor
• Brand Name: Genesis
• Manufacturer: Genesis Cable
• Manufacturer Part Number: 43125504
• Packaged Quantity: 1
• Product Model: 43125504
• Product Name: Riser Rated Power Limited Fire Alarm Cable
• Product Type: Control Cable
• Armored: No
• Number of Conductors: 4
• Material: Polypropylene - Insulation, Polyvinyl Chloride (PVC) - Jacket
• Environmentally Friendly: Yes
• Device Supported: Fire Alarm
• Connector on Second End: Bare Wire
• Connector on First End: Bare Wire
• Country of Origin: United States
• Cable Listing: CL3R, FPLR, FT4, Sunlight Resistant
• Wire Style: Solid
• Application: Security
• Item Length: 500 ft
