Product Description

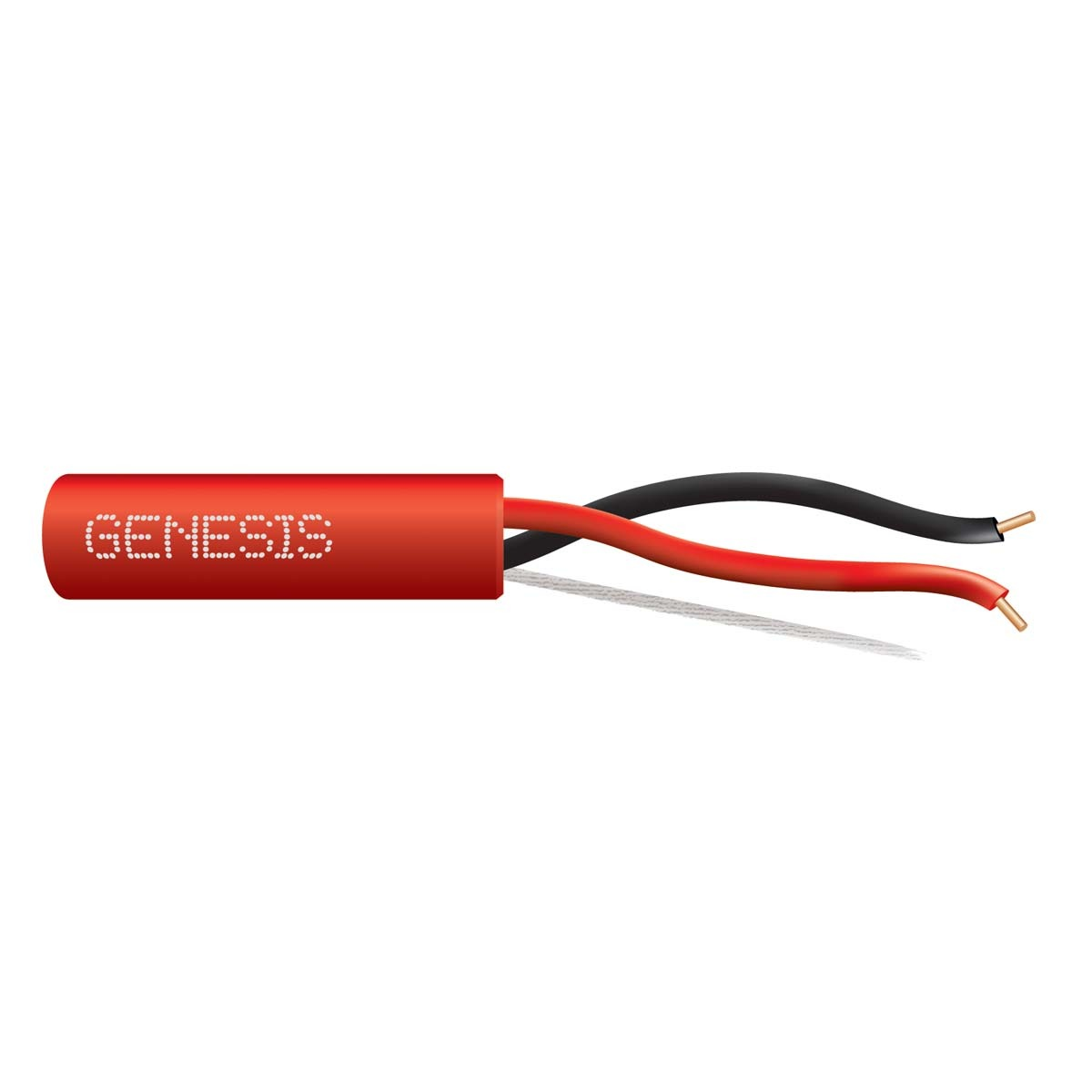

The Genesis Cable 43115504 is a 16/2 solid unshielded cable supplied in a 500' box. This fire alarm cable features bare copper conductors for excellent conductivity, polypropylene insulation, and a durable PVC jacket. It is suitable for use in metal raceways and is sunlight resistant. The cable is riser rated and supports a voltage of 300V, with an operating temperature range of -20°C to 75°C.
- Bare copper conductors for excellent conductivity
- Polypropylene insulation and PVC jacket
- Riser rated for use in vertical shafts
Product Highlights
Reliable fire alarm cable with solid conductors, polypropylene insulation, and a durable PVC jacket, supplied in a 500' box.
Product Information
Standard Information
-
Brand: Genesis Cable
-
Manufacturer Part Number: 43115504
-
Country of Origin: United States
Technical Specifications
-
Brand: Honeywell
-
Manufacturer: Honeywell Genesis
-
UPC: 619172027472
-
Item model number: 43115504
-
ASIN: B0024JZYRY
-
Size (AWG or kcmil): 16 AWG
-
No. of Conductors: 2
-
Stranding: Solid
-
Shielding: Unshielded
-
Nominal Total Weight (lbs/1000'): 22 lbs/1000'
-
ADI Part Number: WG-43115504
-
Manufacturer Part Number: 43115504
-
Packaged Quantity: 1
-
Product Model: 43115504
-
Product Name: 43115504 Control Cable
-
Product Type: Fire Alarm Cables
-
American Wire Gauge: 16AWG
-
Armored: No
-
Cable Rating: Riser
-
Conductor Count: 2
-
Conductor Material: Bare Copper
-
Core/Cladding Diameter: 16/2
-
Jacket Material: PVC
-
Number of Pairs: 1
-
Solid or Stranded: Solid
-
TAA Compliant: Yes
-
ADI Part Number Replaces: WG-41115504
-
Model Number Replaces: 41115504
-
Cable Length: 500'
-
Insulation Material: PP
-

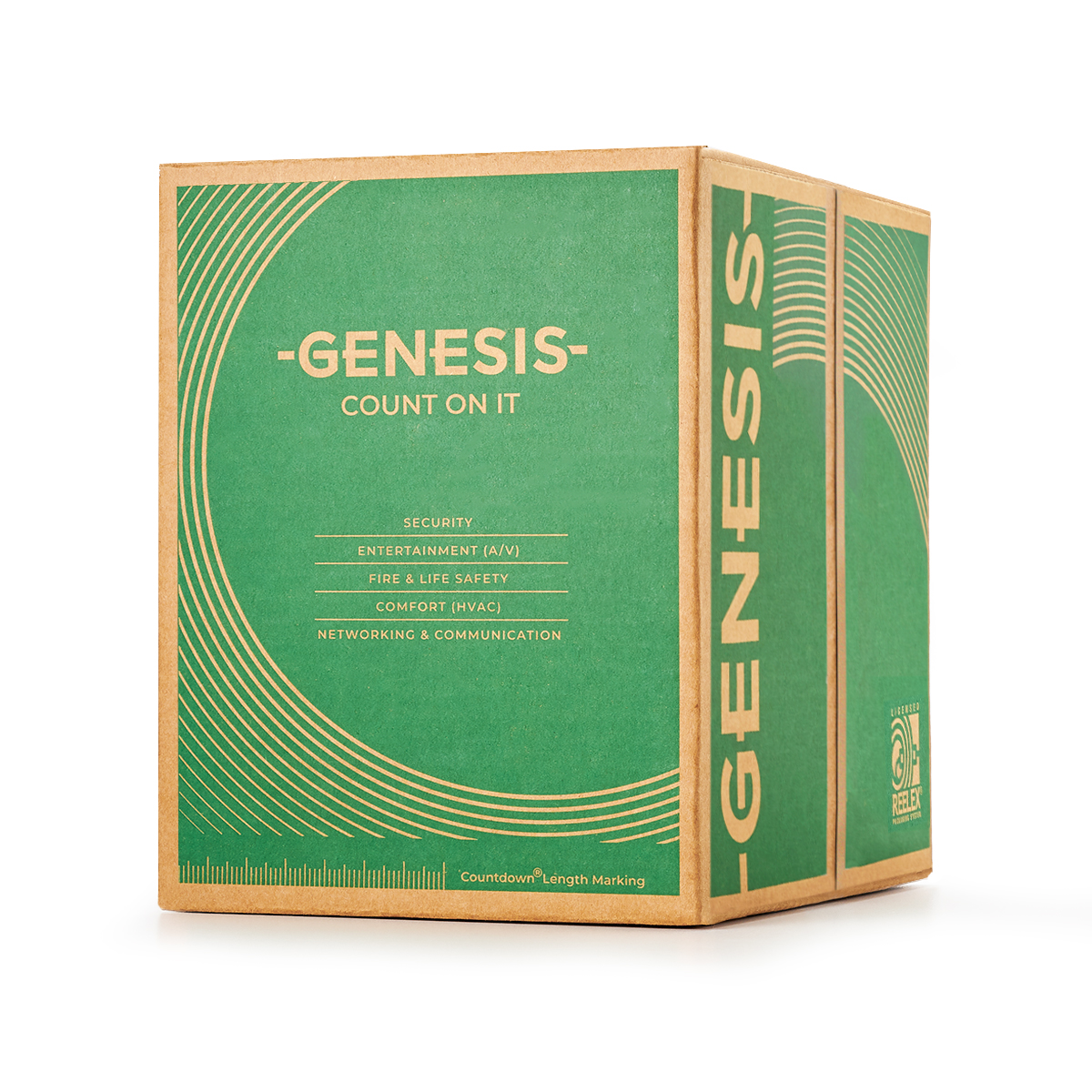

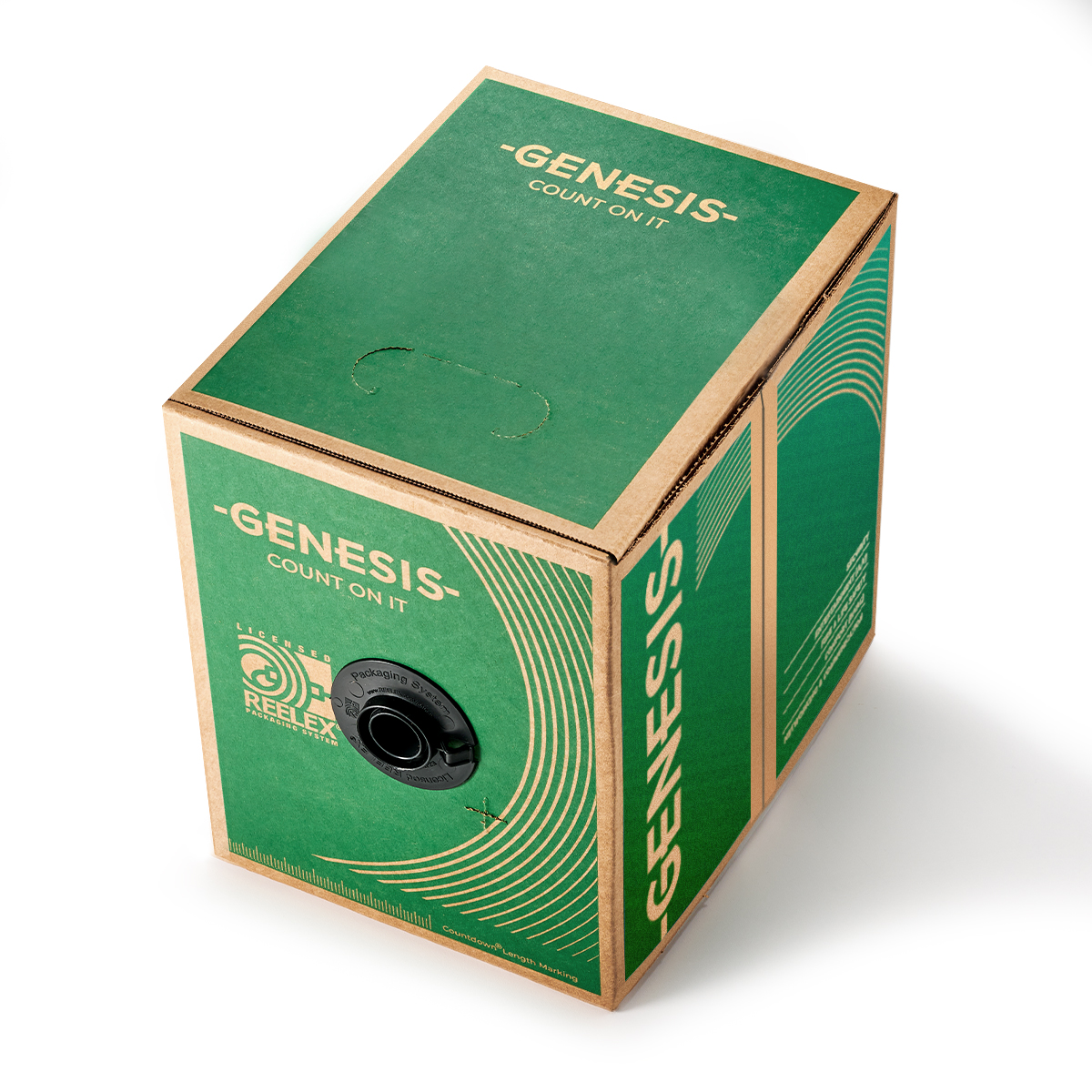

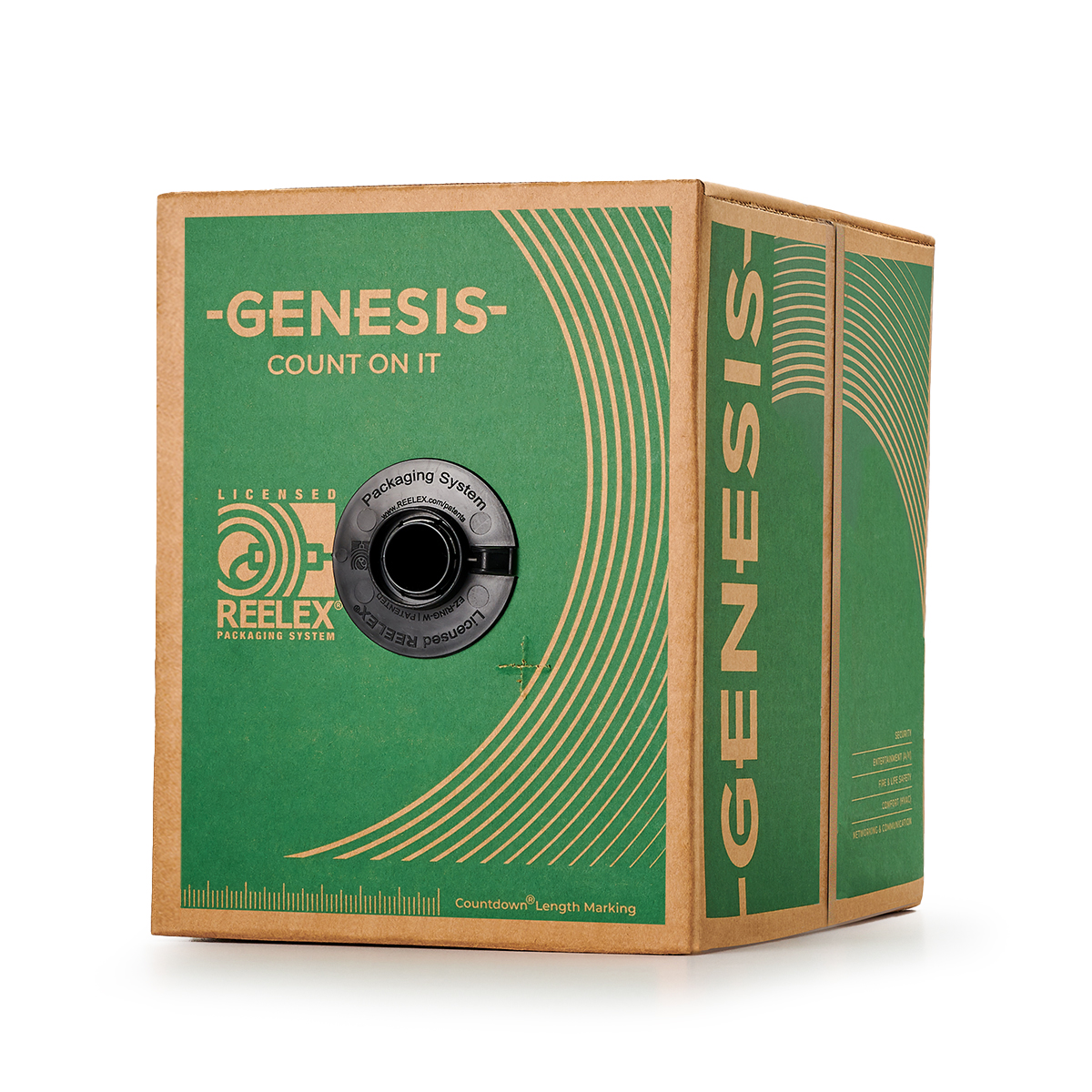

Package Type: REELEX Pull Box
-
Environmental Certification: RoHS
-
Indoor/Outdoor: Indoor
-
Cable Listing: FPLR, CL3R, FT4, Sunlight Resistant
-
Wire Gauge (AWG): 16
-
Number of Strands: 1
-
Conductor Insulation Material: Polypropylene
-
Insulation Colors: Black, Red
-
Rip Cord: Yes
-
Nominal Outer Diameter: 0.165 in.
-
Rated Voltage (Max): 300 Volts
-
DC Resistance (Max): 4.1 Ohms / 1000 ft. at 20 °C
-
Capacitance (Nominal): 22.3 pF / ft.
-
Impedance (Nominal): 68 Ohms
-
Velocity of Propagation: 0.67
-
Temperature Rating (Max): 75 °C
-
Temperature Rating (Min): -20 °C
-
Product Length: 500 ft
-
Length Per Unit: 500 ft.
-
Package Quantity: 1
-
Cable Packaging: Pull Box
-
Package Length: 10.5 in
-
Package Width: 7.75 in
-
Package Height: 10.5 in
-
CAT: CL3R FPLR
-
Voltage: 300V
-
Compliance: NFPA 262
CSA C22.2 No. 2556
UL444
UL1424
UL13
REACH/RoHS
-
Cable Type: Fire Alarm Unshielded Cable
-
Condition: New
-
Sheath Color: Red
-
MPN: 43115504
-
Item Length: 500 ft
-
voltage rating: 300 V
-
temperature rating: -20 To 75 Deg C
-
Jacket Type: PVC
