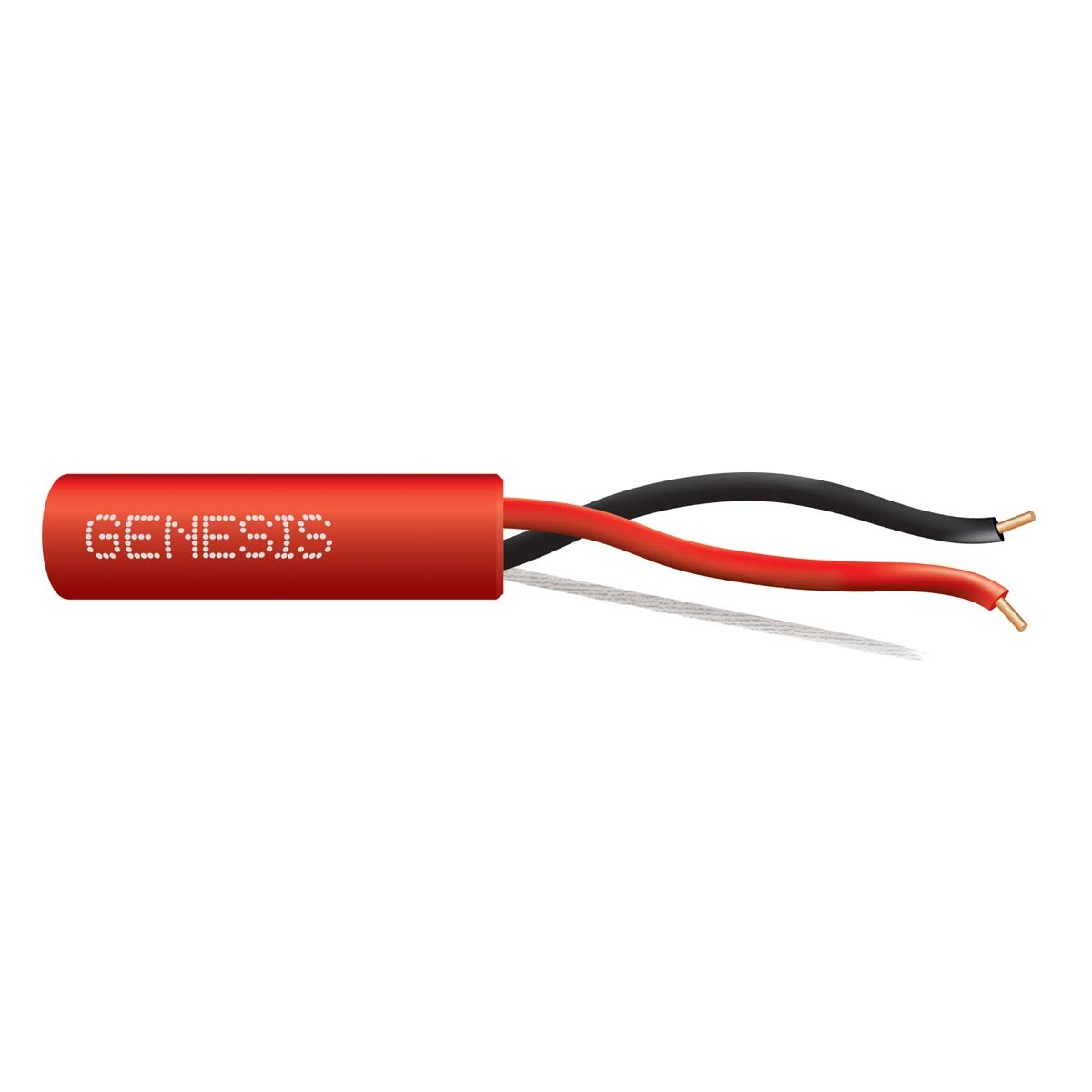

Genesis Cable 43111104 fire alarm unshielded cable, riser 16 AWG

Product Description

The Genesis Cable 43111104 is a riser rated unshielded fire alarm cable suitable for installation in metal raceways, solid bottom metal cable trays and risers. It features bare copper conductors, polypropylene insulation, and a PVC jacket. The cable is rated for 300 Volts and for temperatures from -20 °C to 75 °C.

• Bare copper conductors for excellent conductivity
• Durable rip cord for efficient jacket stripping
• Countdown Length Markings for easy tracking of usage

Product Highlights

This 16 AWG solid conductor cable ensures uninterrupted fire protection, exceeding fire safety codes and regulations. It is UL listed and REACH/RoHS compliant.

Product Information

Standard Information

• Brand: Genesis Cable
• Manufacturer Part Number: 43111104
• Country of Origin: US

Technical Specifications

• Size (AWG or kcmil): 16 AWG
• No. of Conductors: 2
• Stranding: Solid
• Shielding: Unshielded
• Nominal Total Weight (lbs/1000'): 22
• ADI Part Number: WG-43111104
• Brand Name: Genesis
• Manufacturer: Genesis Cable
• Manufacturer Part Number: 43111104
• Packaged Quantity: 1
• Product Model: 43111104
• Product Name: 43111104 Control Cable
• Product Type: Fire Alarm Cables
• American Wire Gauge: 16AWG
• Armored: No
• Cable Rating: Riser
• Conductor Count: 2
• Conductor Material: Bare Copper
• Jacket Material: PVC
• Number of Conductors: 2
• Number of Pairs: 1
• Solid or Stranded: Solid
• TAA Compliant: Yes
• Cable Length: 1000'
• Color: Red
• Insulation Material: PP

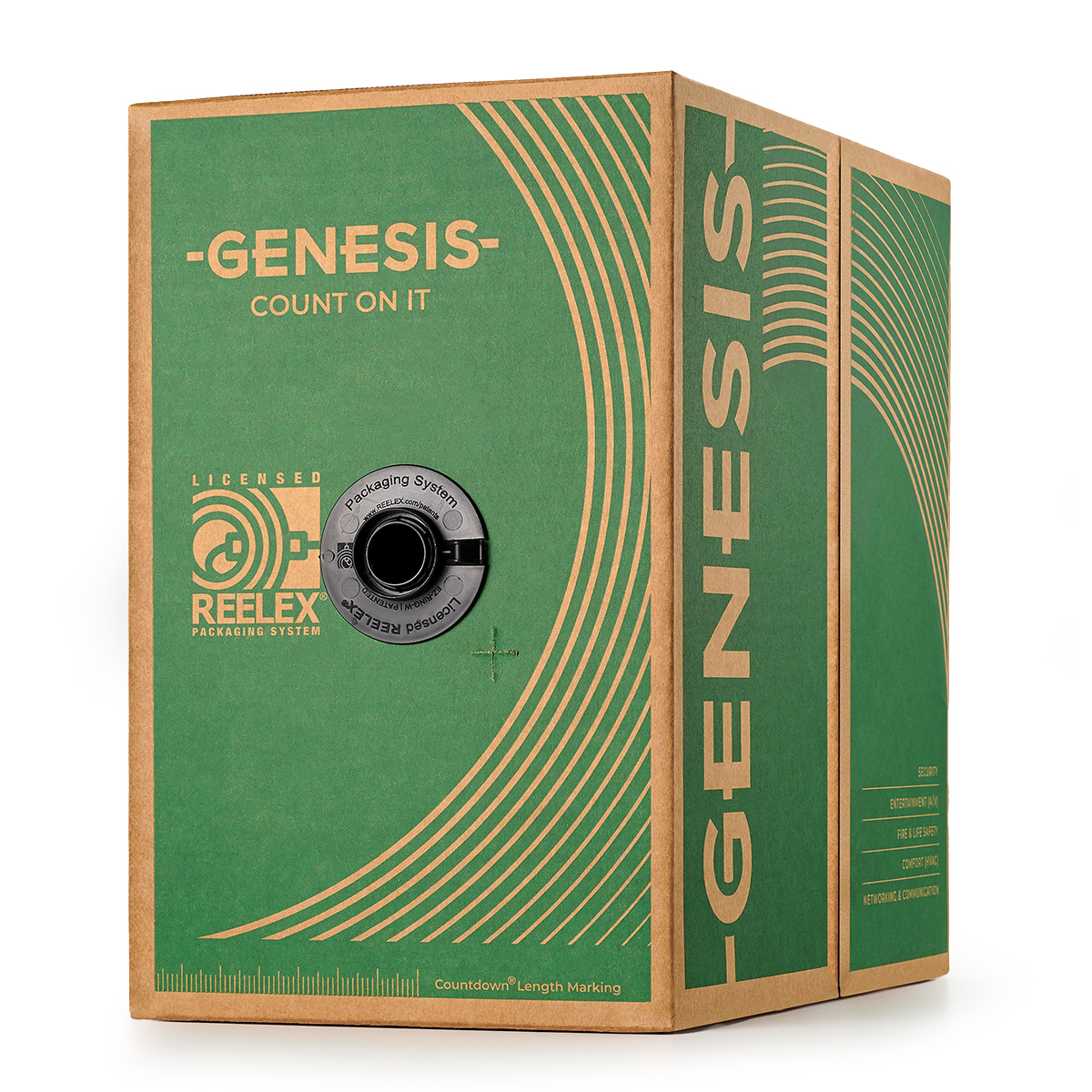

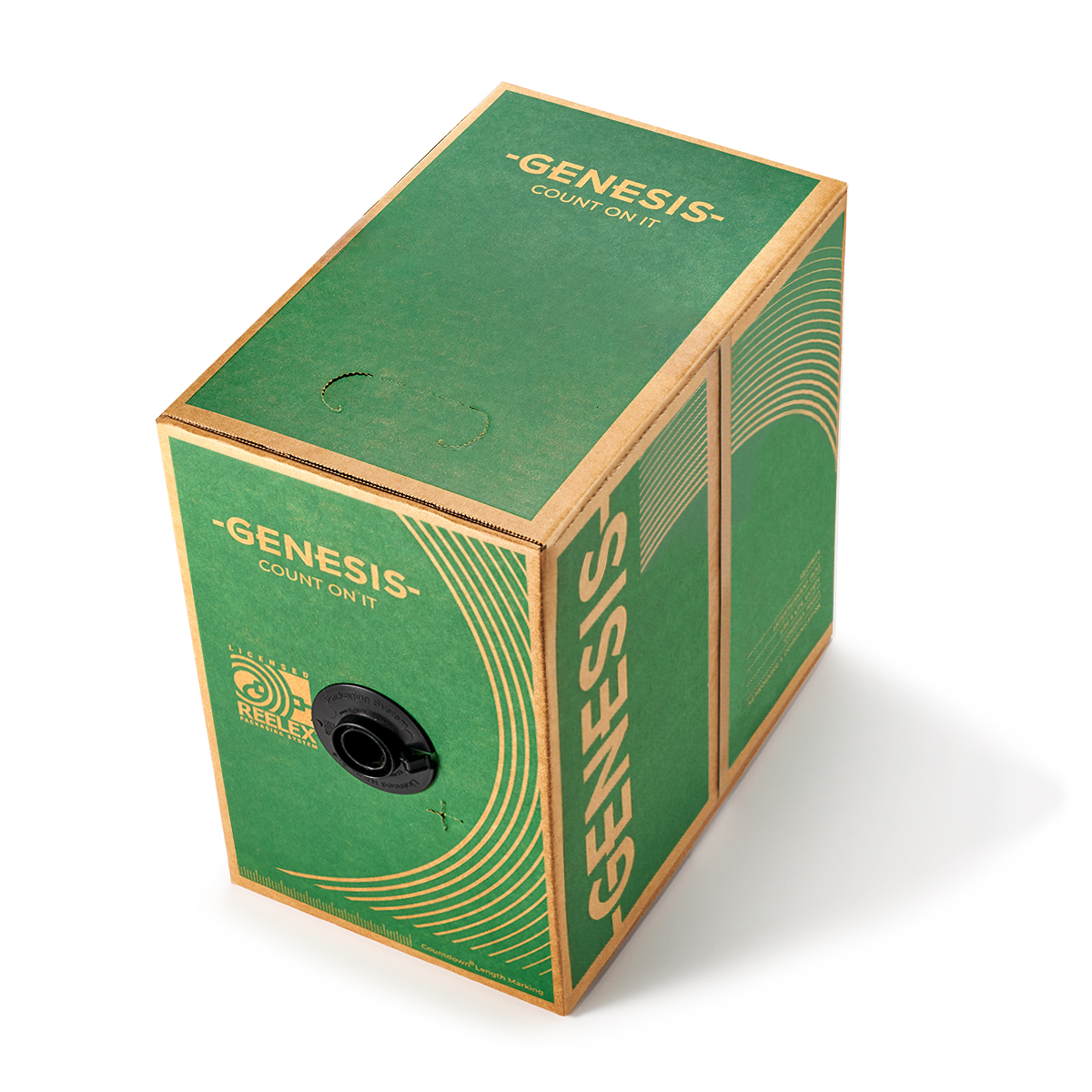

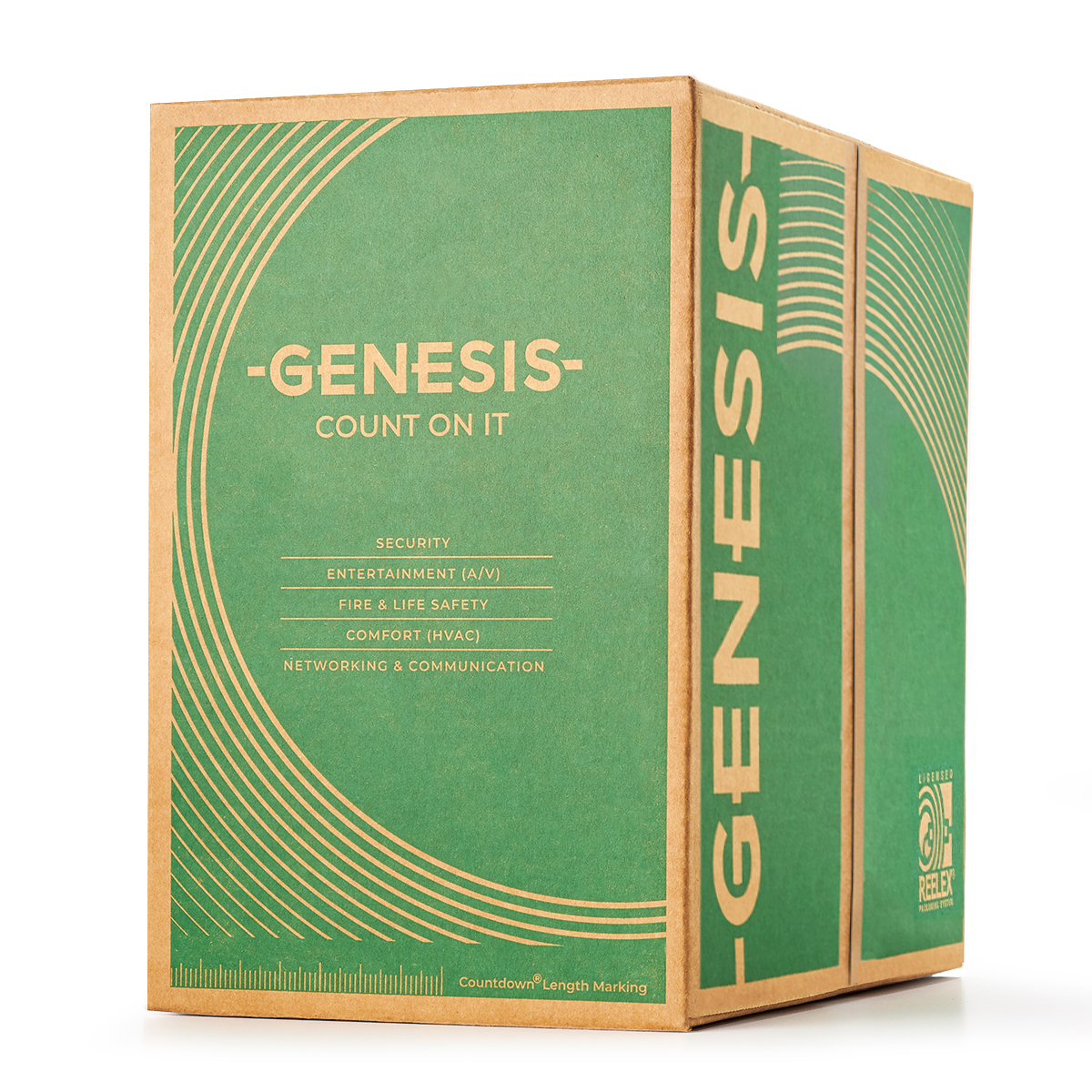

• Package Type: REELEX Pull Box
• Environmental Certification: RoHS
• Indoor/Outdoor: Indoor
• Condition: New
• Unit of Measurement: EA (Each)
