Product Description

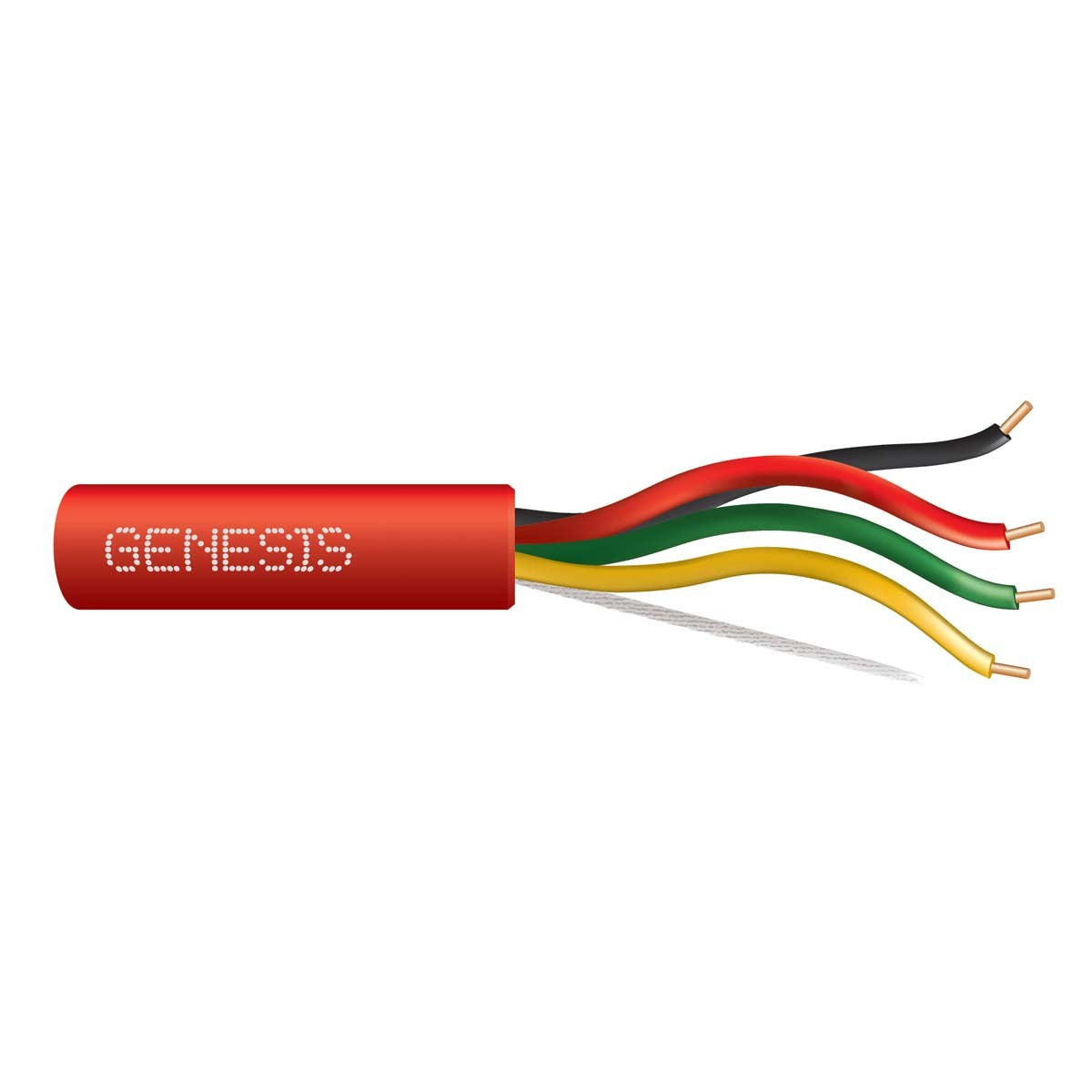

The Genesis Cable 43071104 is an 18 AWG, 4 conductor solid unshielded cable. This FPLR/CL2R/C(UL)/FT4 type cable comes in a 1000' box. It features bare copper conductors for excellent conductivity and low voltage drop and is suitable for fire alarm systems and general purpose indoor installation.
- Bare copper conductors for excellent conductivity
- Rated for riser and general purpose indoor installation
- Durable rip cord for efficient jacket stripping
Product Highlights
18 AWG, 4 conductor solid unshielded cable in a 1000' box. Ideal for fire alarm systems.
Product Information
Standard Information
-
Brand: Genesis Cable
-
Manufacturer Part Number: 43071104
-
Country of Origin: United States
Technical Specifications
-
Brand: Honeywell
-
Manufacturer: Genesis Cable
-
Model / MPN: 43071104
-
Product Type: ELECTRONIC_CABLE
-
Size (AWG or kcmil): 18 AWG
-
No. of Conductors: 4
-
Stranding: Solid
-
Shielding: Unshielded
-
Nominal Total Weight (lbs/1000'): 26
-
Cable Rating: Riser
-
Cable Listing: FPLR, CL3R, FT4, Sunlight Resistant
-
Wire Gauge (AWG): 18
-
Number of Strands: 1
-
Conductor Material: Bare Copper
-
Conductor Insulation Material: Polypropylene
-
Insulation Colors: Black, Red, Green, Yellow
-
Rip Cord: Yes
-
Jacket Material: PVC
-
Nominal Outer Diameter: 0.159 in.
-
Rated Voltage (Max): 300 Volts
-
DC Resistance (Max): 6.52 Ohms / 1000 ft. at 20 °C
-
Velocity of Propagation: 67%
-
Temperature Rating (Max): 75 °C
-
Temperature Rating (Min): -20 °C
-
Product Length: 1000 ft
-
Length Per Unit: 1000 ft.
-
Package Quantity: 1
-
Cable Packaging: Pull Box
-
Package Length: 13 in
-
Package Width: 7.75 in
-
Package Height: 13 in
-
Material: Polyvinyl Chloride (PVC) - Jacket
-
Control Cable: Control Cable
-
Connector on Second End: Bare Wire
-
Device Supported: Fire Alarm
-
Connector on First End: Bare Wire
-
Condition: New
-
Unit of Measurement: EA (Each)
-
Production Status: Active
-
Model: 43071104 GENESIS
-
Type: CABLE
-
MPN: GE43071104
-
Country of Origin: United States
