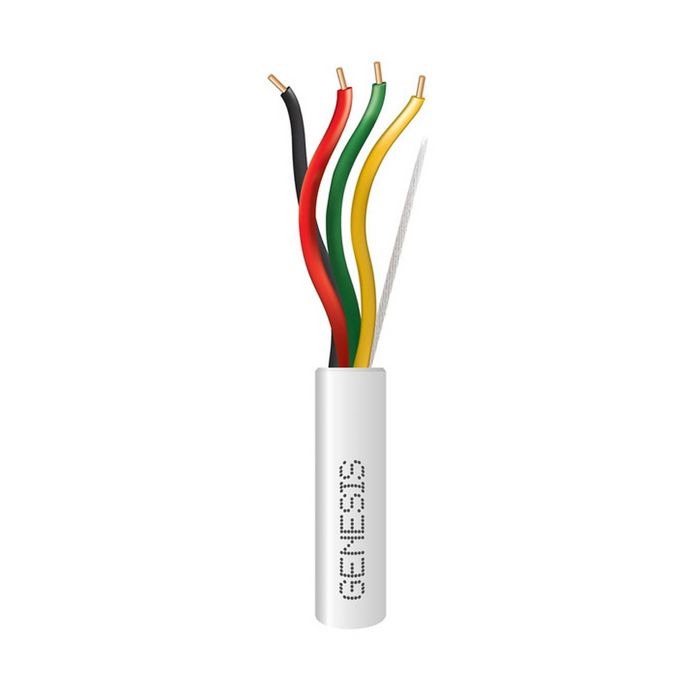

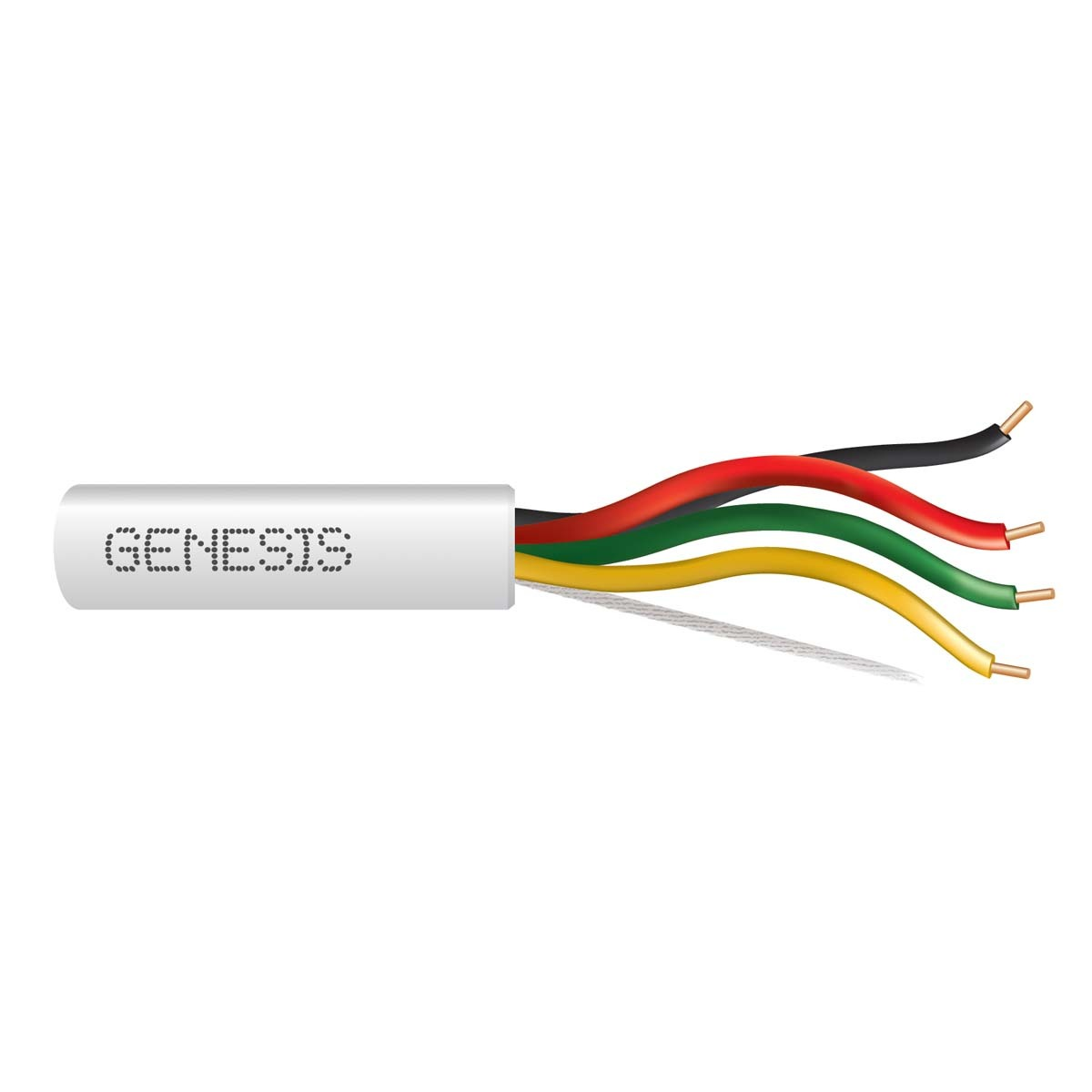

Genesis Cable 43071101 Fire Alarm Unshielded Cable 18 SOL CU 4/C 1000 FT

Product Description

The Genesis Cable 43071101 is a riser rated unshielded fire alarm cable suitable for installation in metal raceways, solid bottom metal cable trays, and risers. This 18 AWG cable features 4 solid bare copper conductors ensuring excellent conductivity. It is designed for use within buildings in other than air-handling spaces and risers and can be exposed to sunlight.

• Bare Copper conductors for excellent conductivity and low voltage drop.
• Polypropylene insulation.
• PVC jacket.

Product Highlights

This Genesis Cable fire alarm cable ensures uninterrupted fire protection and exceeds rigorous fire safety codes. UL listed and RoHS compliant.

Product Information

Standard Information

• Brand: Genesis Cable
• Manufacturer Part Number: 43071101
• Country of Origin: US

Technical Specifications

• Size (AWG or kcmil): 18 AWG
• No. of Conductors: 4
• Stranding: Solid
• Shielding: Unshielded
• Nominal Total Weight (lbs/1000'): 26
• Product Type: Control Cable
• Connector on First End: Bare Wire
• Connector on Second End: Bare Wire
• Device Supported: Fire Alarm
• Material: Polyvinyl Chloride (PVC) - Jacket
• Cable Length: 1000 ft
• Number of Conductors: 4
• American Wire Gauge: 18AWG
• Cable Rating: Riser
• Conductor Count: 4
• Conductor Material: Bare Copper
• Jacket Material: PVC
• TAA Compliant: Yes
• Insulation Material: PP

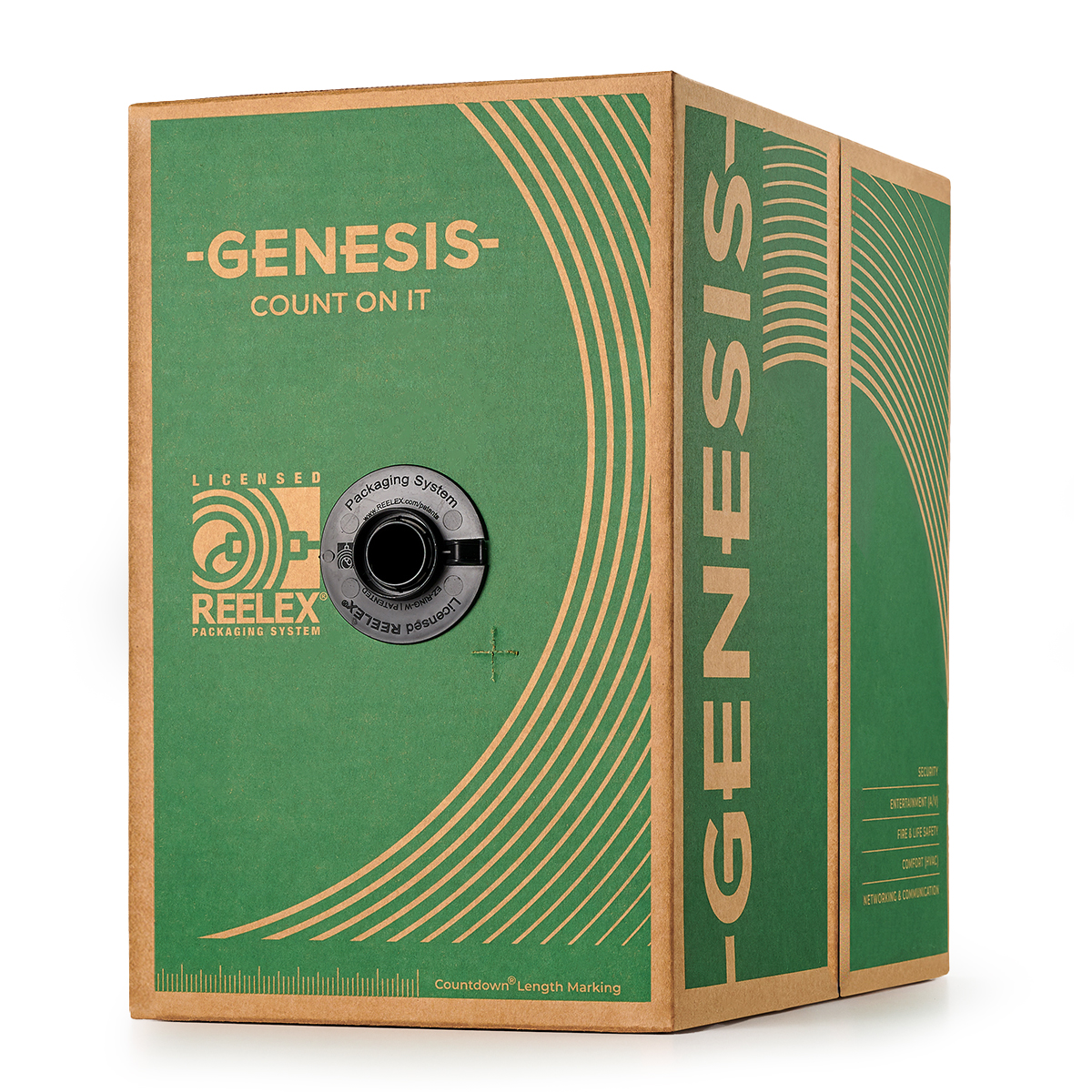

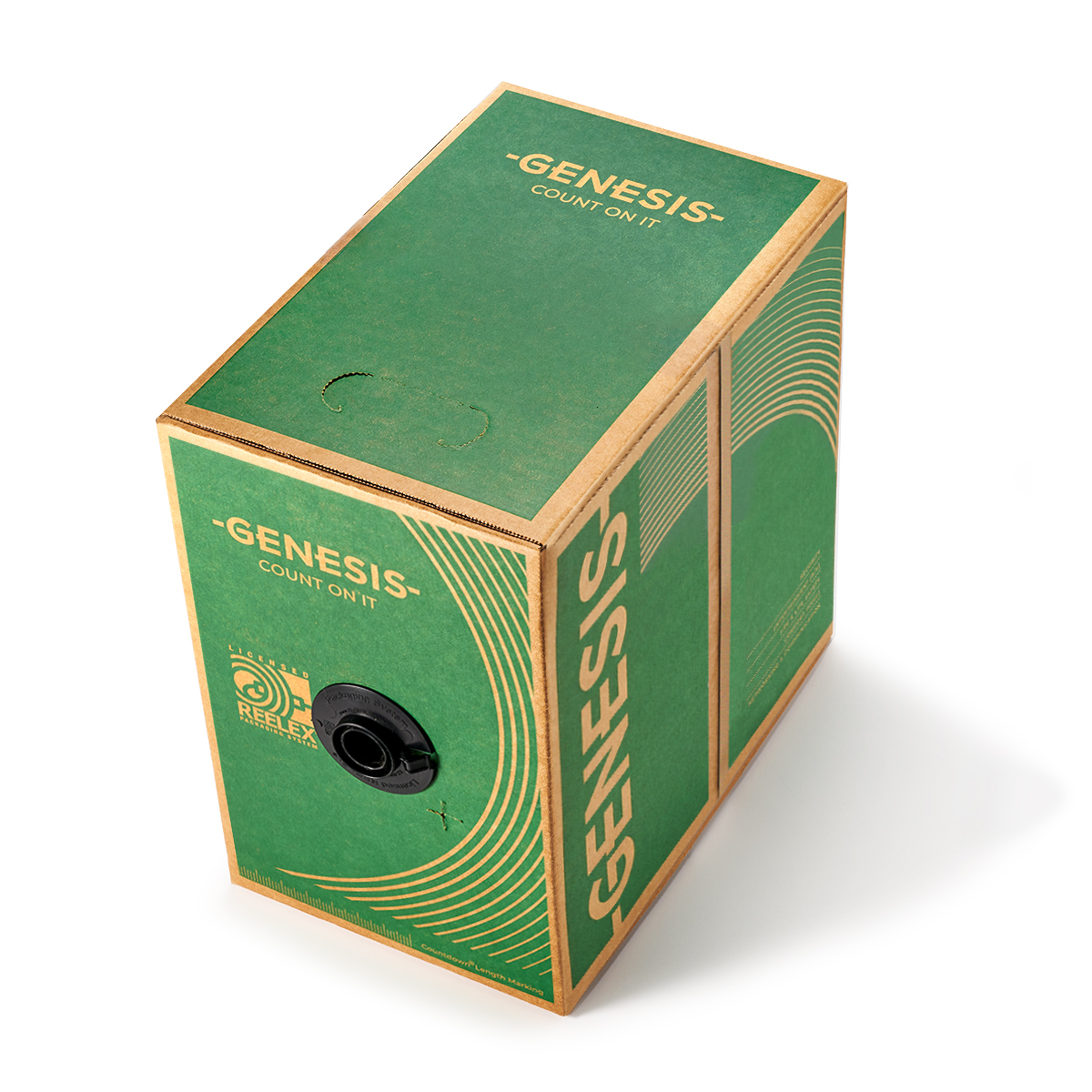

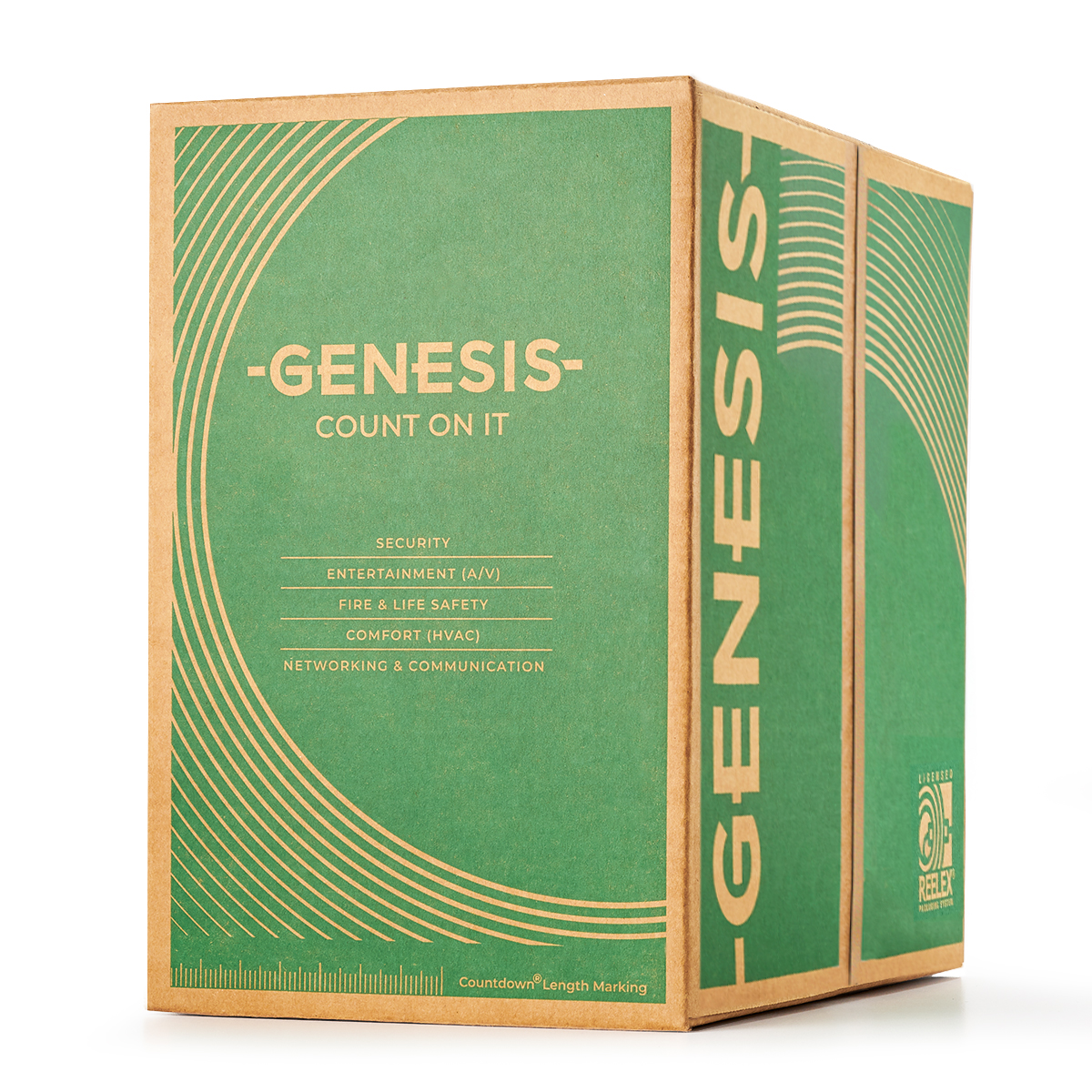

• Package Type: REELEX Pull Box
• Environmental Certification: RoHS
• Indoor/Outdoor: Indoor
