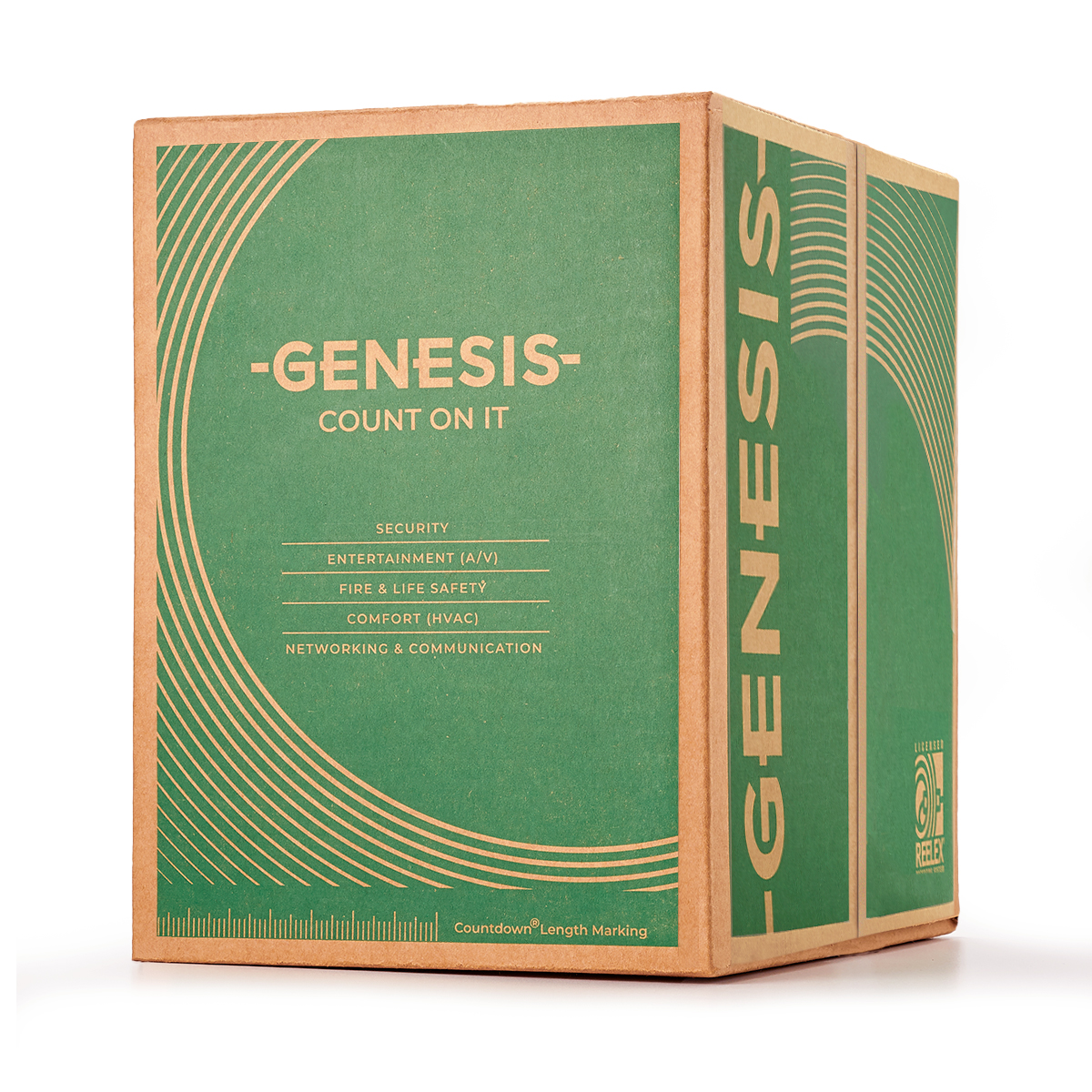

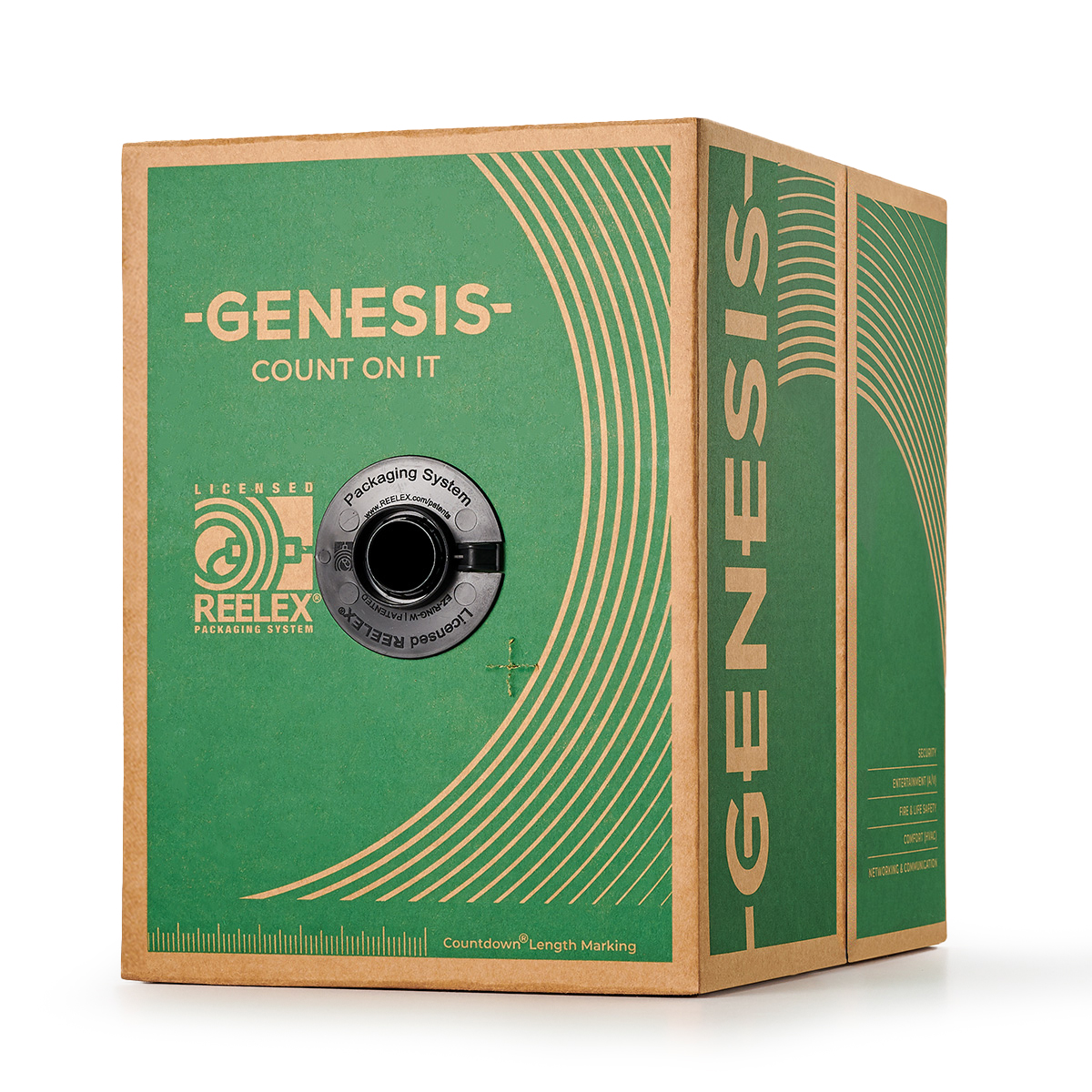

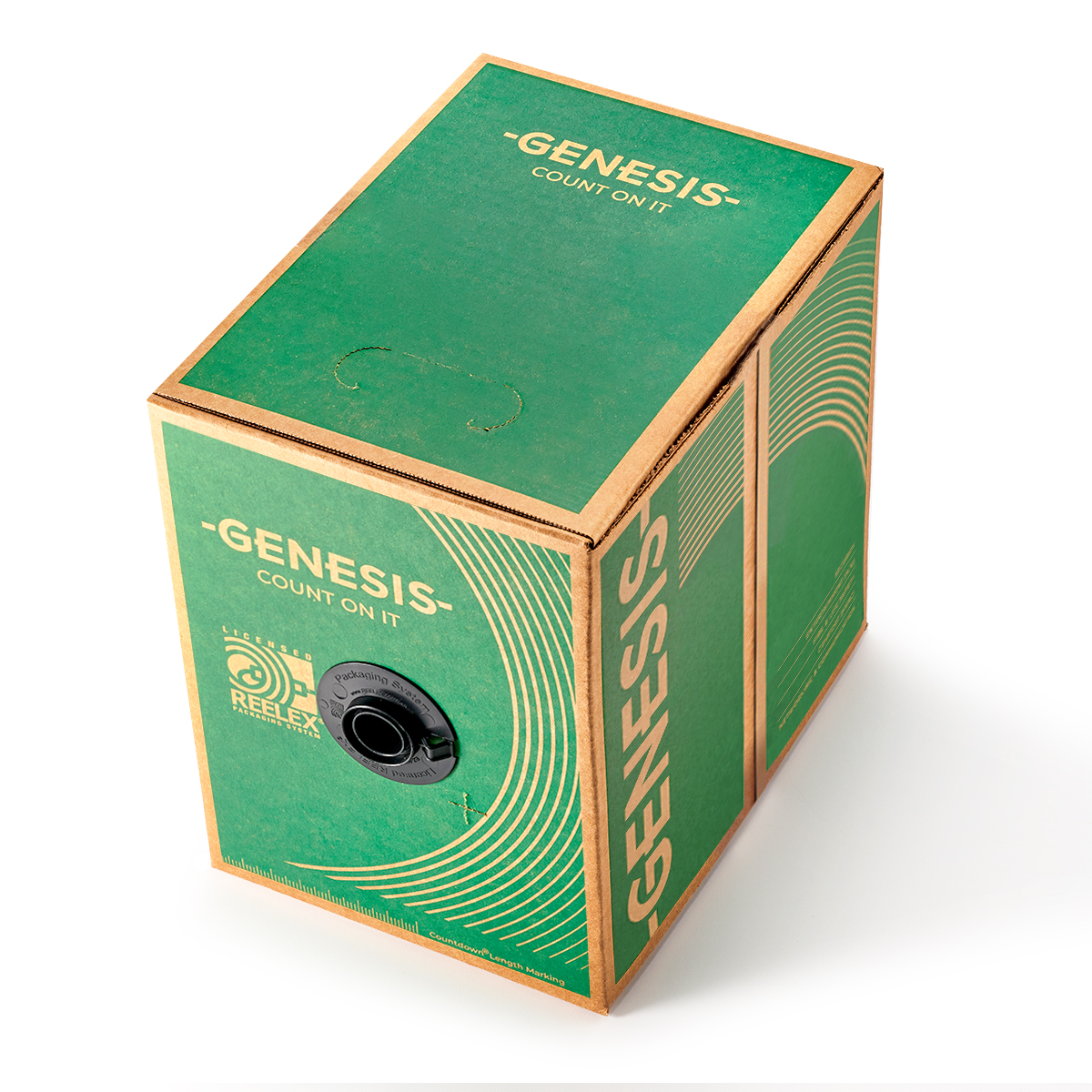

Genesis Cable 43061104 18/2 Solid Unshielded Cable 1000 feet/Box

Product Description

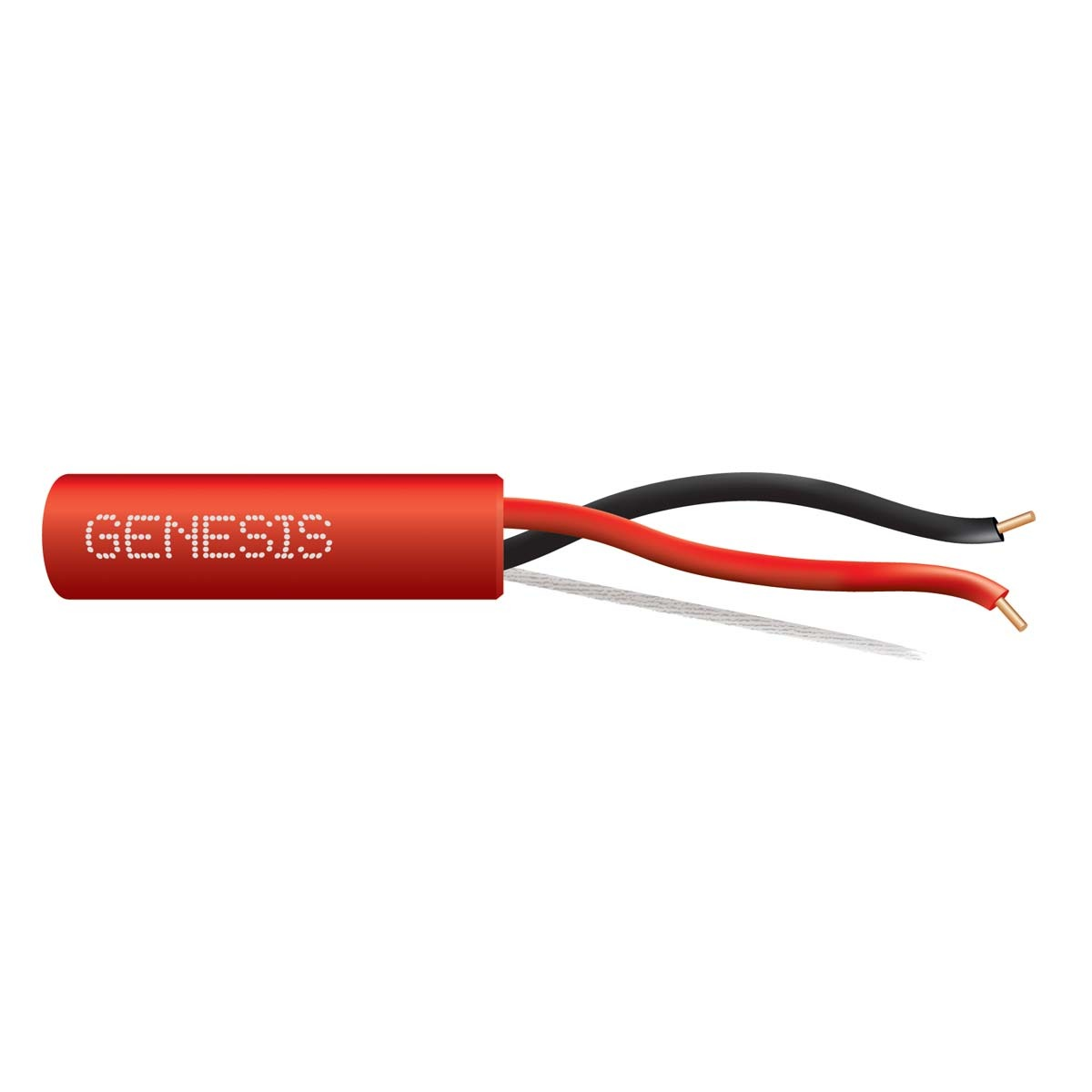

The Genesis Cable 43061104 is an 18 AWG, 2 conductor solid unshielded cable with a length of 1000 feet. This cable is suitable for fire safety and security equipment. It features a PVC jacket and polypropylene insulation and is rated for 300 Volts and for temperatures from -20 °C to 75 °C.

• Bare copper conductors for excellent conductivity and low voltage drop
• Durable rip cord for efficient jacket stripping and removal
• Complies with UL Standards 13 & 1424; NEC Articles 725 & 760

Product Highlights

18 AWG, 2 conductor solid unshielded cable with a PVC jacket and polypropylene insulation.

Product Information

Standard Information

• Brand: Genesis Cable
• Manufacturer Part Number: 43061104
• Country of Origin: United States

Technical Specifications

• Brand: Genesis Cable
• Manufacturer: Genesis Cable
• Model / MPN: 43061104
• Product Type: ELECTRONIC_CABLE
• Size (AWG or kcmil): 18 AWG
• No. of Conductors: 2
• Stranding: Solid
• Shielding: Unshielded
• Nominal Total Weight (lbs/1000'): 14
• Flame Rating: UL 1666 (Riser), C(UL) FT4
• DC Resistance: 6.5 Ohms/M' at 20C
• Impedance: 75 Ohms nom.
• Capacitance: 21 pf/ft nom.
• Operating Voltage: 300 Volts max.
• Temperature Rating: -20 to 75o
• Jacket Type: PVC
• Insulation Type: Polypropylene
• Conductor: 18 AWG Solid Bare Copper
• Jacket Diameter: 0.136" nom.
• Jacket Thickness: 0.015" nom.
• Insulation Lay Length: 1.75" nom.
• Insulation Thickness: 0.006" nom.
• Insulation Diameter: 0.052" nom.
