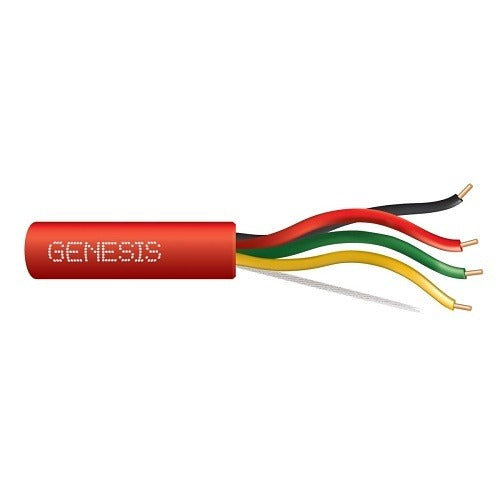

Genesis Cable 43011104 Fire Alarm Cable 22AWG 4C Fplr 1000ft Red

Product Description

The GENESIS CABLE 43011104 is a 22 AWG, 4-conductor solid-conductor fire alarm cable rated FPLR (Riser) and sold in a 1,000-foot pull box. FPLR-rated cable meets UL listing requirements for riser applications, meaning it is listed for use in vertical runs between floors in non-plenum spaces. The solid conductor construction supports reliable continuity in low-voltage fire alarm and initiating device circuits. The red jacket provides the color-coding standard to fire protection wiring. This cable is installed by licensed fire alarm technicians and low-voltage electricians working within NFPA 72 and NEC Article 760 guidelines.

This cable is suited for residential and commercial fire alarm systems. Typical applications include wiring smoke detectors, heat detectors, pull stations, and notification appliances back to a fire alarm control panel. The unshielded construction is appropriate for conventional and addressable circuits in riser pathways where EMI shielding is not required. The 1,000-foot box format supports larger installations without frequent splice points.

Key Features

• 22 AWG solid conductors for low-voltage fire alarm circuit wiring
• 4-conductor configuration supports multi-wire initiating or notification runs
• FPLR rating listed for riser use per NEC Article 760
• Red PVC jacket meets standard color identification for fire alarm wiring
• Unshielded construction suitable for conventional and addressable fire alarm circuits
• 1,000-foot pull box reduces waste and speeds installation on larger jobs

Compatibility

Designed as a standard FPLR-rated riser fire alarm cable suitable for use with conventional and addressable fire alarm control panels in residential and commercial riser applications where unshielded 22 AWG 4-conductor cable is specified.

Installation Notes

Installation must be performed by a licensed fire alarm technician or qualified low-voltage electrician in compliance with NFPA 72 and NEC Article 760. De-energize the fire alarm control panel and follow lockout procedures before making any circuit connections. Riser-rated cable must be installed in vertical runs between floors in accordance with local building and fire codes. Do not substitute FPLR-rated cable in plenum air-handling spaces, where FPLP-rated cable is required.
