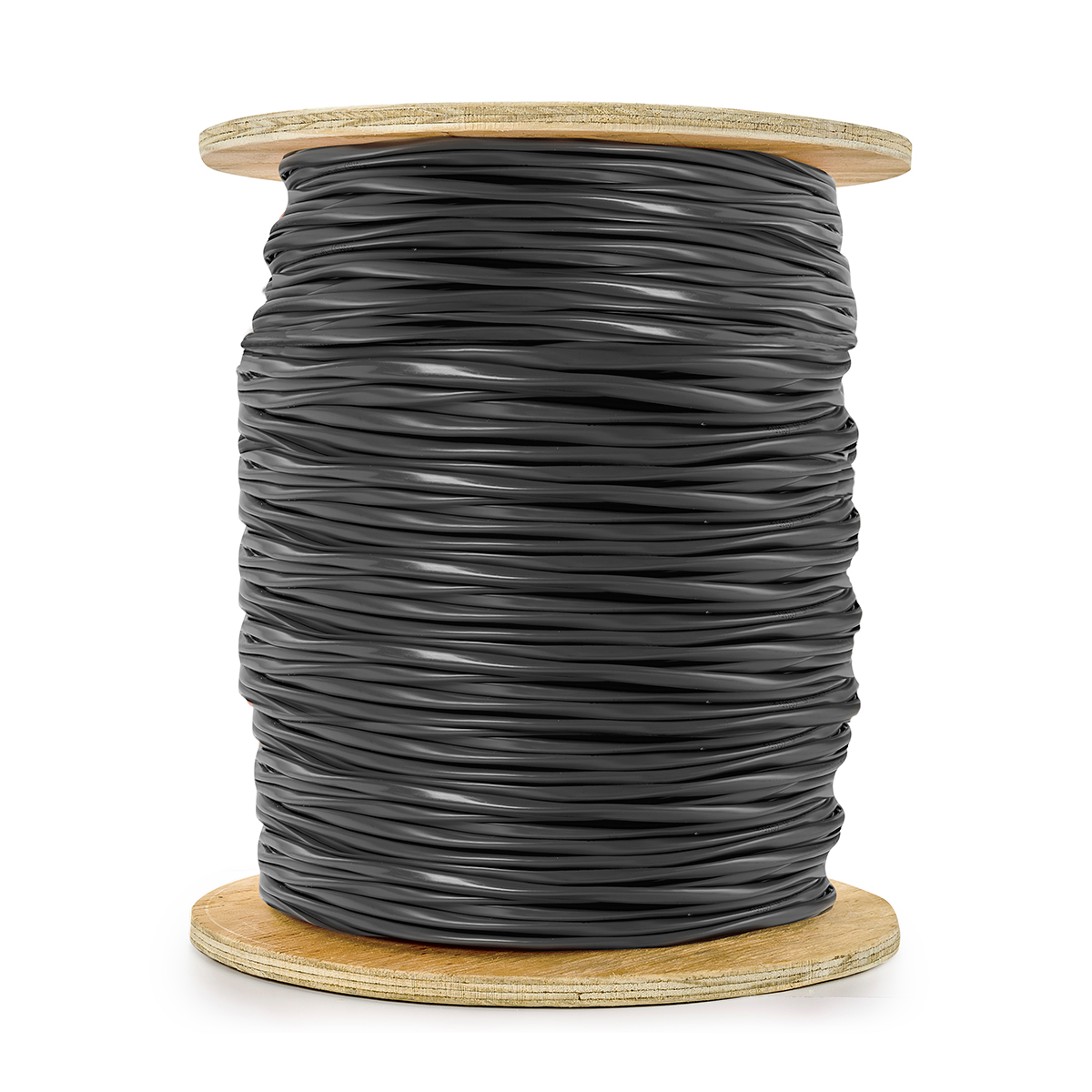

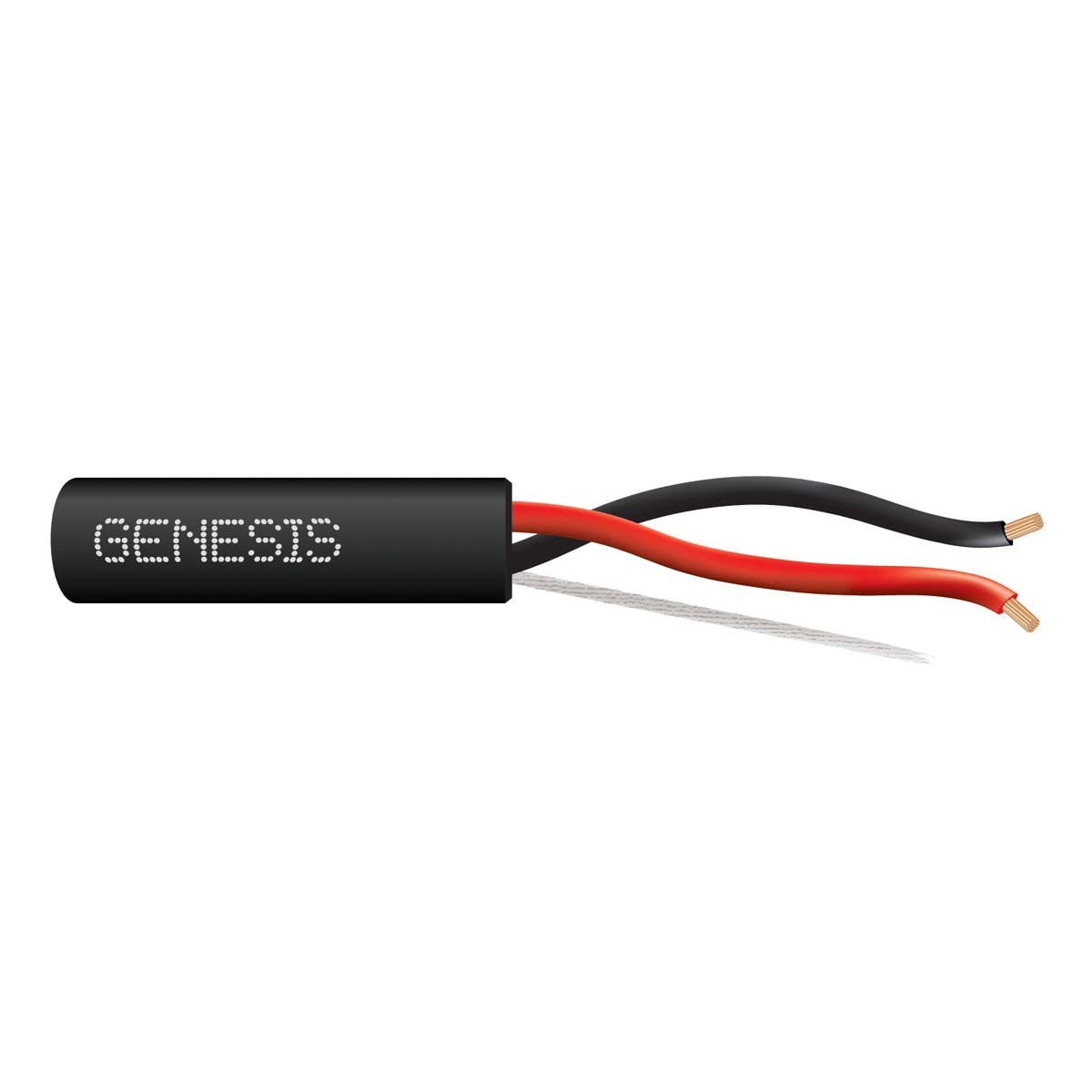

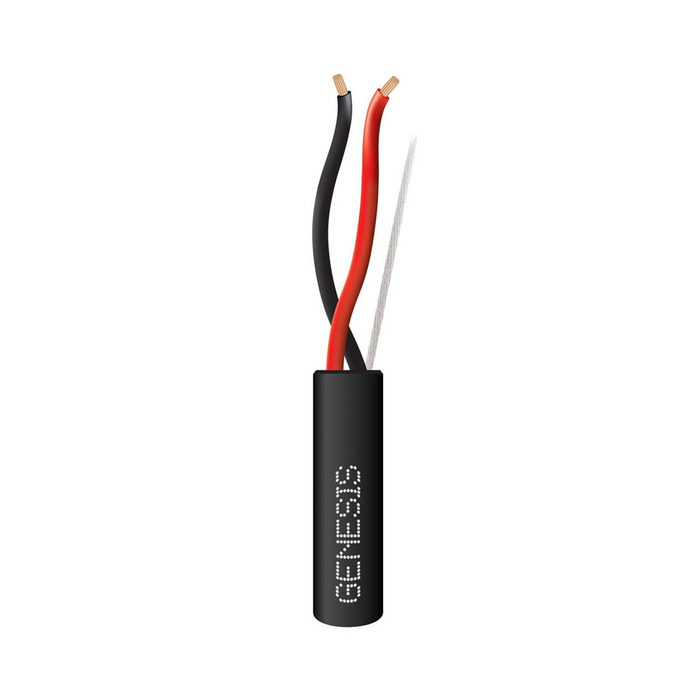

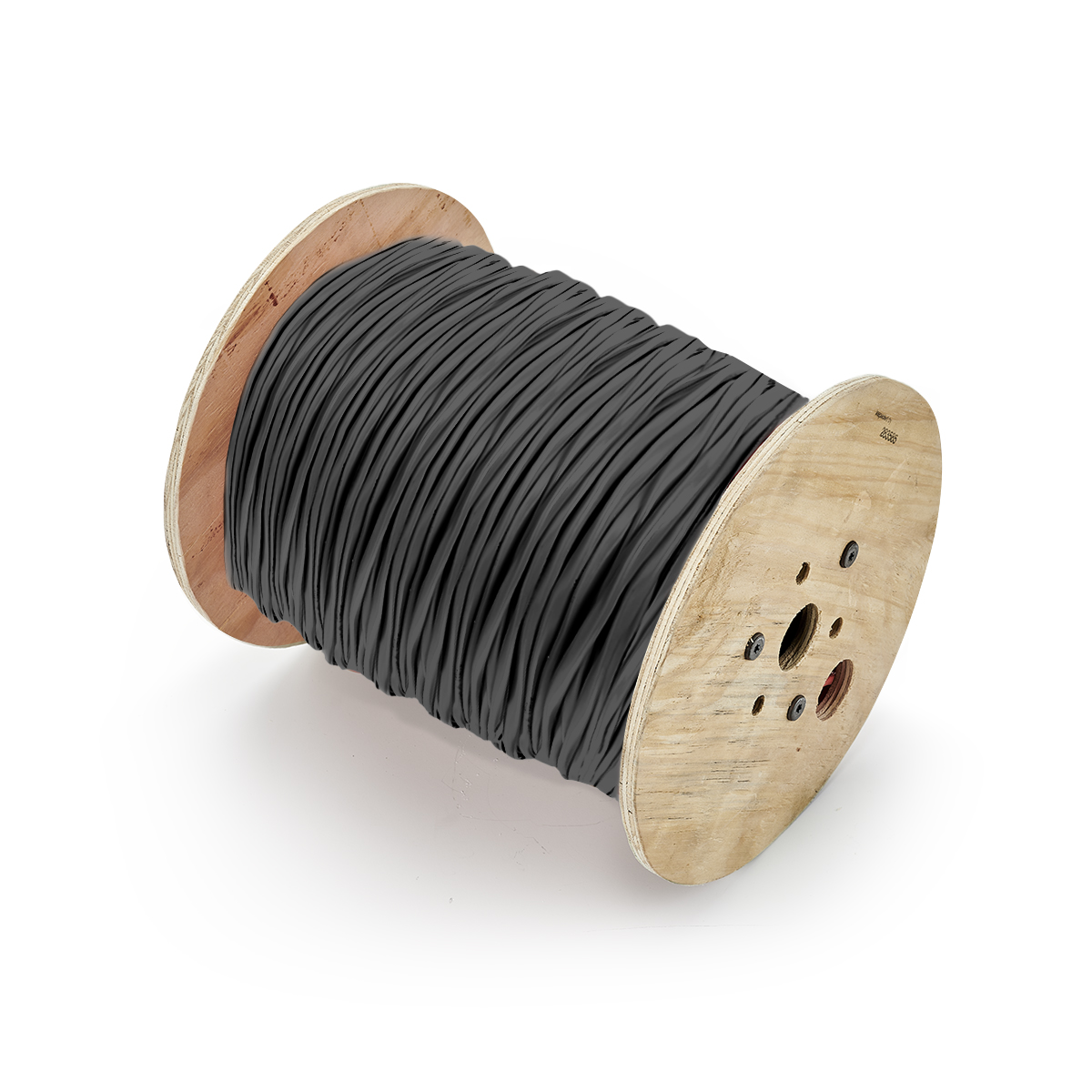

Genesis Cable 41515008 Fire Alarm Cable 500 Reel

Product Description

The Genesis Cable 41515008 is a fire alarm cable suitable for direct burial applications. It features 16 AWG 2 stranded conductors and is designed for dependable fire alarm system wiring. This cable can be installed in metal raceways or solid bottom metal cable trays with solid metal covers. Rated for 300 Volts and -20 °C to 75 °C.

• Bare Copper conductors for excellent conductivity and low voltage drop.
• SRPVC insulation and PVC jacket.
• Durable rip cord for efficient jacket stripping and removal.

Product Highlights

Direct burial rated fire alarm cable with stranded copper conductors, suitable for a variety of installation methods.

Product Information

Standard Information

• Brand: Genesis Cable
• Manufacturer Part Number: 41515008

Technical Specifications

• Size (AWG or kcmil): 16 AWG
• No. of Conductors: 2
• Stranding: Stranded
• Shielding: Unshielded
• Nominal Total Weight (lbs/1000'): 44
• Nominal Total Weight (kgs/km): 65
• Product Type: 16/2 Wire
• Length: 500Ft.
