Genesis Cable 32225012 Multiconductor Shielded Cable 16 AWG 4/C 500 FT

Product Description

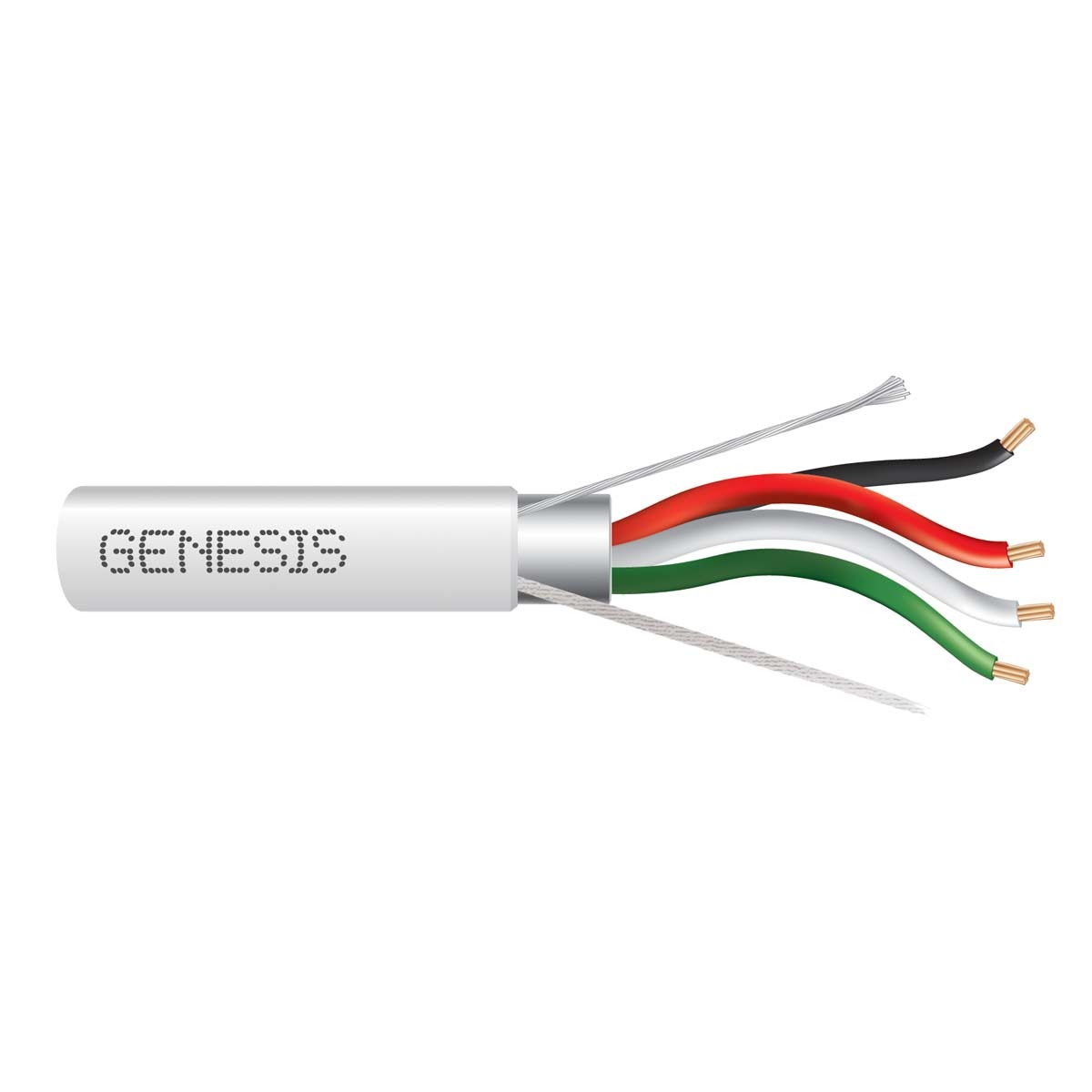

The Genesis Cable 32225012 Plenum Rated Shielded Multiconductor Cable is suitable for installation in fabricated ducts, environmental air spaces, risers, and within buildings. This cable features bare copper conductors, Low-Smoke PVC insulation and a foil shield over all conductors. It is rated for 300 Volts and -20 °C to 75 °C.

• Bare Copper conductors for excellent conductivity and low voltage drop.
• Low-Smoke PVC insulation.
• Foil shield over all conductors.

Product Highlights

This shielded multiconductor cable minimizes electrical noise and interference to protect sensitive signals in security, controls, audio, and other low-voltage applications.

Product Information

Standard Information

• Brand: Genesis Cable
• Manufacturer Part Number: 32225012
• Country of Origin: US

Technical Specifications

• Size (AWG or kcmil): 16 AWG
• Size (mm2): 16 AWG
• No. of Conductors: 4
• Stranding: Stranded
• Shielding: Shielded
• Nominal Total Weight (lbs/1000'): 45
• Nominal Total Weight (kgs/km): 67
• Brand Name: Genesis
• Manufacturer: Genesis Cable
• Manufacturer Part Number: 32225012
• Packaged Quantity: 1
• Product Model: 32225012
• Product Type: Security & Control Cables
• American Wire Gauge: 16AWG
• Armored: No
• Cable Rating: Plenum
• Conductor Material: Bare Copper
• Core/Cladding Diameter: 16/4
• Jacket Material: LS-PVC
• Jacket Type: Plenum
• Number of Conductors: 4
• Solid or Stranded: Stranded
• TAA Compliant: Yes
• Cable Length: 500'
• Insulation Material: LS-PVC

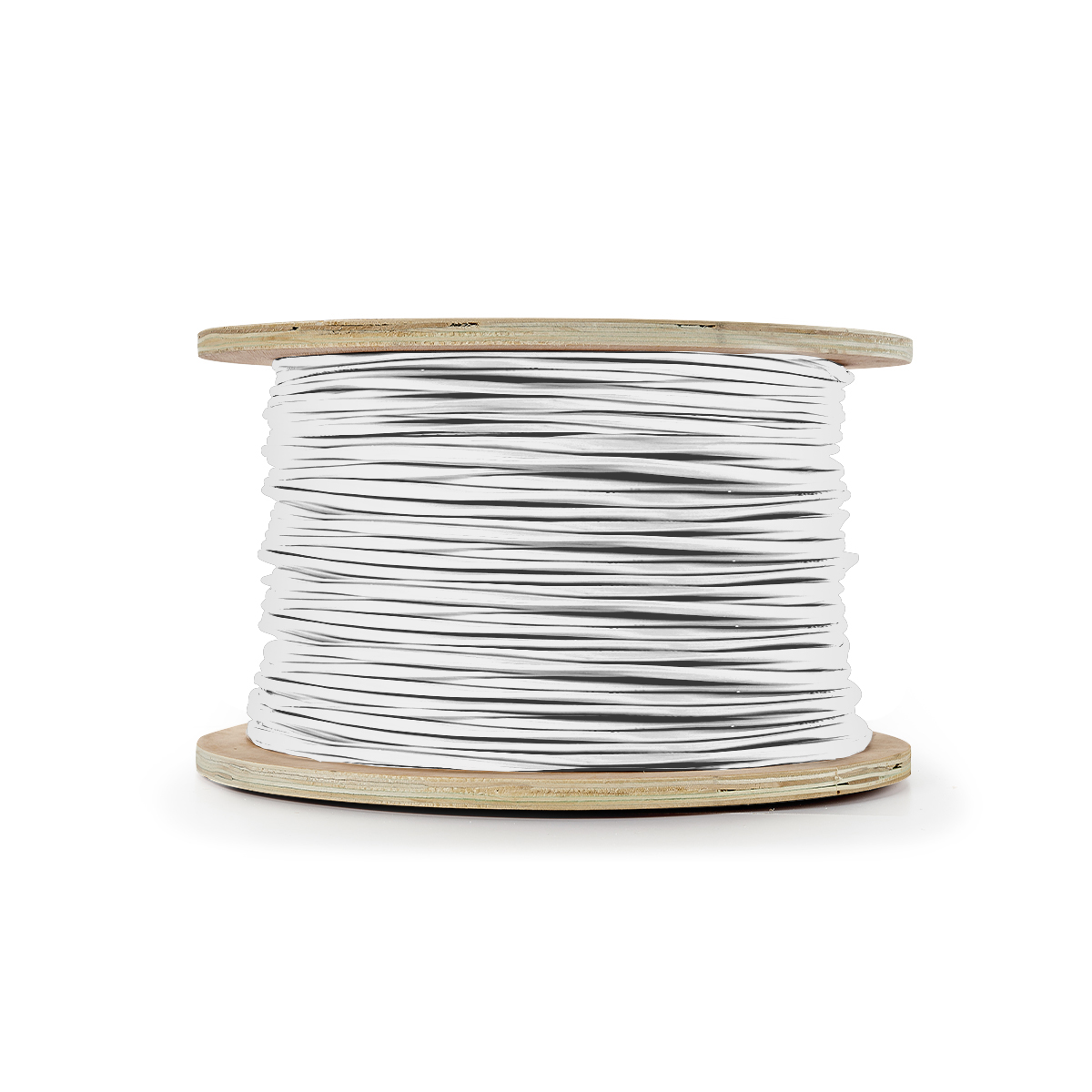

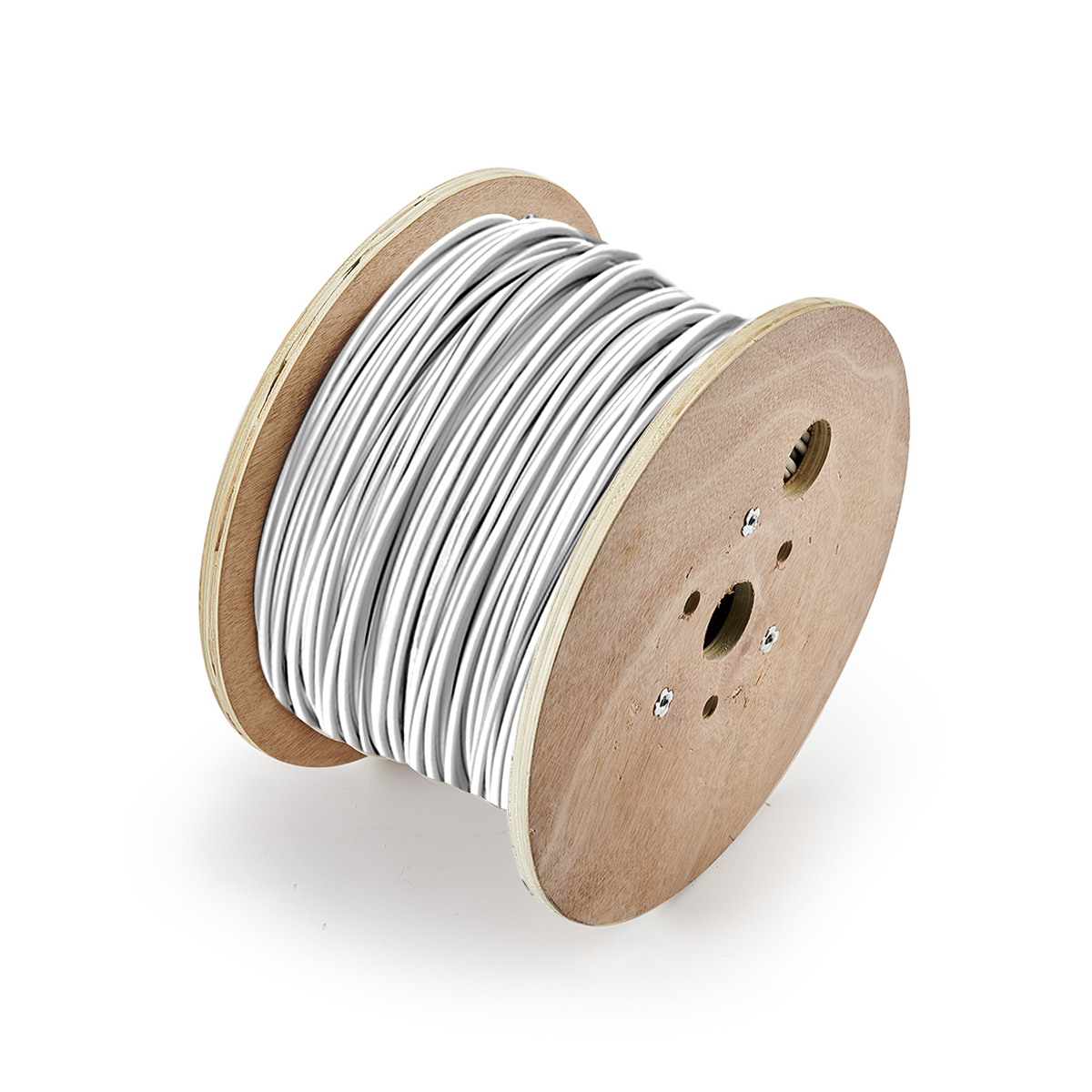

• Package Type: Reel/Spool
• Limited Warranty: 1-Year
• Environmental Certification: RoHS
• Indoor/Outdoor: Indoor
• Length: 500Ft.
• Device Supported: Burglar Alarm, Intercom, Speaker
• Connector on Second End: Bare Wire
• Connector on First End: Bare Wire
• Cable Length (mm): 152400
• Conductors: 16 AWG stranded bare copper
• Shield: Overall foil shield
• Jacket: Plenum-rated (CL3P, FPLP, CMP, FT6)
