Genesis Cable 22165509 multiconductor shielded cable, riser

Product Description

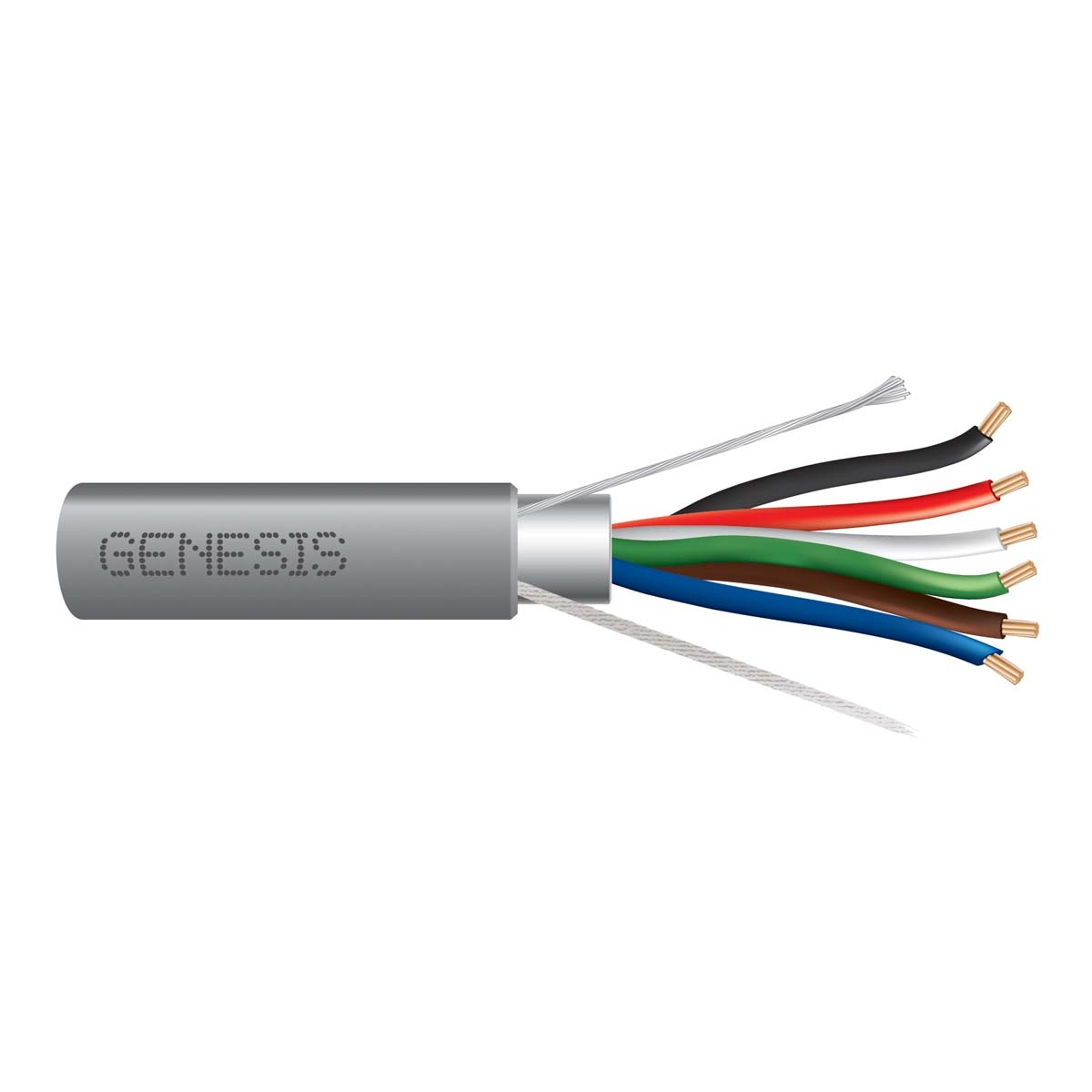

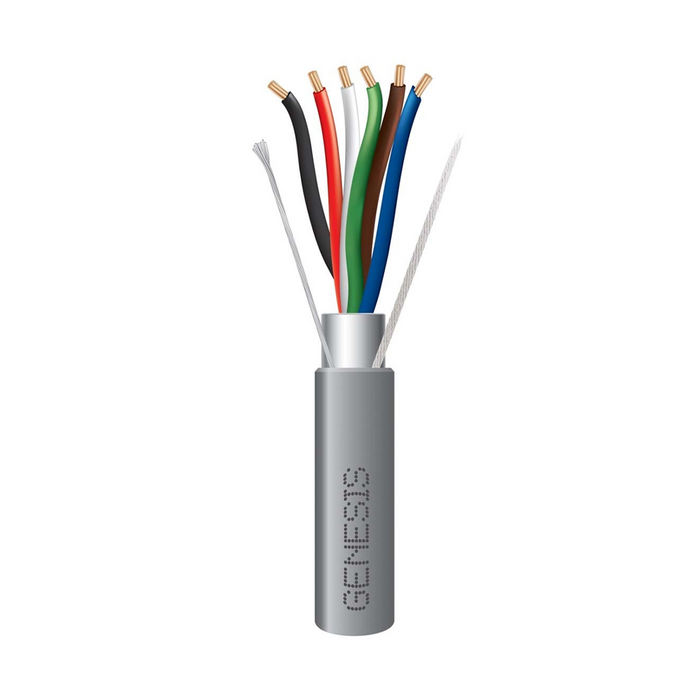

The Genesis Cable 22165509 Riser Rated Shielded Multiconductor Cable is suitable for installation in metal raceways, solid bottom metal cable trays, and risers. Features bare copper conductors, polypropylene insulation, and a foil shield over all conductors. The PVC jacket includes a durable rip cord and Countdown Length Markings.

• Bare Copper conductors for excellent conductivity and low voltage drop.
• Polypropylene insulation.
• Foil shield over all conductors.

Product Highlights

Shielded multiconductor cable with bare copper conductors, polypropylene insulation, and a PVC jacket. Features a rip cord and length markings. Rated for 300 Volts and -20 °C to 75 °C.

Product Information

Standard Information

• Brand: Genesis Cable
• Manufacturer Part Number: 22165509
• Country of Origin: US

Technical Specifications

• Size (AWG or kcmil): 18 AWG
• No. of Conductors: 6
• Stranding: Stranded
• Shielding: Shielded
• Nominal Total Weight (lbs/1000'): 42
• ADI Part Number: WG-22165509
• Brand Name: Genesis
• Manufacturer: Genesis Cable
• Manufacturer Part Number: 22165509
• Packaged Quantity: 1
• Product Model: 22165509
• Product Name: 22165509 - 18 AWG 6C STR Shielded Riser, Gray, 500 FT. Pull Box
• Product Type: Security & Control Cables
• American Wire Gauge: 18AWG
• Armored: No
• Cable Rating: Riser
• Conductor Material: Bare Copper
• Jacket Material: PVC
• Jacket Type: FT4, Riser
• Number of Conductors: 6
• Solid or Stranded: Stranded
• TAA Compliant: Yes
• Cable Length: 500'
• Insulation Material: PP

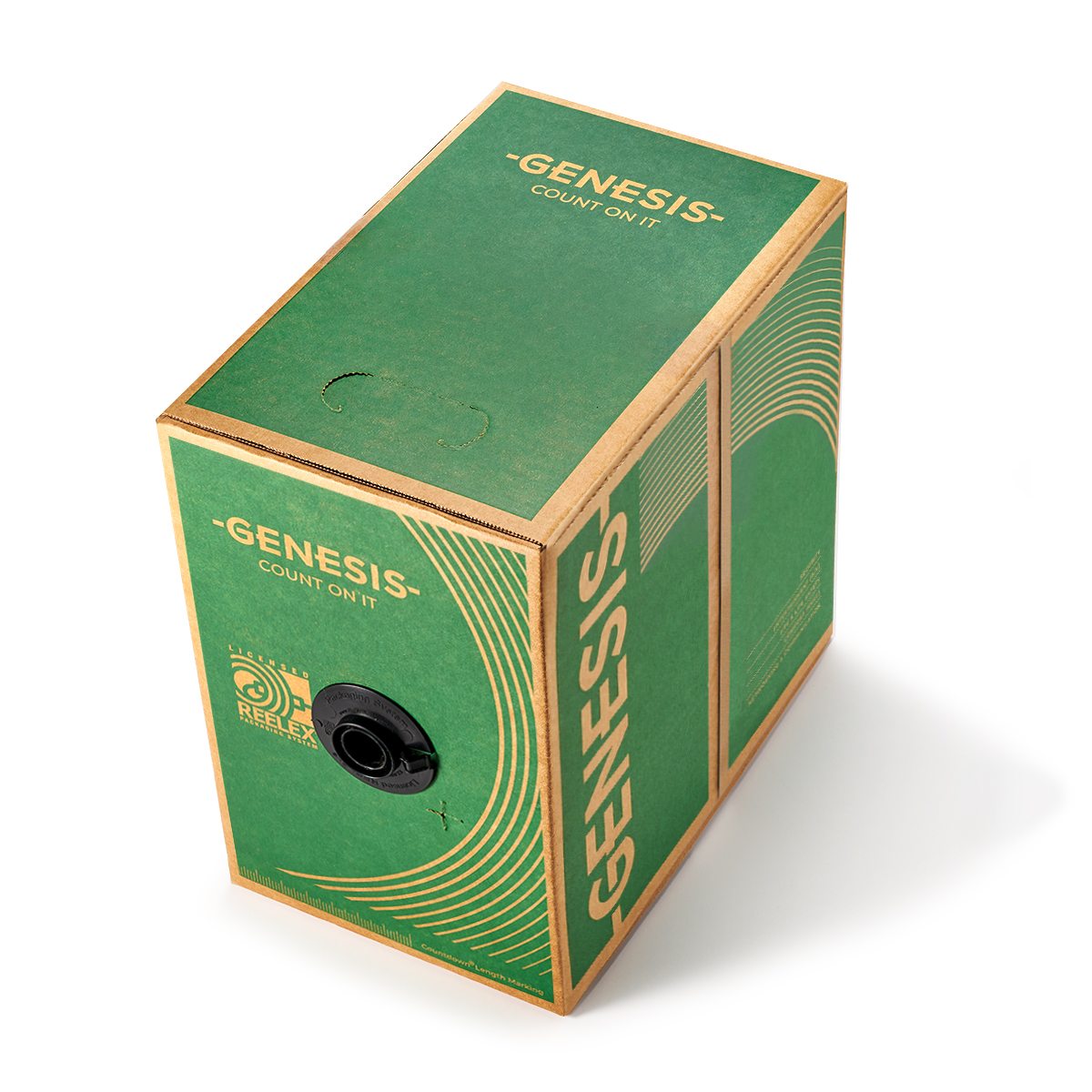

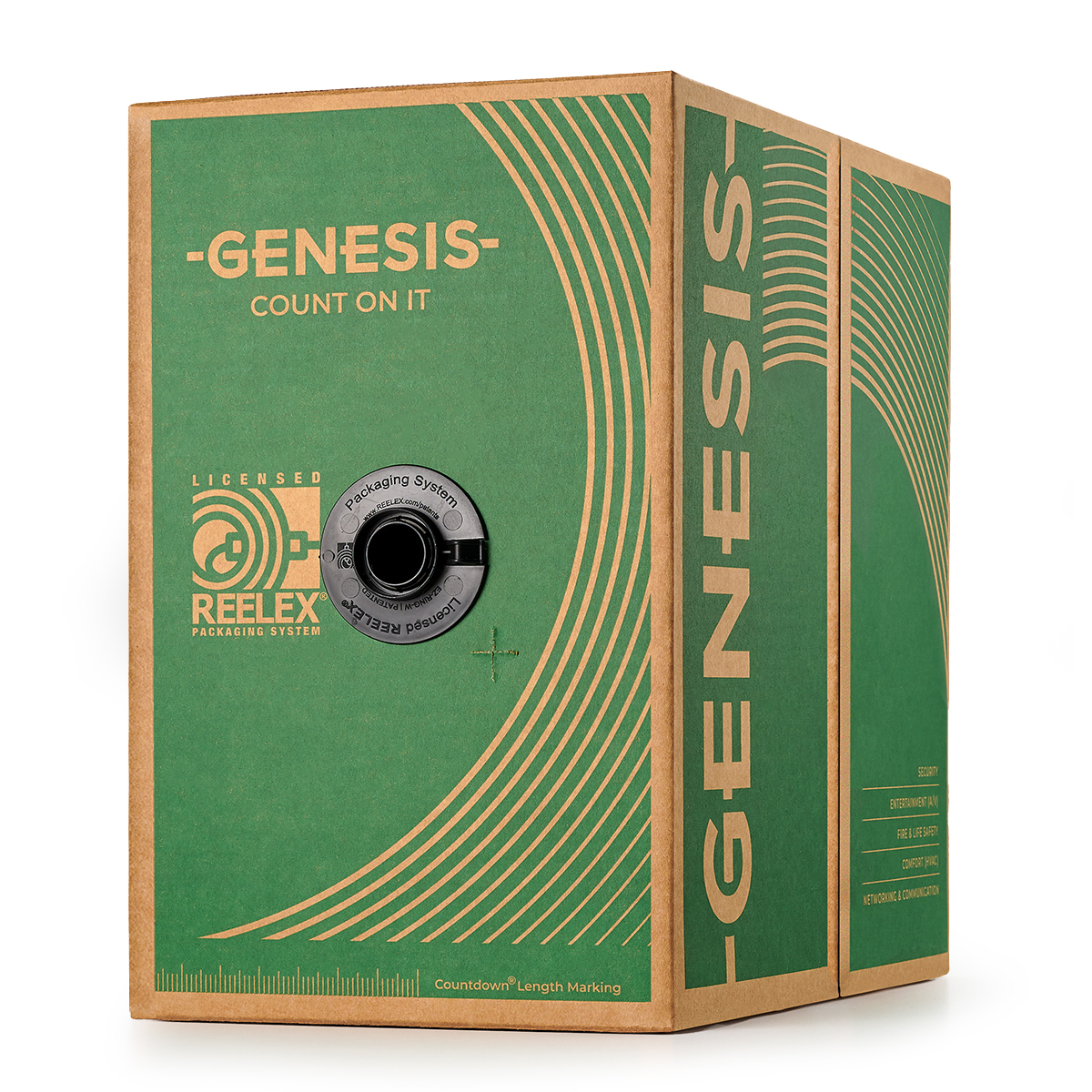

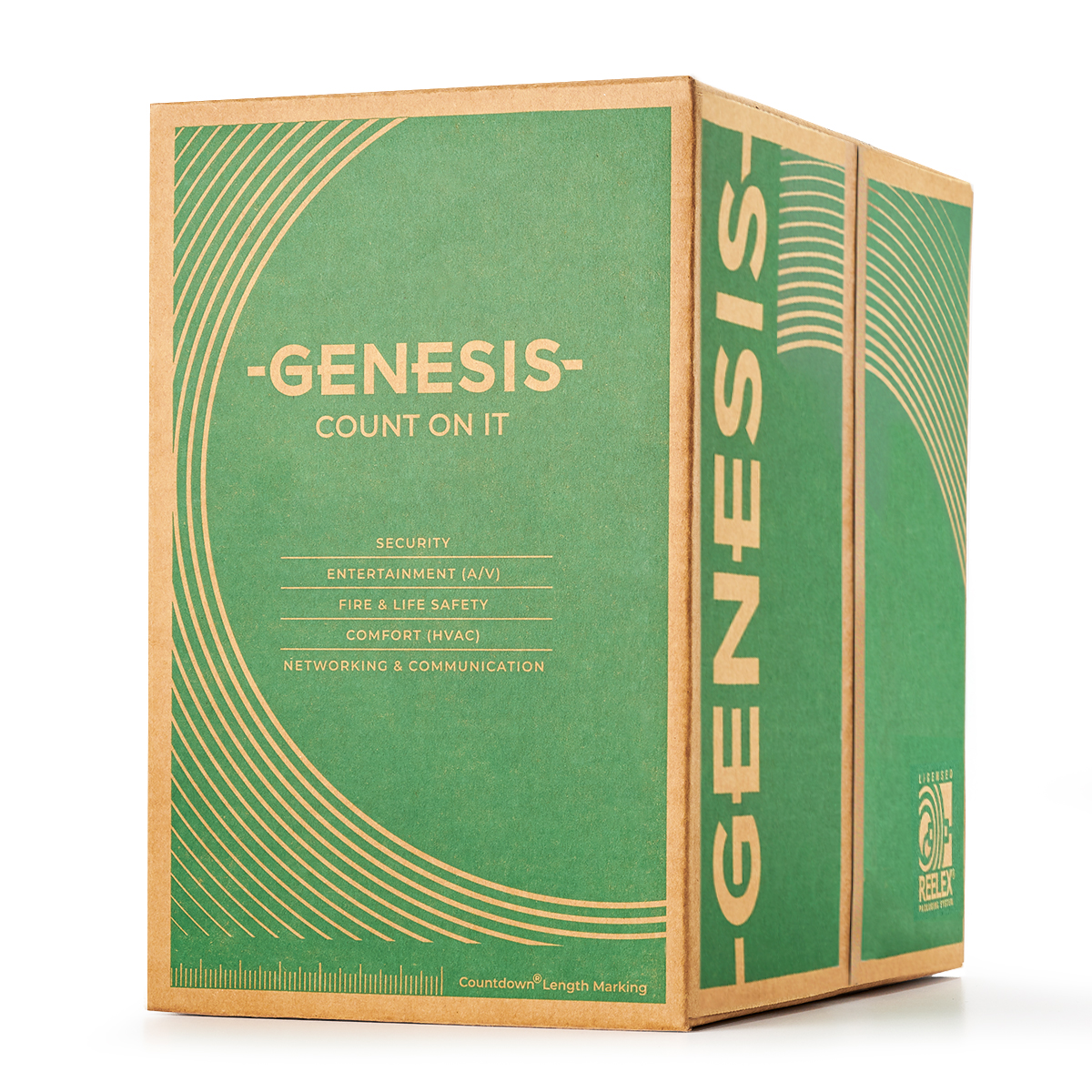

• Package Type: REELEX Pull Box
• Indoor/Outdoor: Indoor
• Voltage Rating: 300 Volts
• Temperature Rating: -20 °C to 75 °C
• Compliance: REACH/RoHS Compliant
