Genesis Cable 22161009 Multiconductor Shielded Cable 18-19 AWG 6/C 1000 FT

Product Description

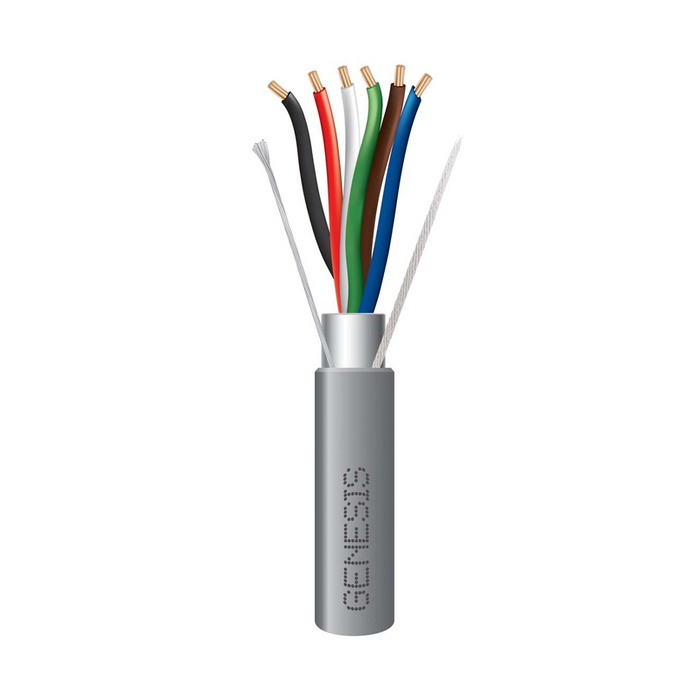

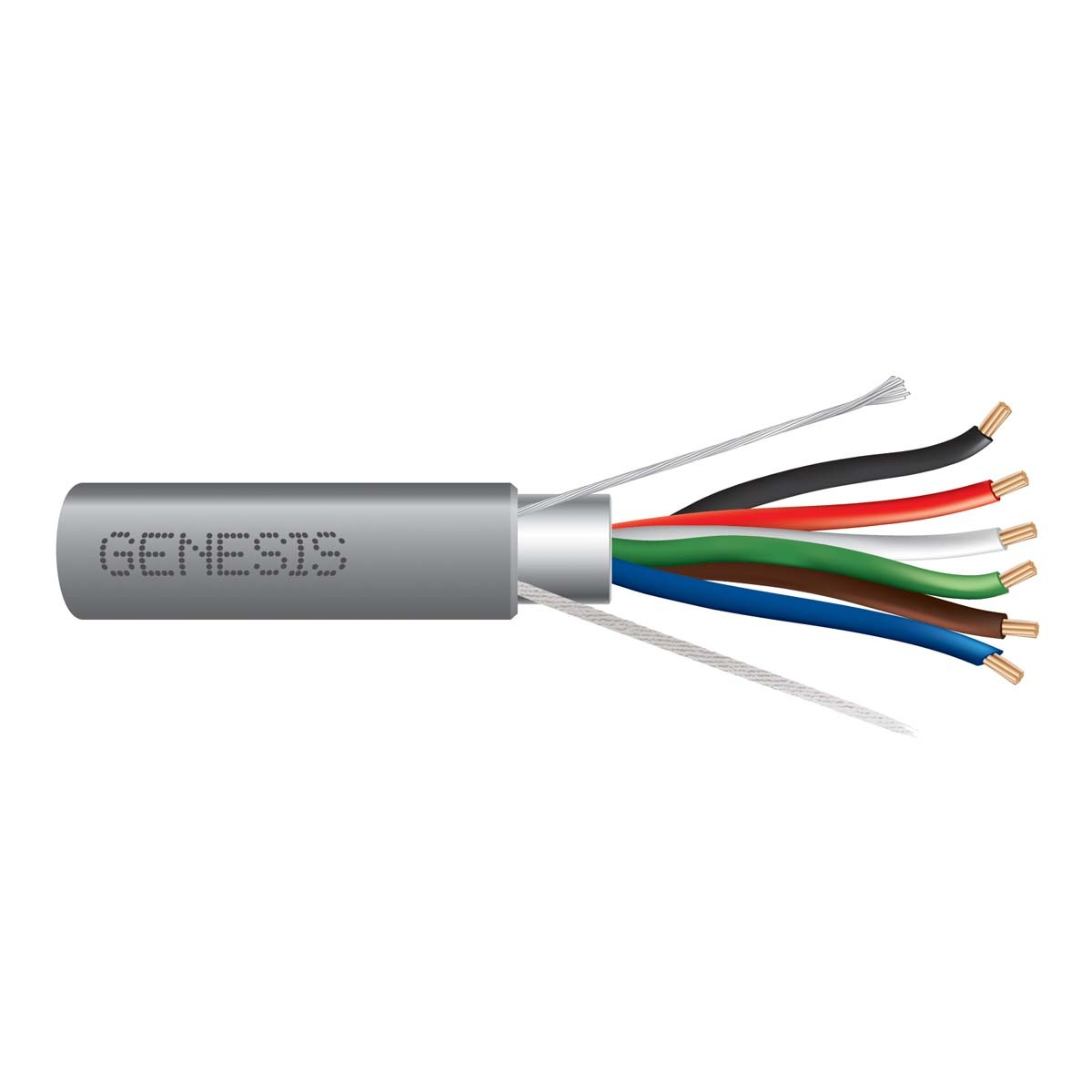

The Genesis Cable 22161009 is a riser-rated shielded multiconductor cable suitable for metal raceways, solid bottom metal cable trays, and risers. Features bare copper conductors, polypropylene insulation, and a foil shield over all conductors. Includes a PVC jacket and a durable rip cord for jacket stripping. Countdown length markings facilitate easy tracking of usage.

• Bare copper conductors ensure excellent conductivity.
• Foil shield protects conductors.
• Rated for 300 Volts and temperatures from -20°C to 75°C.

Product Highlights

Riser-rated shielded multiconductor cable with copper conductors, ideal for security, control, and alarm systems.

Product Information

Standard Information

• Brand: Genesis Cable
• Manufacturer Part Number: 22161009
• Country of Origin: United States

Technical Specifications

• Size (AWG or kcmil): 18 AWG
• No. of Conductors: 6
• Stranding: Stranded
• Shielding: Shielded
• Nominal Total Weight (lbs/1000'): 42
• Item model number: 22161009
• Sheath Color: Gray
• Brand: Genesis
• Wire Style: Stranded
• Conductor Material: Copper

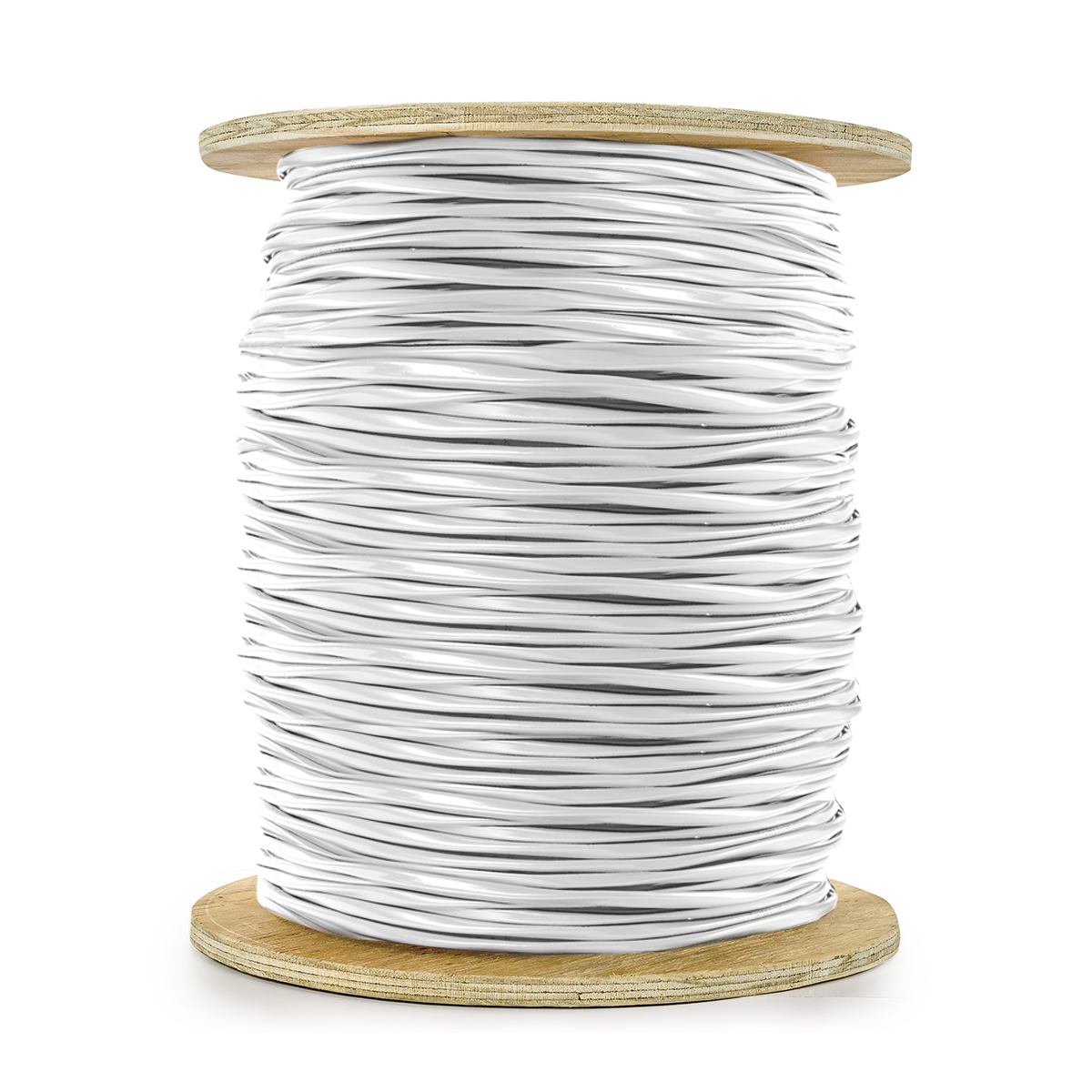

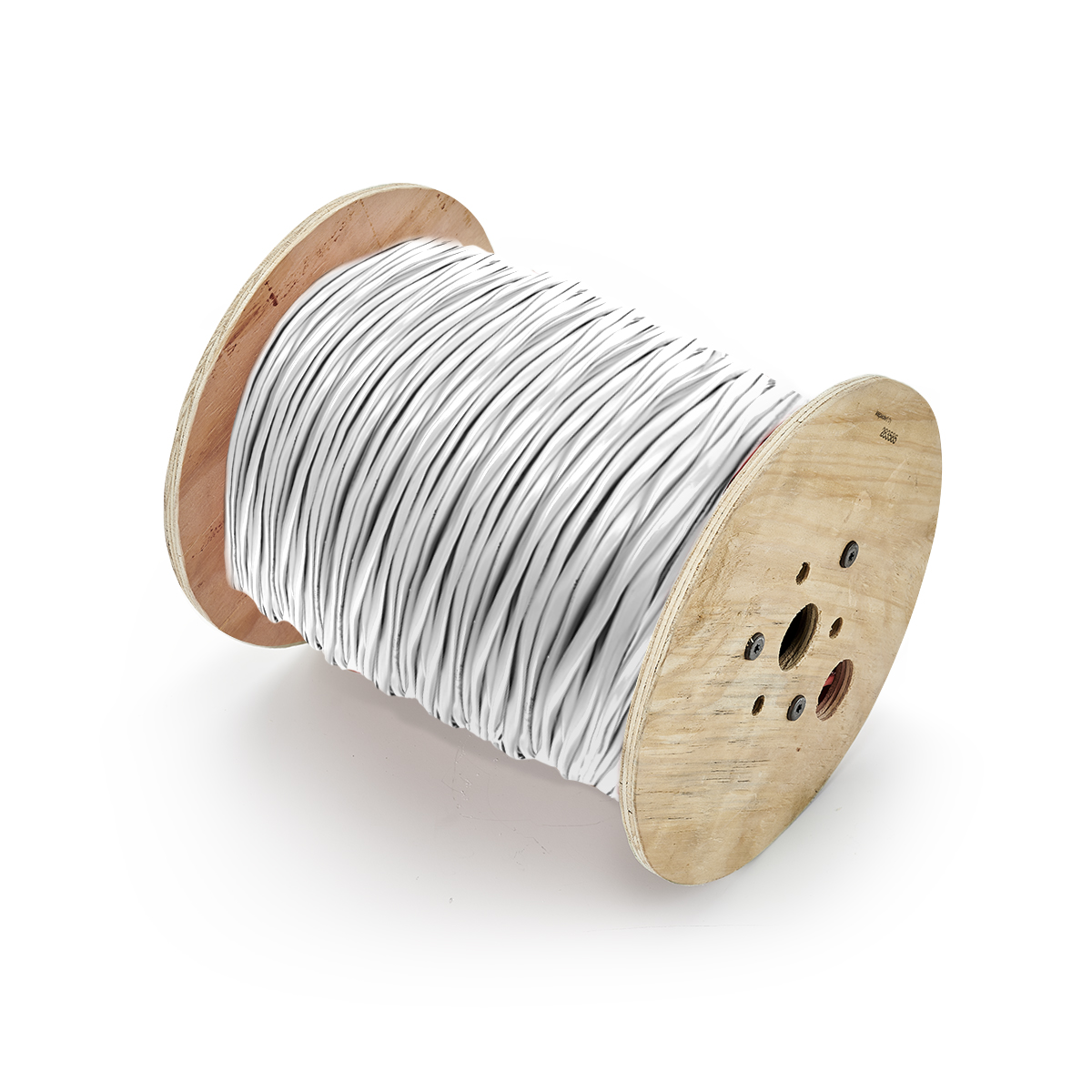

• Item Length: 1000 ft
• Application: Fire Alarm, Security
• Wire Gauge: 19-18 AWG (0.9-1 mm)
• Number of Conductors: 6 or More
• UPC: 619172021173
• Country of Origin: United States
