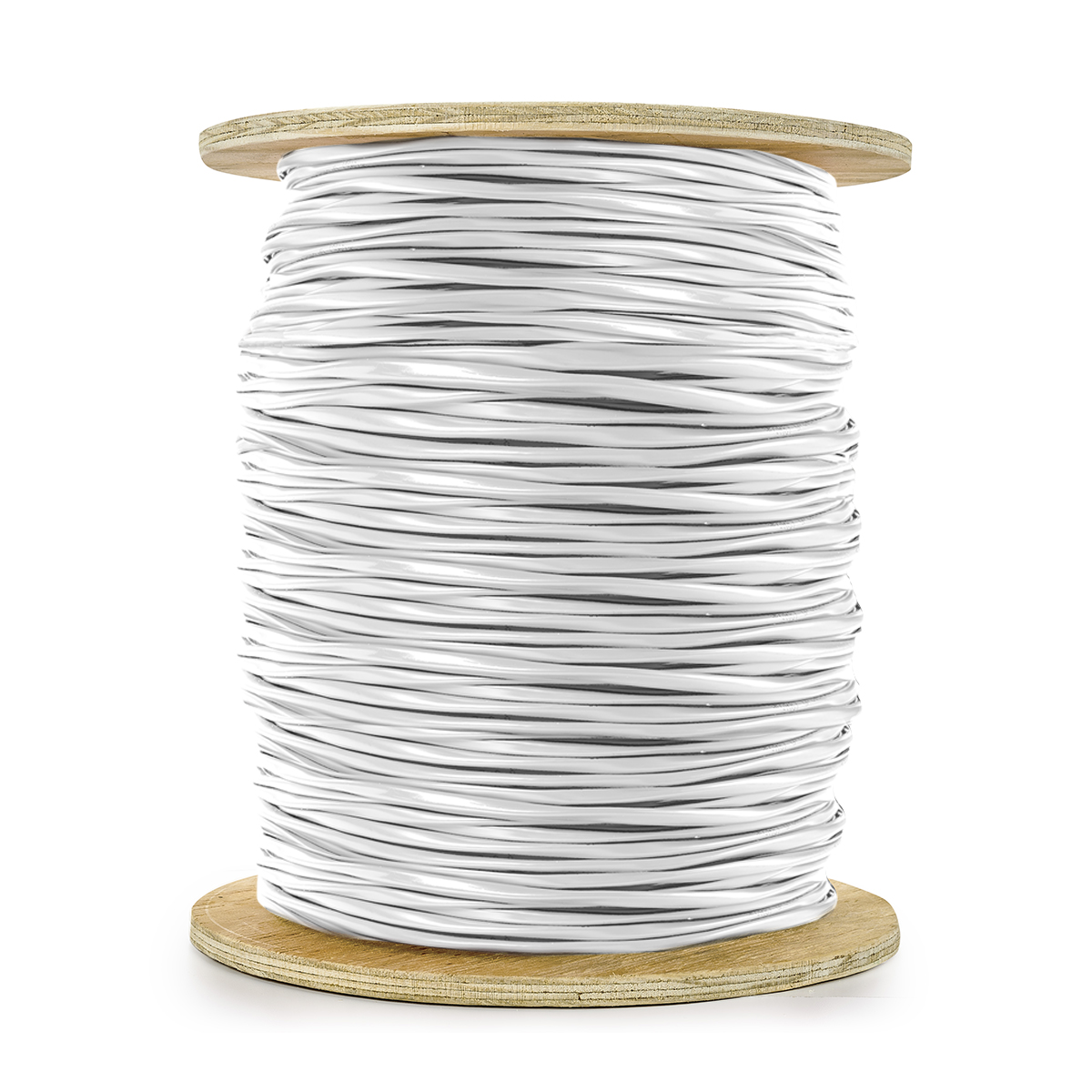

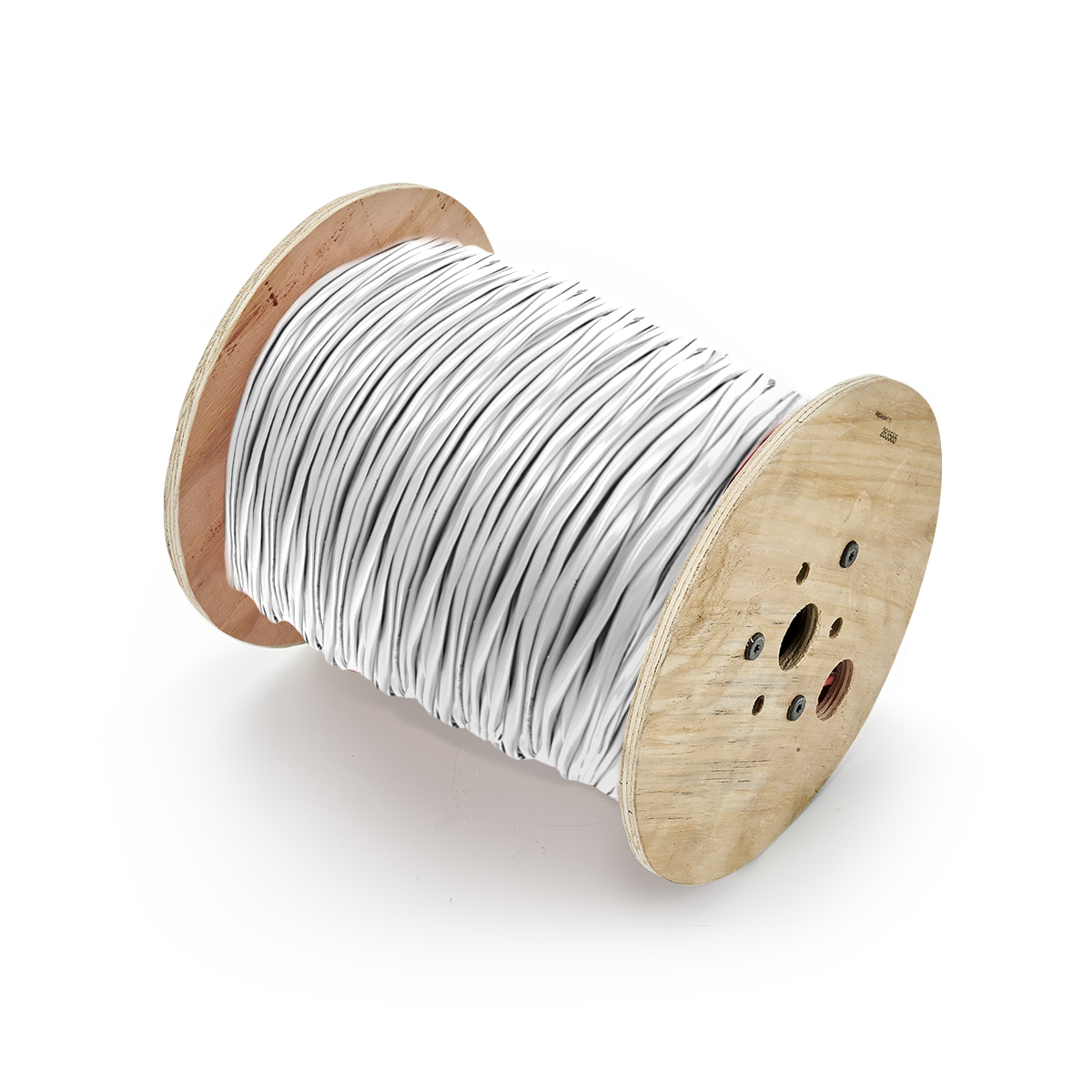

Genesis Cable 22161001 18/6 Stranded Shielded Cable, Riser, CMR, FT4, 1000 feet Reel

Product Description

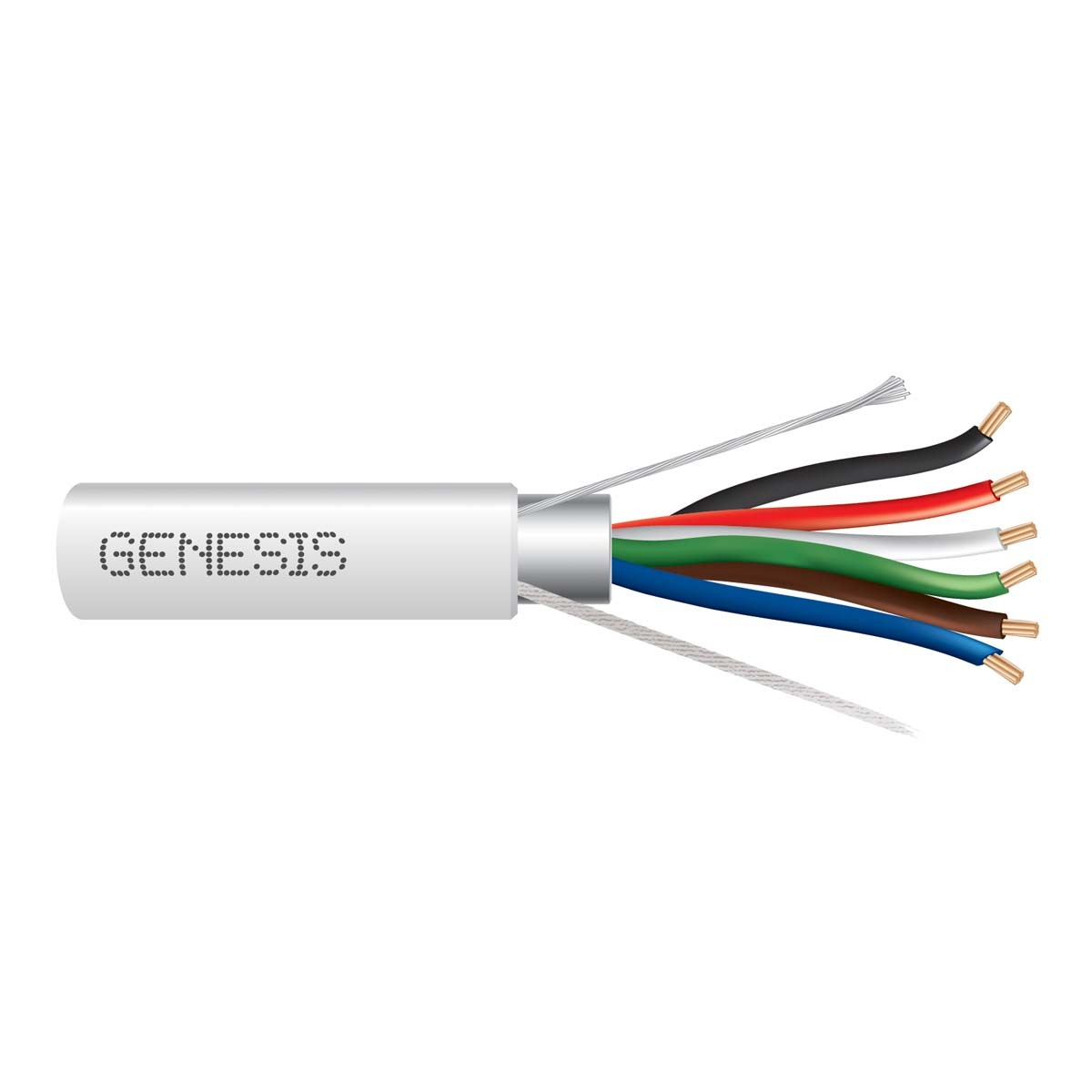

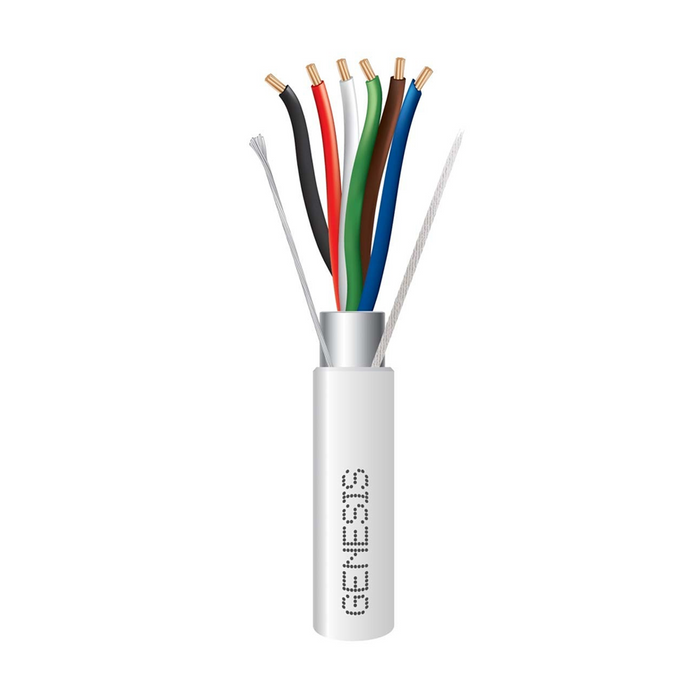

The Genesis Cable 22161001 is a versatile shielded multiconductor cable designed to minimize electrical noise and interference, protecting sensitive signals. It features bare copper conductors, polypropylene insulation, and a PVC jacket. This cable is sunlight resistant, REACH/RoHS compliant, and features countdown length markings for easy tracking.

• Bare copper conductors for excellent conductivity
• Foil shield over all conductors
• Durable rip cord for efficient jacket stripping

Product Highlights

This 18 AWG, 6-conductor shielded cable is riser rated and suitable for security, control, audio, and other low-voltage applications. It is rated for 300 Volts and -20 °C to 75 °C.

Product Information

Standard Information

• Brand: Genesis Cable
• Manufacturer Part Number: 22161001
• Country of Origin: United States

Technical Specifications

• ADI Part Number: WG-22161001
• Brand Name: Genesis
• Manufacturer: Genesis Cable
• Manufacturer Part Number: 22161001
• Packaged Quantity: 1
• Product Model: 22161001
• Product Name: 22161001 - 18 AWG 6C STR Shielded Riser, White, 1000 FT. Reel
• Product Type: Security & Control Cables
• American Wire Gauge: 18AWG
• Armored: No
• Cable Rating: Riser
• Conductor Count: 6
• Conductor Material: Bare Copper
• Jacket Material: PVC
• Jacket Type: FT4, Riser
• Number of Conductors: 6
• Shielding: Yes
• Solid or Stranded: Stranded
• TAA Compliant: Yes
• Cable Length: 1000'
• Color: White
• Insulation Material: PP
• Package Type: Reel/Spool
• Country of Origin: US
• Environmental Certification: RoHS
• Indoor/Outdoor: Indoor
• Size (AWG or kcmil): 18 AWG
• Stranding: Stranded
• Nominal Total Weight (lbs/1000'): 42
