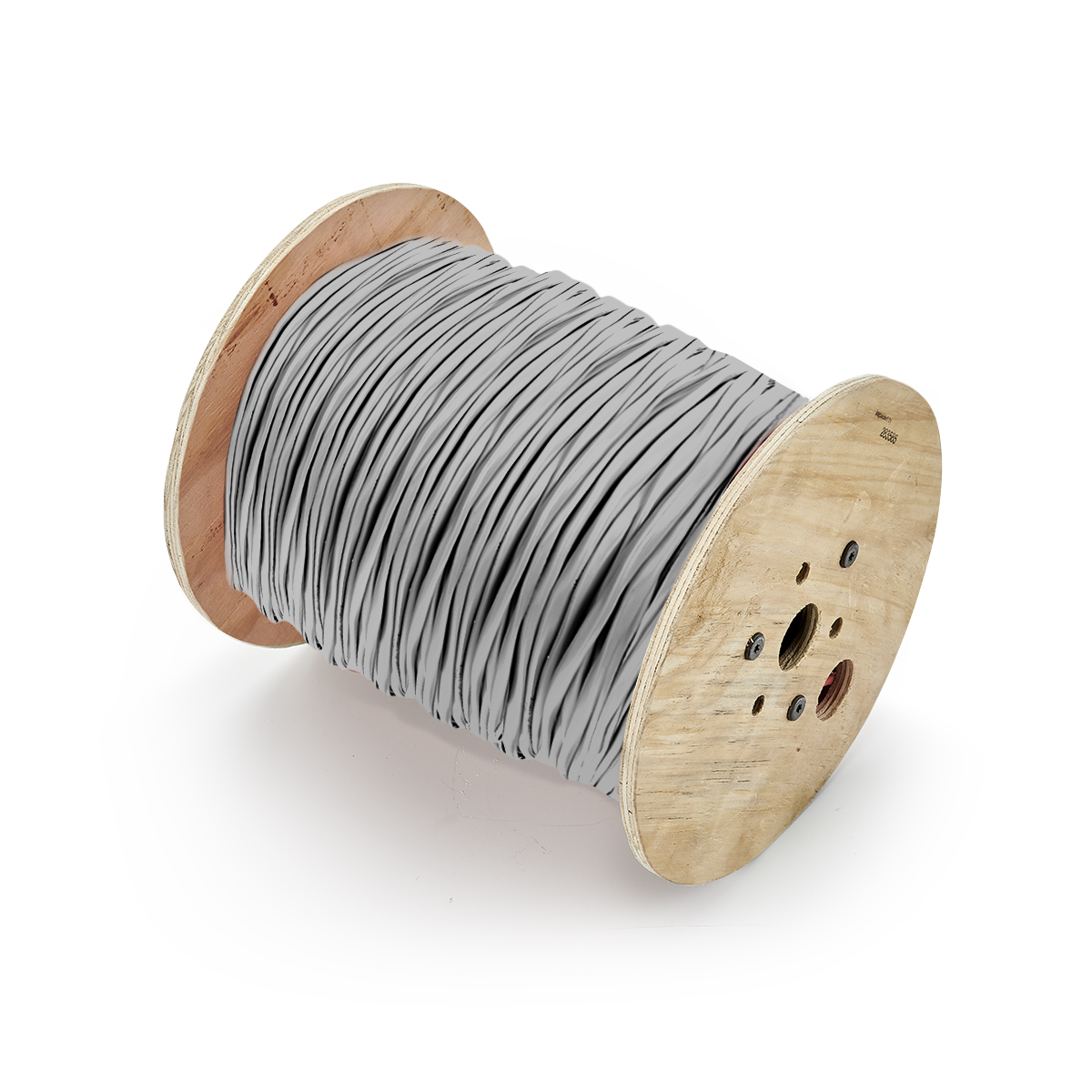

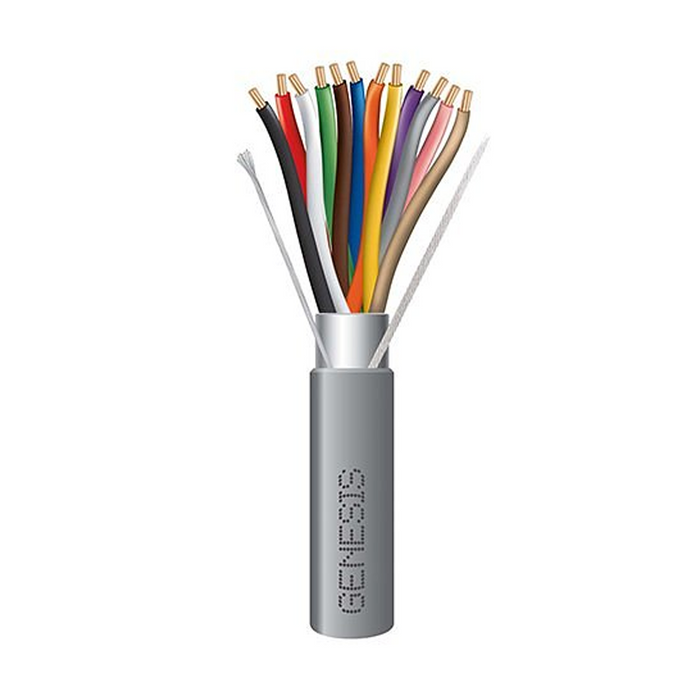

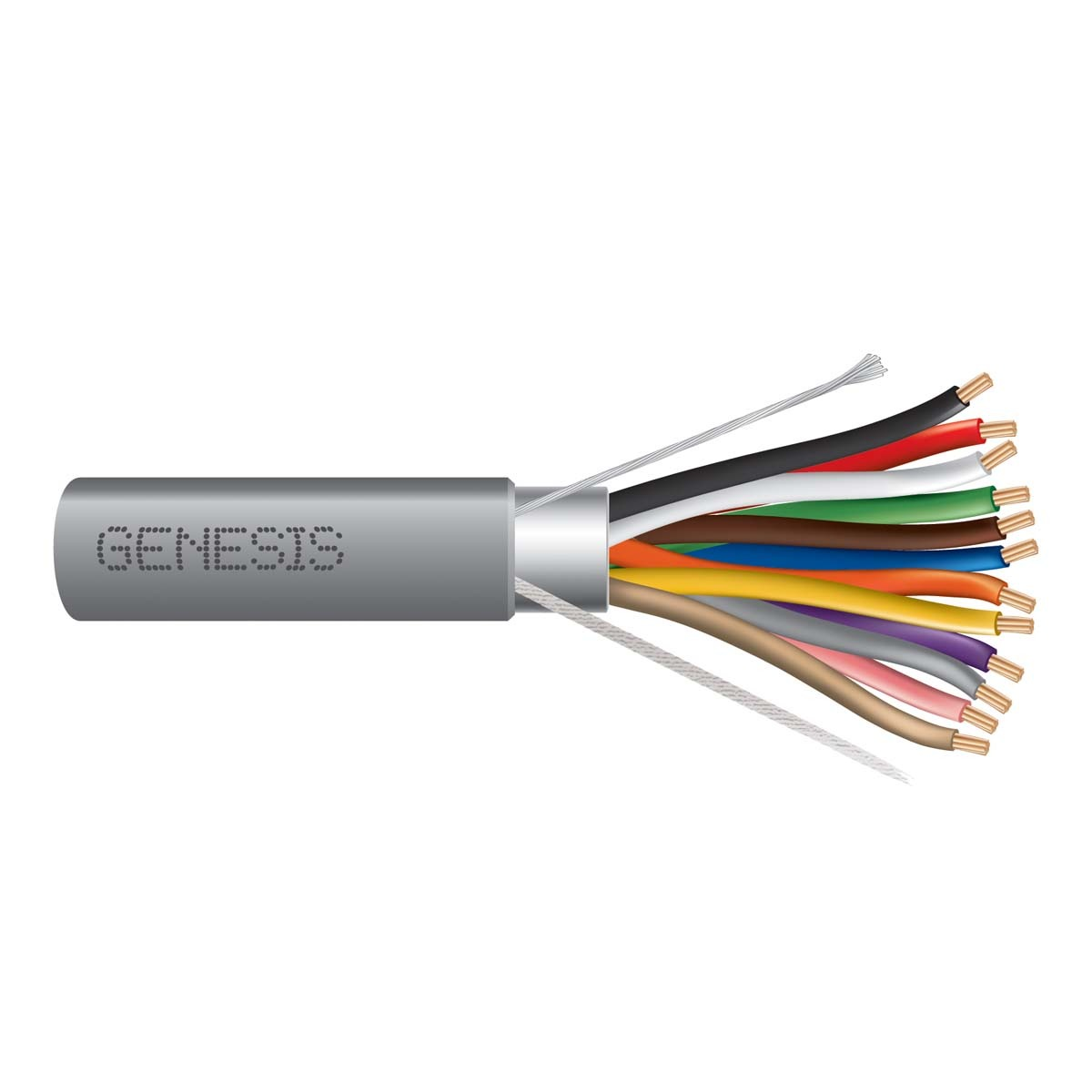

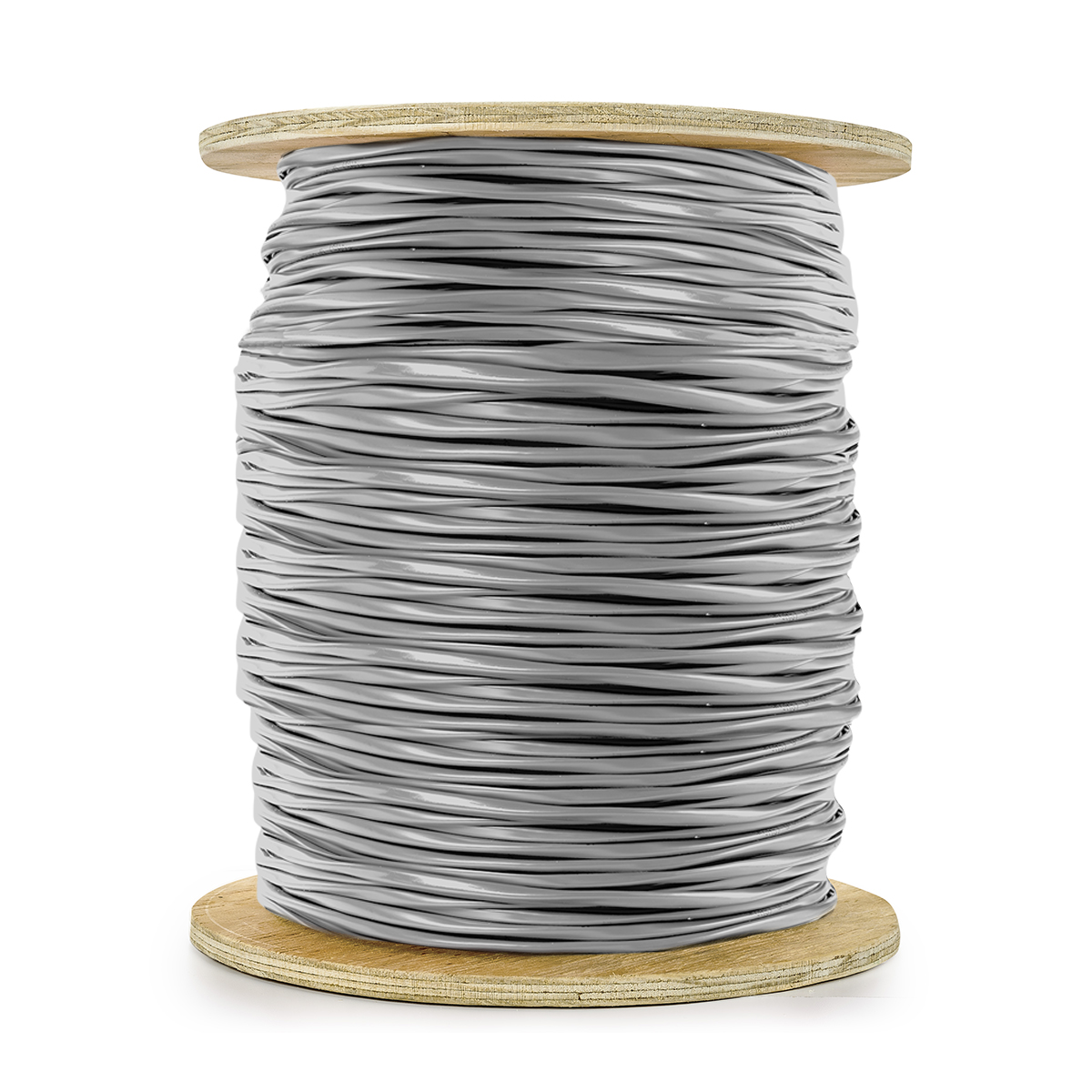

Genesis Cable 22091009 Multiconductor Shielded Cable, Riser 22-7 12/C CU CL2R/FPLR/CMR OAS GRAY GEN 1000 FT

Product Description

The Genesis Cable 22091009 Riser Rated Shielded Multiconductor Cable is suitable for installation in metal raceways, solid bottom metal cable trays, and risers. Features bare copper conductors, polypropylene insulation, and a foil shield over all conductors. Includes a PVC jacket and a durable rip cord for jacket stripping. Rated for 300 Volts and -20 °C to 75 °C.

• Bare Copper conductors for excellent conductivity and low voltage drop.
• Polypropylene insulation.
• Foil shield over all conductors.

Product Highlights

Shielded multiconductor cable with bare copper conductors, polypropylene insulation, and PVC jacket. Features a rip cord and Countdown length markings.

Product Information

Standard Information

• Brand: Genesis Cable
• Manufacturer Part Number: 22091009
• Country of Origin: United States

Technical Specifications

• Size (AWG or kcmil): 22 AWG
• No. of Conductors: 12
• Stranding: Stranded
• Shielding: Shielded
• Nominal Total Weight (lbs/1000'): 39
• Product Type: Control Cable
• American Wire Gauge: 22 AWG
• Connector on First End: Bare Wire
• Features: Stranded
• Connector on Second End: Bare Wire
• Environmentally Friendly: Yes
• Environmental Certification: RoHS
• Brand: Genesis
• Sheath Color: Gray
• Wire Style: Stranded
• Conductor Material: Copper
• Item Length: 1000 ft
• Number of Conductors: 12
• Country of Origin: United States
• Conductors: Bare Copper
• Insulation: Polypropylene
• Shield: Foil shield over all conductors
• Jacket: PVC
• Voltage Rating: 300 Volts
• Temperature Rating: -20 °C to 75 °C
• Sunlight Resistance: Sunlight Resistant (UV) Rated
• Compliance: REACH/RoHS Compliant
