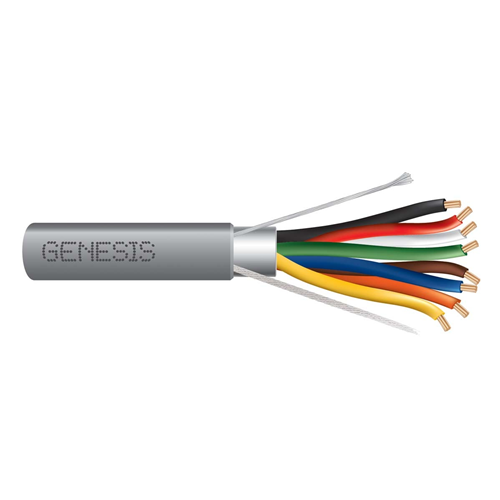

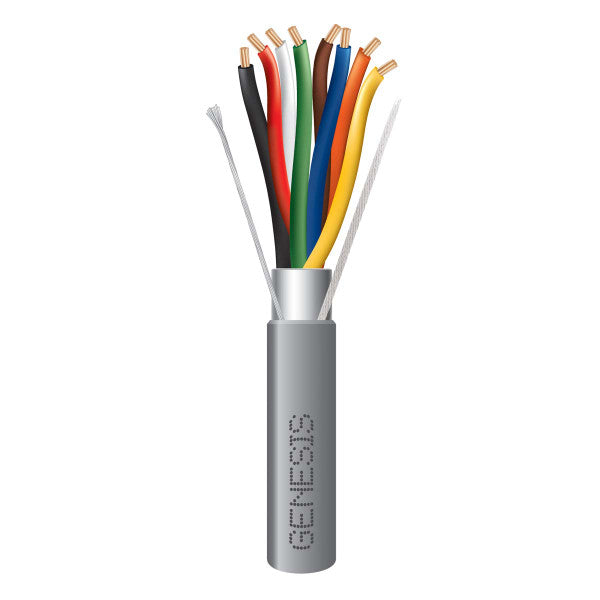

Genesis Cable 22075509 multiconductor shielded cable 22-7 8/C CU CL2R/FPLR/CMR OAS 500 FT

Product Description

The Genesis Cable 22075509 is a riser-rated shielded multiconductor cable suitable for installation in metal raceways, solid bottom metal cable trays, and risers. It can be used within buildings and exposed to sunlight. Features bare copper conductors, polypropylene insulation and a PVC jacket.

• Bare Copper conductors for excellent conductivity and low voltage drop.
• Polypropylene insulation.
• Foil shield over all conductors.

Product Highlights

This shielded multiconductor cable minimizes electrical noise and interference to protect sensitive signals.

Product Information

Standard Information

• Brand: Genesis Cable
• Manufacturer Part Number: 22075509
• Country of Origin: US

Technical Specifications

• Size (AWG or kcmil): 22 AWG
• No. of Conductors: 8
• Stranding: Stranded
• Shielding: Aluminum Foil/Mylar with 24 AWG Tinned-Copper Drain Shielding
• Nominal Total Weight (lbs/1000'): 28
• Outer Jacket / Armor Color: GRAY
• Conductor Color: WHITE/YELLOW/ORANGE/RED/GREEN/BLUE/BROWN/BLACK
• Brand Name: Genesis
• Manufacturer: Genesis Cable
• Manufacturer Part Number: 22075509
• Packaged Quantity: 1
• Product Model: 22075509
• Product Type: Security & Control Cables
• American Wire Gauge: 22AWG
• Armored: No
• Cable Rating: Riser
• Conductor Count: 8
• Conductor Material: Bare Copper
• Jacket Material: PVC
• Jacket Type: FT4, Riser
• Solid or Stranded: Stranded
• TAA Compliant: Yes
• Cable Length: 500'
• Insulation Material: PP
• Package Type: REELEX Pull Box
• Environmental Certification: RoHS
• Indoor/Outdoor: Indoor
• Country of Origin: United States
• Cable Type: Bare Wire
• Device Supported: Security Device
• Features: Stranded, Sunlight Resistant
• Material: Aluminum Foil - Shielding, Bare Copper - Conductor, Mylar - Shielding, Polypropylene - Insulation, Polyvinyl Chloride (PVC) - Jacket, Tinned Copper - Shielding
• Operating Voltage: 300 Volt max.
• Flame Rating: UL1666 (Riser); CSA C22.2 No. 2556 (FT4)
• Insulation: Polypreopylene (0.006" nom.)
• Insulation Colors: Black, Red, White, Green, Brown, Blue, Orange, Yellow
• Lay Length: 3.25" nom
• Jacket: PVC(0.016" nom.)
• Type: Stranded
• Length: 500Ft.
• voltage rating: 300 V
• temperature rating: -20 To 75 Deg C
