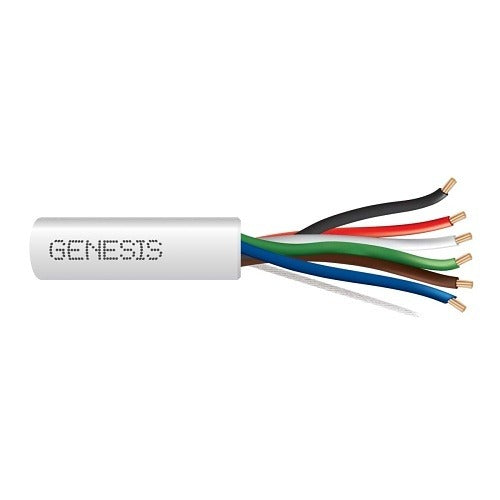

Genesis Cable 21061101 22AWG 6C Cmr FT4 Security Cable 1000ft White

Product Description

The GENESIS CABLE 21061101 is a 22 AWG 6-conductor stranded unshielded security cable rated CMR (riser) and FT4, supplied in a 1000-foot pull box in white. This cable is designed for low-voltage security, access control, and alarm system wiring in commercial and residential buildings. The stranded conductor construction provides flexibility during installation, and the CMR riser rating allows vertical runs between floors without the need for conduit in most code-compliant applications. Licensed security and alarm technicians are the primary installers of this cable type.

This cable is suited for interior low-voltage security and fire alarm auxiliary wiring applications where a riser-rated, unshielded multi-conductor cable is required. The 6-conductor configuration supports panel-to-device runs that require multiple signal or power conductors in a single jacket, such as motion detectors, door contacts, keypads, and similar security devices. The white jacket blends with standard interior finishes and simplifies identification in multi-cable installations.

Key Features

• 22 AWG stranded conductors for flexibility in tight routing paths
• 6-conductor configuration supports multi-signal and power runs in one cable
• CMR riser rating for vertical building runs per NEC Article 800
• FT4 flame rating meets Canadian fire test standards
• Unshielded construction keeps weight and diameter low for standard security applications
• 1000-foot box simplifies pulls and reduces waste on large jobs

Compatibility

Designed as an OEM-style replacement and standard-use cable for residential and commercial low-voltage security, access control, and alarm system wiring applications requiring a CMR FT4-rated unshielded multi-conductor cable.

Installation Notes

Installation should be performed by a licensed low-voltage or alarm systems technician in accordance with NEC Article 800 and applicable local codes. De-energize all connected panels and devices before terminating conductors. CMR-rated cable is approved for riser use but is not a substitute for CMP plenum-rated cable in air-handling spaces. Avoid running low-voltage security cable parallel and in close proximity to AC power wiring to minimize interference.
