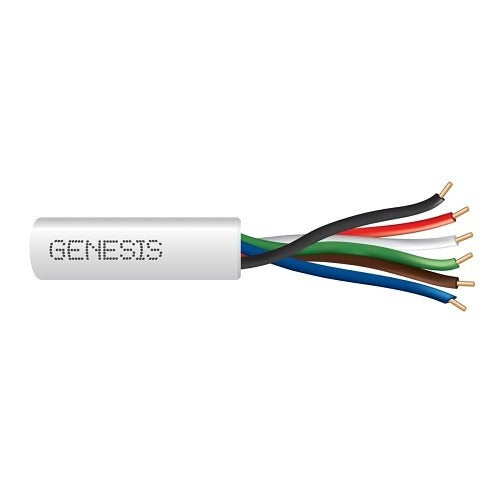

Genesis Cable 21051101 22AWG 6-conductor Riser Cable 1000ft

Product Description

The GENESIS CABLE 21051101 is a 22 AWG 6-conductor solid unshielded riser-rated cable designed for low-voltage signal and control wiring in commercial and residential buildings. Rated for riser (CMR) applications, this cable meets the fire-propagation requirements needed for vertical runs between floors. The solid conductor construction maintains consistent signal integrity over long runs, making it a reliable choice for security systems, access control, fire alarm auxiliary circuits, and building automation wiring. Each box contains 1000 feet of white-jacketed cable, providing enough footage for large installs or multiple zones in a single pull.

This cable is suited for riser installations where vertical cable routing passes through floor penetrations and plenum-free shaft spaces. Typical applications include intrusion detection systems, intercom wiring, card access panels, and low-voltage control circuits in multi-story commercial buildings and large residential properties. The white jacket finish is standard for blending with interior trim and conduit work. Installers working under low-voltage contractor licenses or alarm system certification will find this cable appropriate for structured cabling and security rough-in work.

Key Features

• 22 AWG solid conductors for stable resistance and consistent signal over extended runs
• 6-conductor configuration supports multi-zone or multi-function wiring in a single cable
• Riser (CMR) rating meets fire-propagation requirements for vertical building runs
• Unshielded construction keeps termination straightforward for standard low-voltage panels
• 1000-foot box quantity reduces splice points on large or multi-floor installations
• White jacket finish suits finished interior spaces and standard low-voltage wiring practices

Compatibility

Designed as a standard CMR-rated 22 AWG 6-conductor solid cable for use with low-voltage control panels, security systems, access control equipment, and building automation devices that accept unshielded solid conductor wiring.

Installation Notes

Installation should be performed by a licensed low-voltage or alarm systems contractor in accordance with NEC Article 800 and local building codes governing riser cable routing. De-energize all connected panels and control equipment before terminating conductors. Avoid running this cable in plenum air-handling spaces, as CMR-rated cable is not approved for plenum use — use CMP-rated cable in those locations. Do not exceed the minimum bend radius of the cable during pulls to prevent conductor damage or jacket splitting.
