Genesis Cable 21045805 22/4 Stranded Riser Cable 500 Ft

Product Description

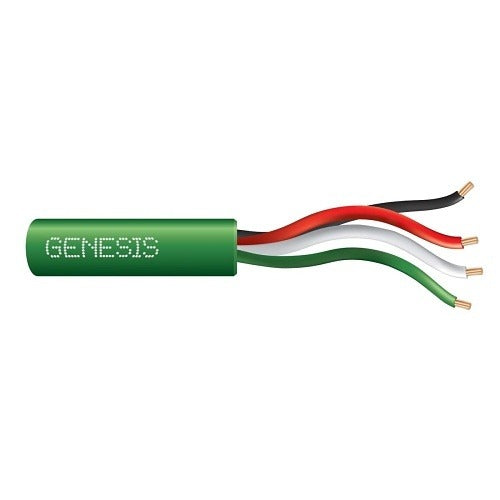

The GENESIS CABLE 21045805 is a 22 AWG 4-conductor stranded unshielded riser-rated security cable supplied in a 500-foot pull box in green jacket. Rated for riser (CMR) applications, this cable is designed to resist flame spread between floors, making it compliant for vertical runs inside building walls and risers. The stranded conductor construction provides flexibility during routing and termination, which is important in security and low-voltage alarm wiring installations. Licensed security and low-voltage technicians are the primary installers of this product.

This cable is used in residential and commercial security system installations, including intrusion alarm panels, motion detectors, door and window contacts, and access control devices. The 4-conductor configuration supports common wiring layouts found in security control panel installations. The green jacket aids in color-coding and cable identification during installation and future service work. The 500-foot spool is suited for larger jobs or multi-zone installations where longer continuous runs are required.

Key Features

• 22 AWG stranded conductors for flexibility during pull and termination
• 4-conductor configuration supports multi-wire security device connections
• Riser (CMR) rating allows vertical runs between floors per fire code requirements
• Unshielded construction keeps cost efficient for standard alarm and access control wiring
• Green jacket for easy identification and cable management
• 500-foot quantity reduces splices on longer runs

Compatibility

Designed as a standard riser-rated low-voltage security cable suitable for intrusion alarm, access control, and general security device wiring in residential and commercial installations.

Installation Notes

Installation should be performed by a licensed low-voltage or security systems technician in accordance with applicable NEC Article 760 requirements for power-limited fire alarm and signaling cable. De-energize all connected panels and devices before making terminations. Riser-rated cable must not be substituted for plenum-rated cable in air-handling spaces. Avoid sharp bends that could damage stranded conductors during pulling.
