Genesis Cable 21035809 multiconductor unshielded cable 500 ft

Product Description

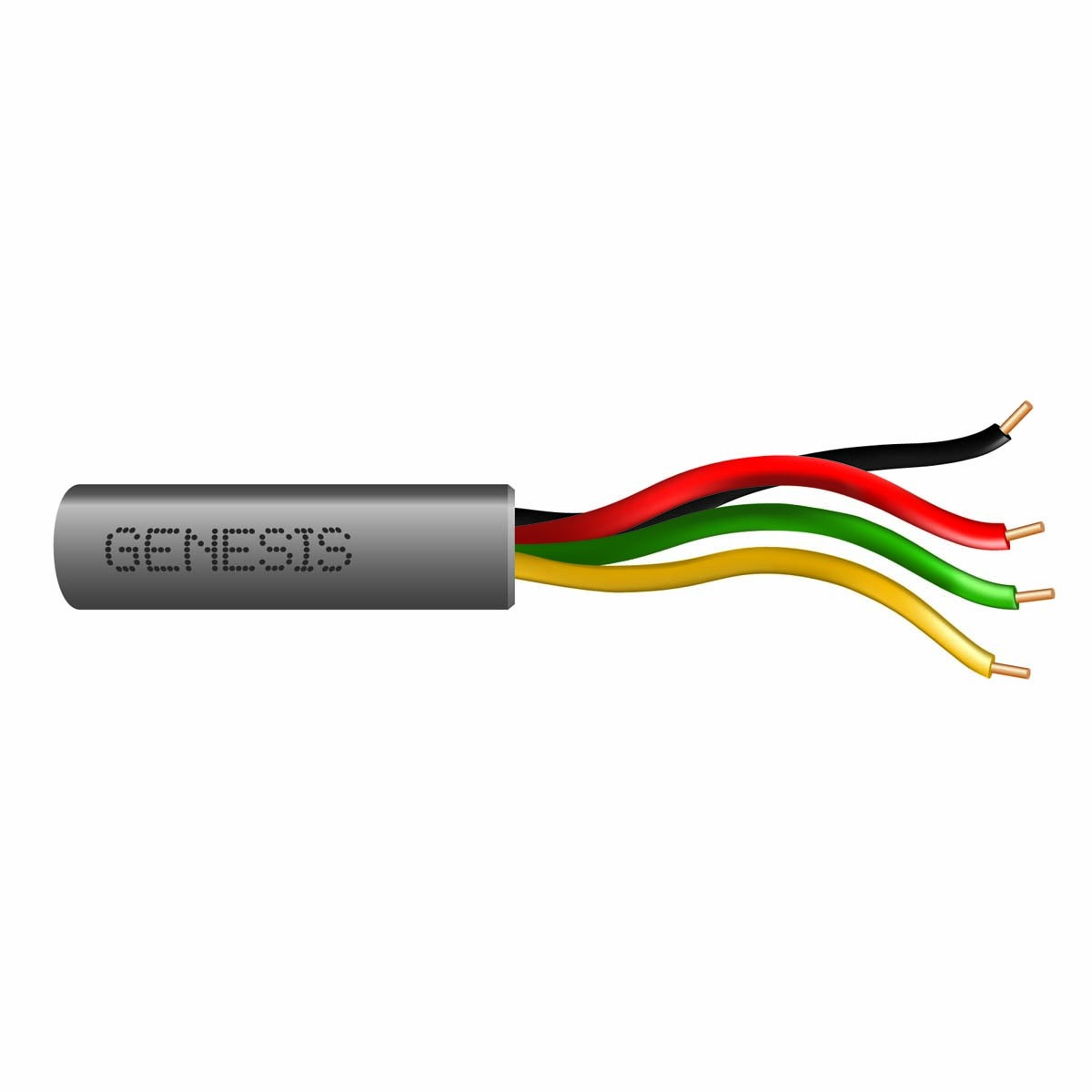

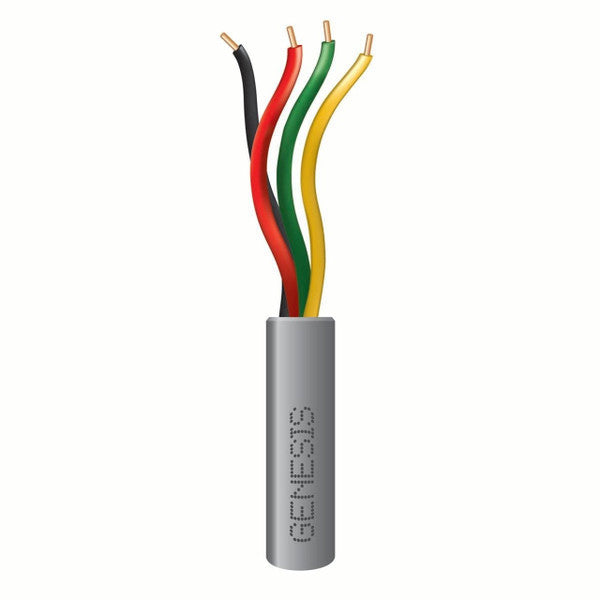

The Genesis Cable 21035809 is a riser-rated, unshielded multiconductor cable suitable for installation in metal raceways, solid bottom metal cable trays, and risers. This 22 AWG cable features bare copper conductors and polypropylene insulation with a PVC jacket. It is rated for 300 Volts and temperatures from -20 °C to 75 °C.

• Bare copper conductors for excellent conductivity
• Durable rip cord for efficient jacket stripping
• Sequential length markings for easy tracking of usage

Product Highlights

Riser-rated unshielded multiconductor cable with bare copper conductors, polypropylene insulation, and a PVC jacket, suitable for various installation environments.

Product Information

Standard Information

• Brand: Genesis Cable
• Manufacturer Part Number: 21035809

Technical Specifications

• Size (AWG or kcmil): 22 AWG
• Size (mm2): 22 AWG
• No. of Conductors: 4
• Stranding: Solid
• Shielding: Unshielded
• Nominal Total Weight (lbs/1000'): 12
• Nominal Total Weight (kgs/km): 18
• Voltage: 300 Volts max. Operating Voltage
• Jacket: PVC (0.016" nom.)
• Ratings: CMR, CL3R, FPLR, FT4, Sunlight Resistant
