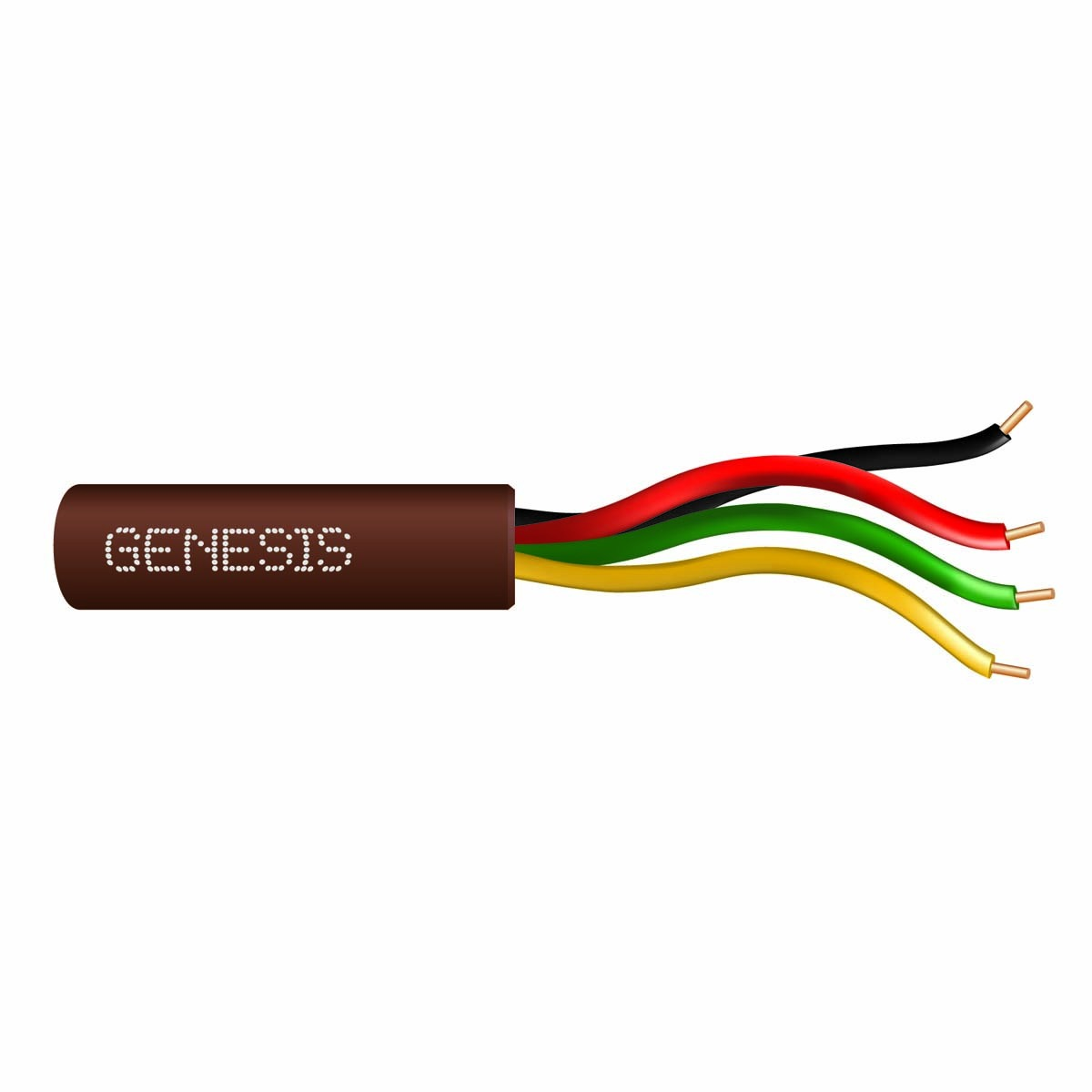

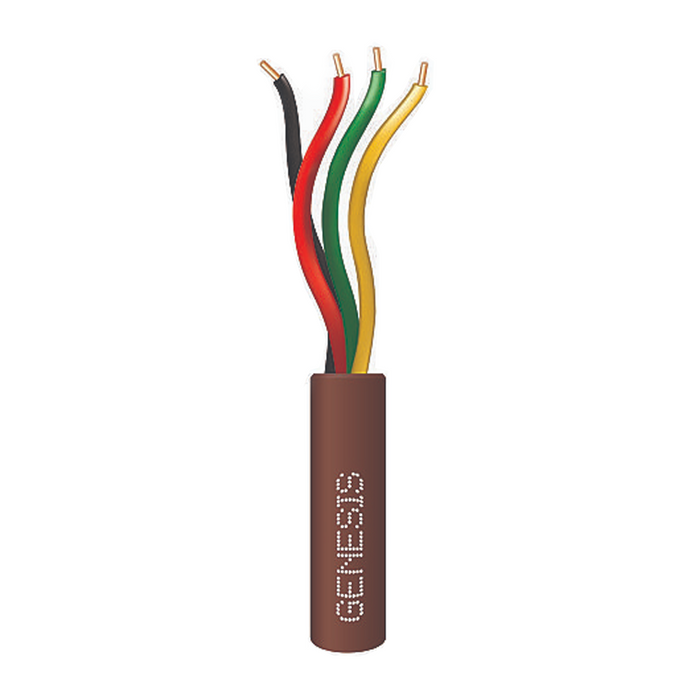

Genesis Cable 21035807 22 awg/4 conductors Solid Unshielded Jacketed CMR Security Cable - Speed Bag, 500ft Replacement 11035807

Product Description

The Genesis Cable 21035807 is a riser-rated unshielded multiconductor cable featuring bare copper conductors for excellent conductivity and low voltage drop. It has polypropylene insulation and a PVC jacket. Suitable for security, controls, audio, and other low-voltage applications. Features a durable rip cord for efficient jacket stripping and removal and sequential length markings.

• Bare copper conductors for excellent conductivity
• Polypropylene insulation and PVC jacket
• Rated for 300 Volts and -20 °C to 75 °C

Product Highlights

This 22 AWG, 4-conductor solid unshielded cable comes in a 500ft Speed Bag and is suitable for indoor use in risers and other general purpose applications.

Product Information

Standard Information

• Brand: Genesis Cable
• Manufacturer Part Number: 21035807
• Country of Origin: United States

Technical Specifications

• Gauge: 22 AWG
• Number of Conductors: 4
• Stranding: Solid
• Shielding: Unshielded
• Cable Length: 500ft
• Color: Brown
• Cable Rating: Riser
• Cable Listing: CL3R, CMR, FPLR, FT4, Sunlight Resistant
• Package Type: Speed Bag
• Nominal Total Weight (lbs/1000'): 12
• Part Number: 21035807
• Packaged Quantity: 1
• Product Line: Speed Bag
• Product Model: 21035807
• Product Name: 22 AWG 4C Sol Riser, Brown, 500 ft. Speed Bag
• Product Type: Access & Security Cable
• American Wire Gauge: 22AWG
• Conductor Count: 4
• Conductor Material: Bare Copper
• Device Supported: Audio Device
• Jacket Material: PVC
• Solid or Stranded: Solid
• Insulation Material: PP
• Material: Bare Copper
• Environmental Certification: RoHS
• Features: Stranded, Sunlight Resistant
• Indoor/Outdoor: Indoor
• TAA Compliant: Yes
• Armored: No
• Jacket Type: FT4, Riser
• ADI Part Number Replaces: WG-11035807
• Model Number Replaces: 11035807
• Insulation: Polypropylene
• Jacket: PVC
• Voltage Rating: 300 Volts
• Temperature Rating: -20 °C to 75 °C
• Sunlight Resistance: Sunlight Resistant (UV) Rated
• Compliance: REACH/RoHS Compliant
• ADI Part Number: WG-21035807
• Brand Name: Genesis
