Genesis Cable 21035806 22/4 Solid Unshielded Cable, Riser, CMR, FT4, 500 feet Speed Bag REPLACEMENT 11035806, 11335806

Product Description

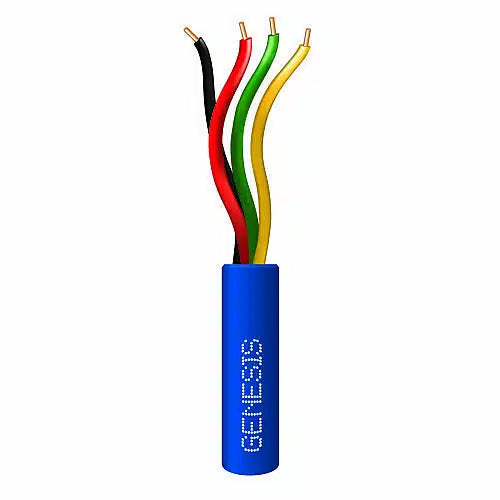

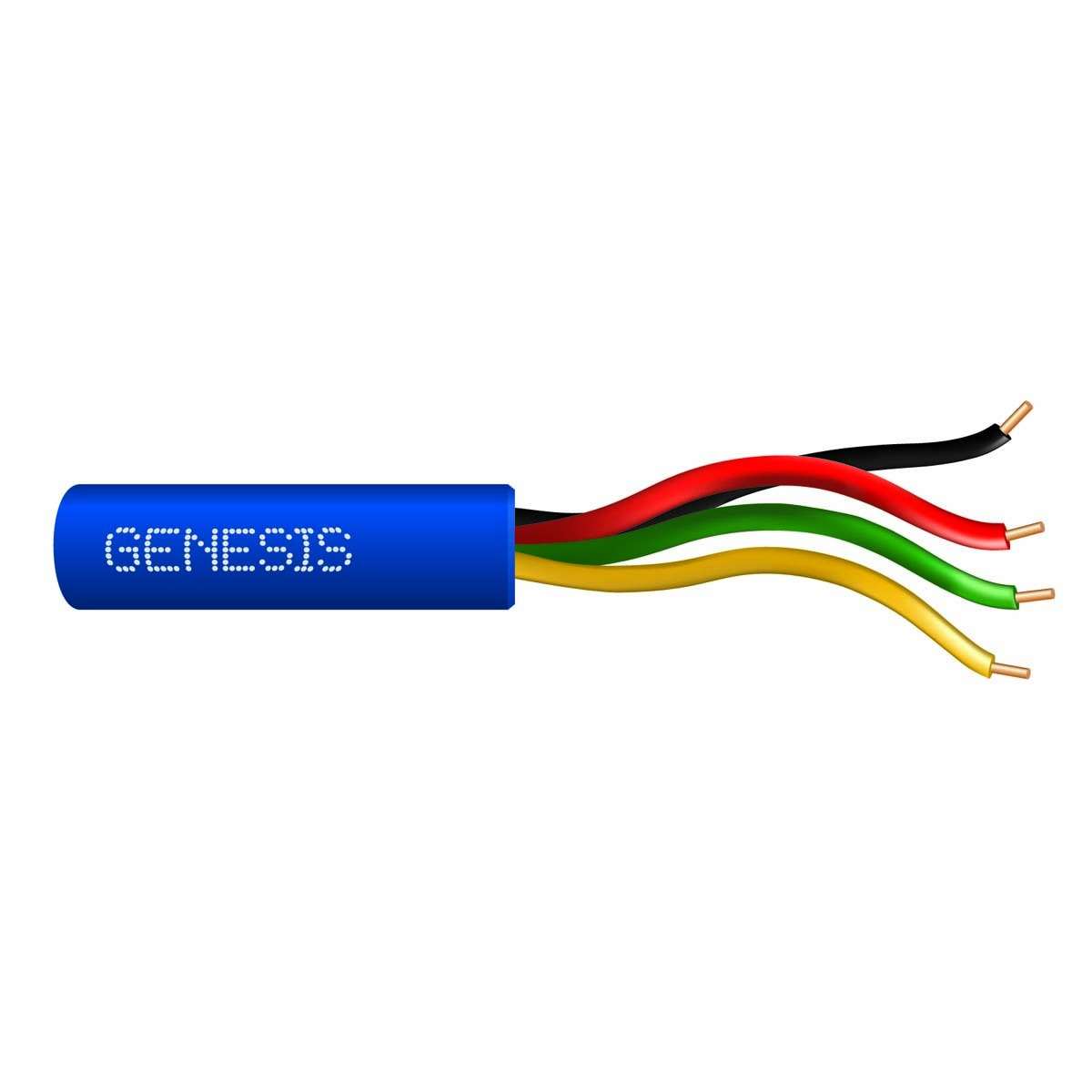

The Genesis Cable 21035806 unshielded multiconductor cable is a versatile solution for signal and limited-power transmission. It features 22 AWG bare copper conductors, polypropylene insulation, and a PVC jacket. The cable is riser rated and includes a durable rip cord for jacket removal. Sequential length markings allow for easy tracking of usage.

• Bare copper conductors for excellent conductivity
• Polypropylene insulation and PVC jacket
• Durable rip cord for efficient jacket stripping

Product Highlights

22 AWG, 4-conductor, unshielded cable with a PVC jacket, suitable for security, control, audio, and other low-voltage applications.

Product Information

Standard Information

• Brand: Genesis Cable
• Manufacturer Part Number: 21035806
• Country of Origin: United States

Technical Specifications

• ADI Part Number: WG-21035806
• Brand Name: Genesis
• Manufacturer: Genesis Cable
• Manufacturer Part Number: 21035806
• Packaged Quantity: 1
• Product Model: 21035806
• Product Name: 22 AWG 4C Sol Riser, Blue, 500 ft. Speed Bag
• Product Type: Security & Control Cables
• American Wire Gauge: 22AWG
• Armored: No
• Cable Rating: Riser
• Conductor Count: 4
• Conductor Material: Bare Copper
• Jacket Material: PVC
• Jacket Type: FT4, Riser
• Number of Conductors: 4
• Shielding: No
• Solid or Stranded: Solid
• TAA Compliant: Yes
• ADI Part Number Replaces: WG-11035806, WG-11335806
• Model Number Replaces: 11035806, 11335806
• Cable Length: 500'
• Color: Blue
• Insulation Material: PP
• Package Type: Speed Bag
• Limited Warranty: 1-Year
• Country of Origin: US
• Environmental Certification: RoHS
• Indoor/Outdoor: Indoor
• Size (AWG or kcmil): 22 AWG
• Size (mm2): 22 AWG
• Nominal Total Weight (lbs/1000'): 12
• Nominal Total Weight (kgs/km): 18
• Cable Listing: CL3R, CMR, FPLR, FT4, Sunlight Resistant
• Cable Type: Multi-conductor/Multi-pair
• Device Supported: Audio Device, Control System, Security Device
• Material: Bare Copper
• Environmentally Friendly: Yes
• Features: Sunlight Resistant
• Voltage Rating: 300 Volts
• Temperature Rating: -20 °C to 75 °C
• Sunlight Resistance: Sunlight Resistant (UV) Rated
• Compliance: REACH/RoHS Compliant
