Genesis Cable 21035805 Multiconductor Unshielded Cable 22 SOL 4/C CU 500 FT

Product Description

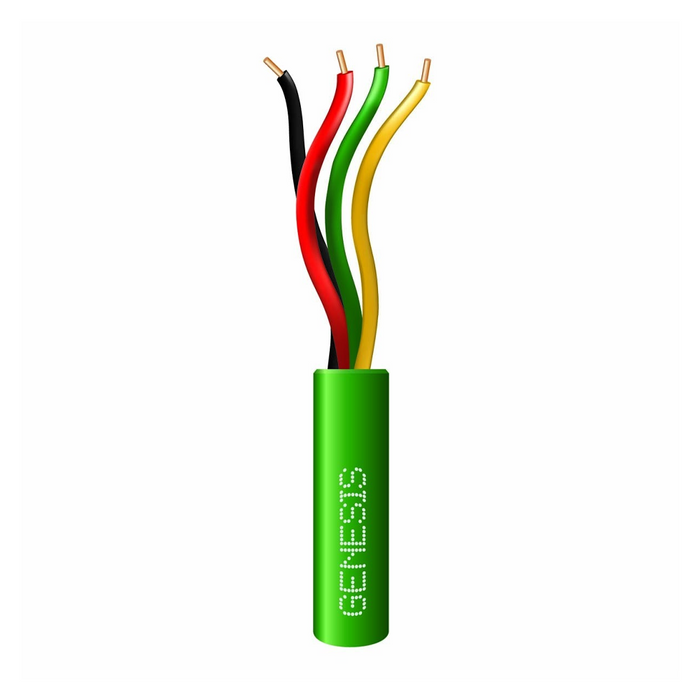

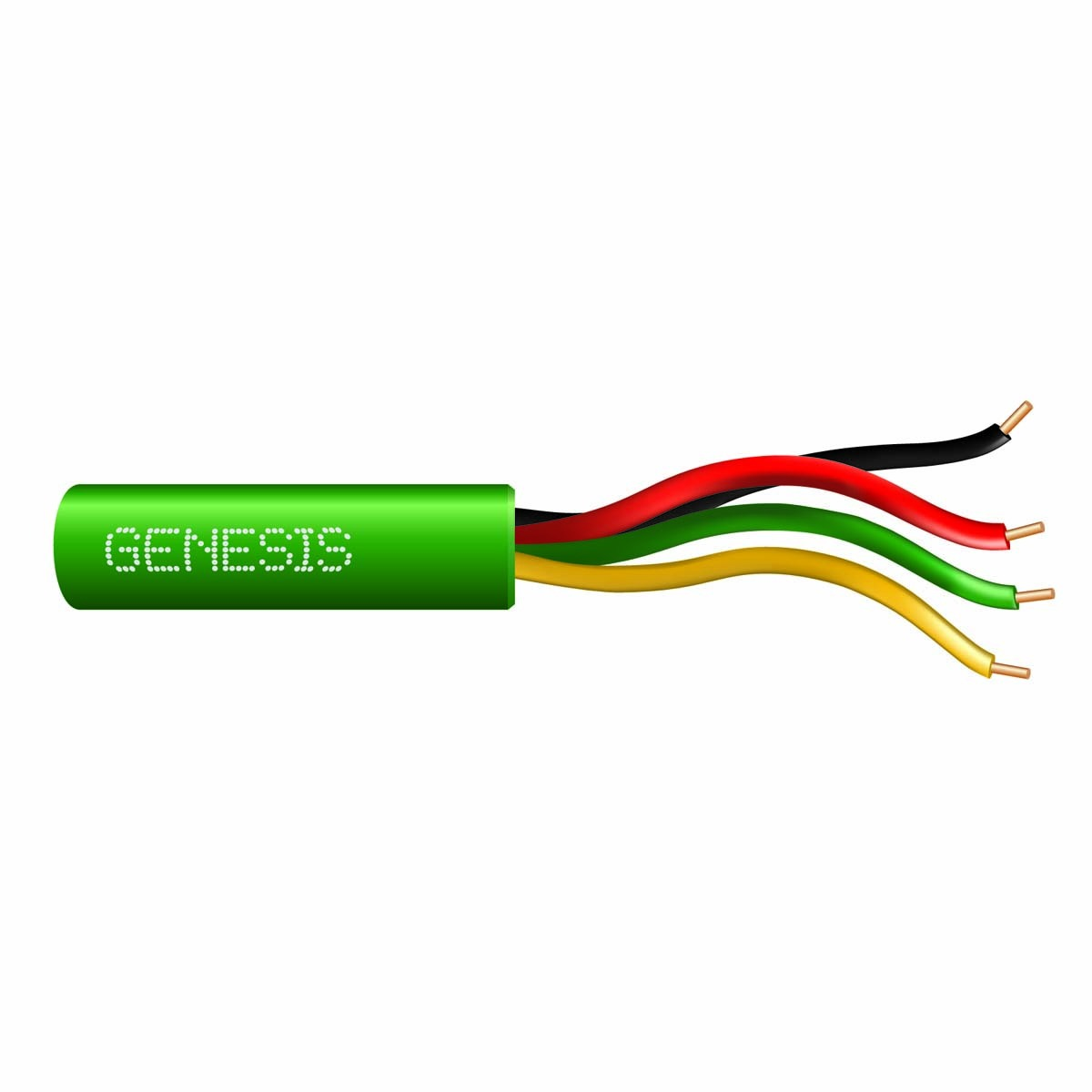

The Genesis Cable 21035805 is a multiconductor unshielded cable suitable for riser installation. This 22 AWG, 4-conductor solid cable is engineered for signal and limited-power transmission. It features bare copper conductors, polypropylene insulation, and a PVC jacket. Rated for 300V and -20 to 75 degrees Celsius.

• Bare copper conductors for excellent conductivity.
• Features polypropylene insulation and a PVC jacket.
• Includes Countdown length markings for easy tracking.

Product Highlights

Riser rated unshielded multiconductor cable with solid conductors, ideal for vertical installations in multi-story buildings.

Product Information

Standard Information

• Brand: Genesis Cable
• Manufacturer Part Number: 21035805

Technical Specifications

• Size (AWG or kcmil): 22 AWG
• No. of Conductors: 4
• Stranding: Solid
• Shielding: Unshielded
• Gauge: 22 AWG
• Number of Conductors: 4
• Cable Length: 500ft
• Cable Rating: Riser
• Cable Listing: CL3R
• Package Type: Speed Bag
• type: Unshielded
• voltage rating: 300 V
• temperature rating: -20 To 75 Deg C
• Conductor Material: Solid bare copper
• Voltage Rating: 300 Volts
• Compliance: REACH and RoHS compliant
• Rating: CMR (Riser) and FT4
• Feature: Sunlight resistant (UV) rated
• Jacket Color: Green PVC
