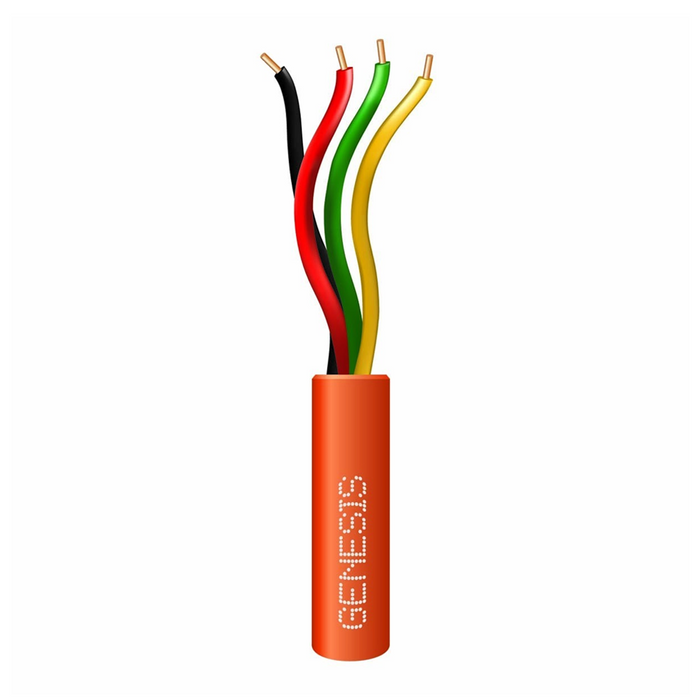

Genesis Cable 21035803 22 AWG 4C Solid CMR/FT4 500 feet Speed Bag

Product Description

The Genesis Cable 21035803 is a 22 AWG, 4-conductor solid cable designed for signal and limited-power transmission applications. Rated CMR (Riser) and FT4, this unshielded cable is suitable for vertical installations in residential and commercial environments. It features sequential length markings and a rip cord for efficient installation.

• 22 AWG 4-conductor solid cable
• Supplied in a portable 500-foot (152m) Speed Bag
• Orange PVC jacket for distinct identification

Product Highlights

Bare copper conductors ensure conductivity, while polypropylene insulation and a PVC jacket provide mechanical strength. It is UV resistant, REACH, and RoHS compliant.

Product Information

Standard Information

• Brand: Genesis Cable
• Manufacturer Part Number: 21035803
• Country of Origin: United States

Technical Specifications

• Conductor: 22 AWG 4-conductor solid cable
• Jacket: Orange PVC
• Conductors: Solid bare copper
• Design: Unshielded
• Voltage: Rated for 300 Volts operation
• Compliance: REACH and RoHS compliant
• Rating: CMR (Riser) and FT4
• ADI Part Number: WG-21035803
• Brand Name: Genesis
• Manufacturer: Genesis Cable
• Manufacturer Part Number: 21035803
• Packaged Quantity: 1
• Product Model: 21035803
• Product Type: Security & Control Cables
• American Wire Gauge: 22AWG
• Armored: No
• Cable Rating: Riser
• Conductor Count: 4
• Conductor Material: Bare Copper
• Jacket Material: PVC
• Jacket Type: FT4, Riser
• Number of Conductors: 4
• Shielding: No
• Solid or Stranded: Solid
• TAA Compliant: Yes
• ADI Part Number Replaces: WG-11035803
• Model Number Replaces: 11035803
• Cable Length: 500'
• Insulation Material: PP
• Package Type: Speed Bag
• Country of Origin: US
• Environmental Certification: RoHS
• Indoor/Outdoor: Indoor
• Temperature Rating: -4°F to 167°F (-20°C to 75°C)
