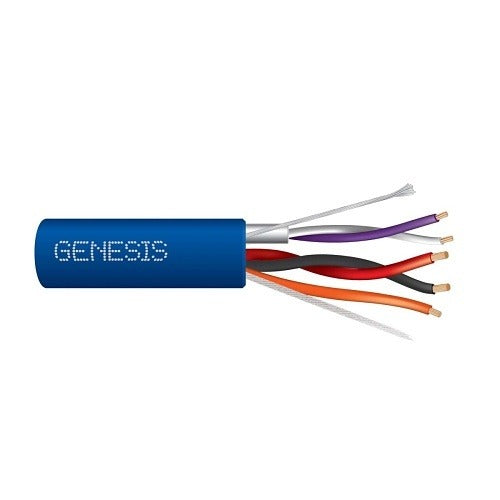

Genesis Cable 12605006 Shielded Security Cable Blue Roll

Product Description

The GENESIS CABLE 12605006 is a multi-conductor shielded security cable combining three wire gauges in a single assembly: 18 AWG 1-conductor, 12 AWG 2-conductor, and 22 AWG 1-conductor. The blue jacket and shielded construction make this cable well suited for low-voltage security, access control, and alarm system installations where signal integrity and conductor separation matter. The shield reduces electromagnetic interference, protecting sensitive signal runs from nearby power wiring. Security installers and low-voltage contractors use this type of multi-gauge assembly to consolidate power and signal runs in a single cable pathway.

This cable is designed for stranded shielded security applications, including intrusion detection panels, access control hardware, and alarm system field devices. The multi-gauge configuration allows a single cable pull to serve both power and signal functions simultaneously, reducing conduit fill and labor time. It is appropriate for residential and light commercial security system installations where a combination of power feed and data or sensor signal conductors are required in one run.

Key Features

• Multi-gauge assembly: 18 AWG 1-conductor, 12 AWG 2-conductor, and 22 AWG 1-conductor in one cable
• Shielded construction reduces electromagnetic interference on signal conductors
• Blue jacket for easy identification in multi-cable installations
• Stranded conductors for flexibility during installation and routing
• Sold as a single roll unit for straightforward job-site inventory

Compatibility

Designed as an OEM-style replacement and standard-use cable for low-voltage stranded shielded security and alarm system wiring applications.

Installation Notes

Installation should be performed by a licensed low-voltage or security systems contractor in accordance with applicable local codes and NFPA 70 (NEC) Article 725 for Class 2 and Class 3 remote-control and signaling circuits. De-energize all connected panels and devices before terminating conductors. Maintain minimum bend radius during pulls to avoid damaging the shield foil or conductor stranding. Verify shield continuity and proper grounding at the panel end after installation.
