Genesis 47630312 18/5 Solid Thermostat Cable 4 X 250 Ft Reel REPLACEMENT MPN

Product Description

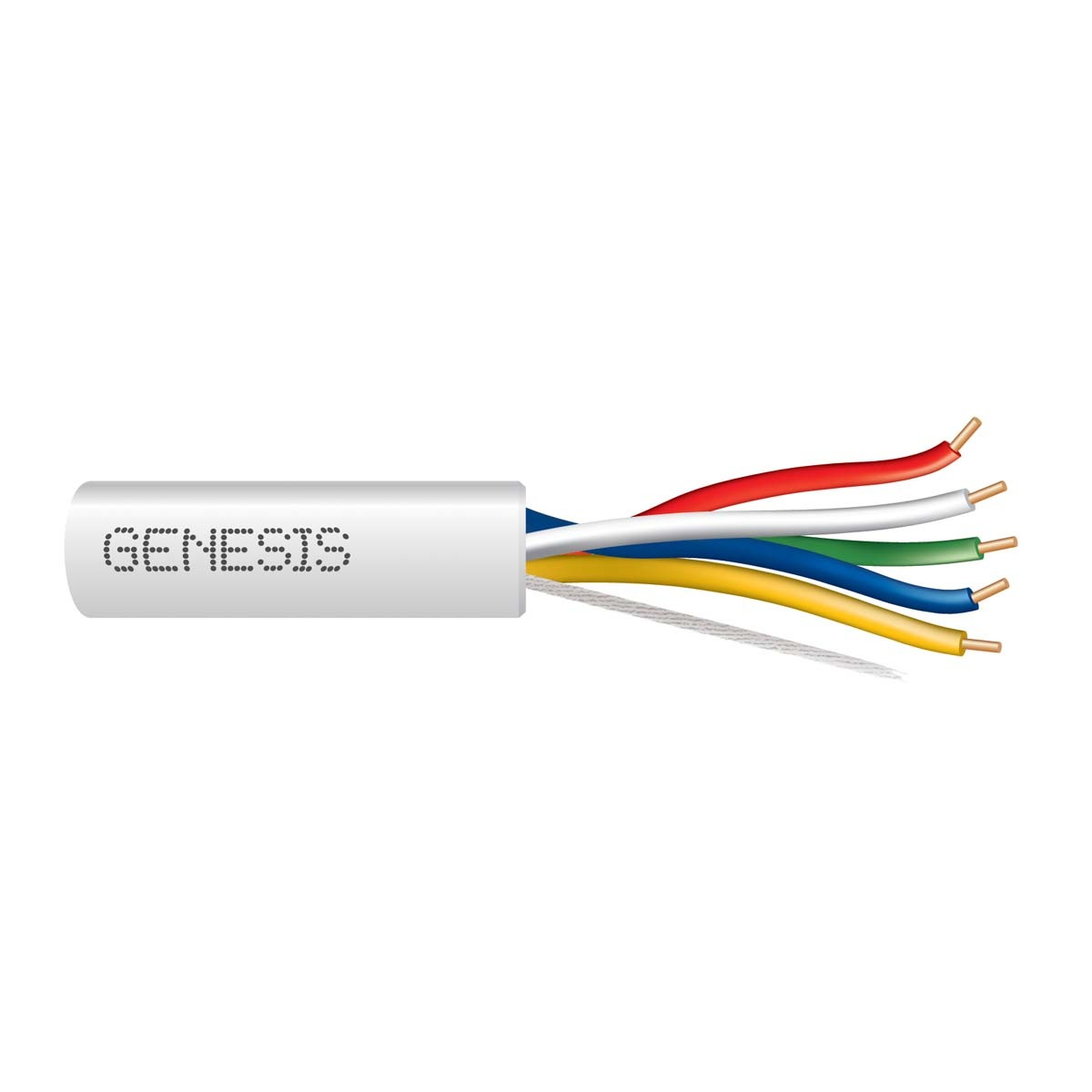

The GENESIS 47630312 is an 18/5 solid thermostat cable supplied as a 4 x 250 ft reel. This unshielded cable features bare copper conductors for excellent conductivity and low voltage drop. It is suitable for wiring thermostat controls, HVAC equipment, doorbells, and other low voltage applications. The cable has a plenum PVC jacket and is RoHS compliant.

• Bare copper conductors for excellent conductivity
• Low-Smoke PVC insulation and Plenum PVC jacket
• Sequential length marking for easy tracking of usage

Product Highlights

This thermostat cable ensures reliable signal transmission between thermostats and heating/cooling systems.

Product Information

Standard Information

• Brand: GENESIS
• Manufacturer Part Number: 47630312
• Country of Origin: Country of origin is subject to change.

Technical Specifications

• Catalog Number: 47630312
• Manufacturer: Genesis
• Brand: Genesis
• UPC: 619172042369
• Construction: 18 AWG 2C SOL 18 AWG 3C SOL 18 AWG 4C SOL 18 AWG 5C SOL 18 AWG 6C SOL 18 AWG 8C SOL 18 AWG 10C SOL
• Outer Jacket / Armor Color: NATURAL
• Size (AWG or kcmil): 18 AWG
• No. of Conductors: 5
• Stranding: Solid
• Shielding: Unshielded
• Conductor Count: 5
• Conductors: 18 AWG, Bare Copper, Solid
• Gauge: 18 AWG
• Temperature: -4°F (-20°C) Min, 140°F (60°C) Max
• Voltage: 150V Max
• ADI Part Number: WG-47630312
• Product Model: 47630312
• Product Type: Thermostat Cables
• American Wire Gauge: 18AWG
• Armored: No
• Cable Rating: Plenum
• Conductor Material: Bare Copper
• Jacket Material: LS-PVC
• Number of Conductors: 5
• Solid or Stranded: Solid
• TAA Compliant: Yes
• Cable Length: 250'
• Insulation Material: LS-PVC
• Conductor Size: 18 AWG
• Conductor Type: Bare Solid Copper
• Jacket Color: Beige
• Length: 4 x 250 ft
• Outside Diameter: 0.172 in
• Packaging Type: Reel
• Resistance: 6.5 Ohm
• Series: Genesis®
• Temperature Rating: -20 to 60 deg C
• Voltage Rating: 300 V AC
• Capacitance: 22.8 pF/ft Nominal
• Impedance: 67 Ohms nom.
