Genesis 47620312 18/4 Solid Plenum-Rated Thermostat Wire, 250 feet

Product Description

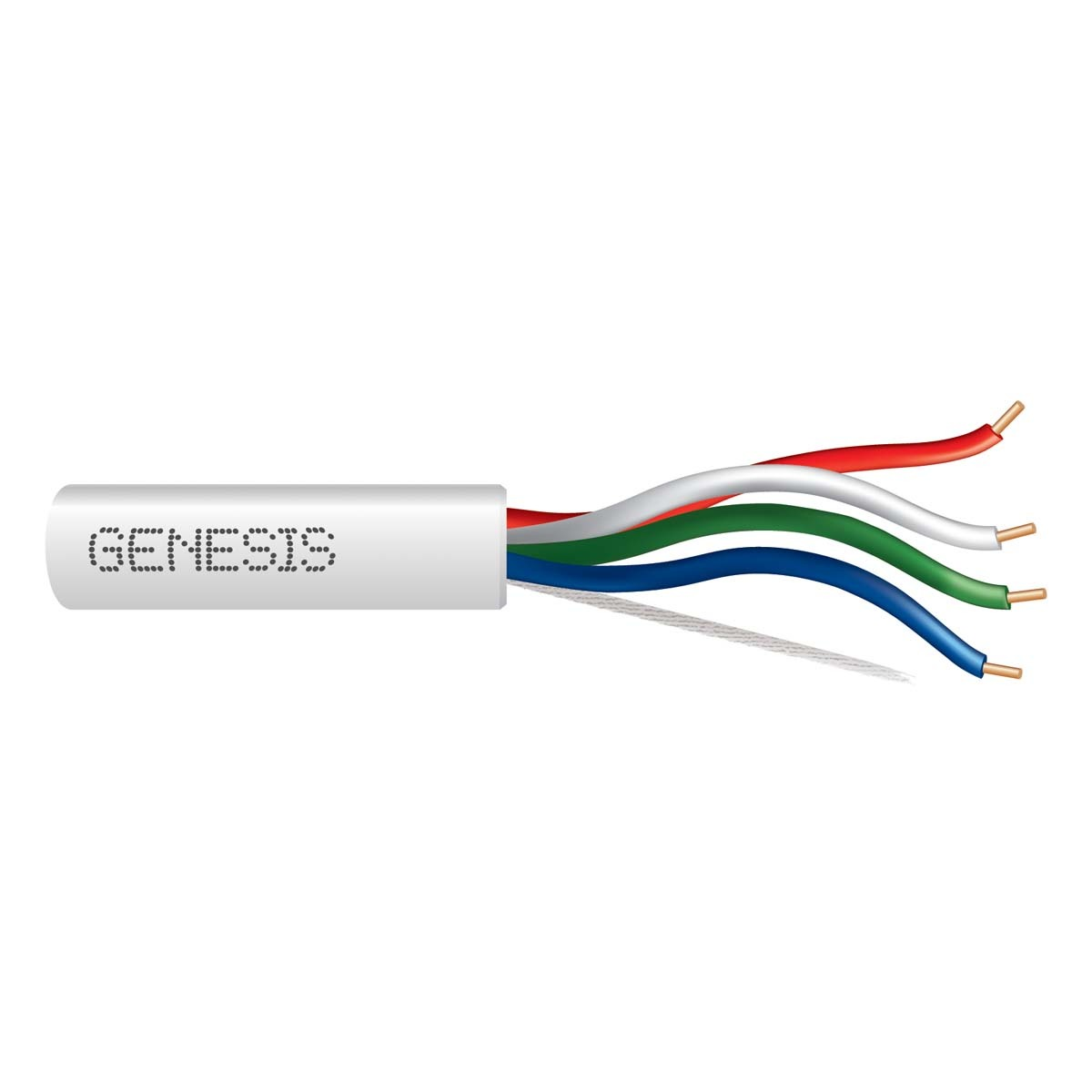

The GENESIS 47620312 cable features 4 solid 18 AWG bare copper conductors and a plenum-rated jacket. This thermostat cable guarantees reliable signal transmission between thermostats and heating/cooling systems. It is suitable for installation in fabricated ducts and risers and within buildings in air-handling spaces.

• Solid bare copper conductors for excellent conductivity
• Plenum PVC jacket
• Durable rip cord for efficient jacket stripping and removal

Product Highlights

This plenum-rated thermostat wire is ideal for both new and existing HVAC equipment, ensuring efficient and reliable thermostat wiring.

Product Information

Standard Information

• Brand: GENESIS
• Manufacturer Part Number: 47620312
• Country of Origin: United States

Technical Specifications

• Color: Natural
• Shielding: No
• Brand Name: Genesis
• Jacket Type: Plenum
• Cable Length: 250'
• Package Type: Reel
• Cable Listing: CL2P
• ADI Part Number: WG-47620312
• American Wire Gauge: 18AWG
• Number of Conductors: 4
• Manufacturer Part Number: 47620312
• Product Group: BISS
• MPN: 47620312
• Product Type: Thermostat Cables
• Size (AWG or kcmil): 18 AWG
• Size (mm2): 18 AWG
• Stranding: Solid
• Nominal Total Weight (lbs/1000'): 27
• Nominal Total Weight (kgs/km): 40
• Outer Jacket / Armor Color: NATURAL
• Packaging: 4 x 250 FT REEL
• Product Model: 47620312
• Armored: No
• Cable Rating: Plenum
• Conductor Material: Bare Copper
• Jacket Material: LS-PVC
• Solid or Stranded: Solid
• TAA Compliant: Yes
• Insulation Material: LS-PVC
• Limited Warranty: 1-Year
• Country of Origin: US
• Environmental Certification: RoHS
• Indoor/Outdoor: Indoor
• Capacitance: 22.8 pF
• Impedance: 67 Ohm
• Insulation Color: Blue/Green/Red/White
• Insulation Thickness: 0.006 in
• Jacket Thickness: 0.015 in
• Lay Length: 24 in
• Length: 250 ft
• Resistance: 6.52 Ohm
• Temperature Rating: -20 to 60 deg C
• Voltage Rating: 150 V
• Conductor Size: 18 AWG
• Type: CL2P/FT6, Plenum
