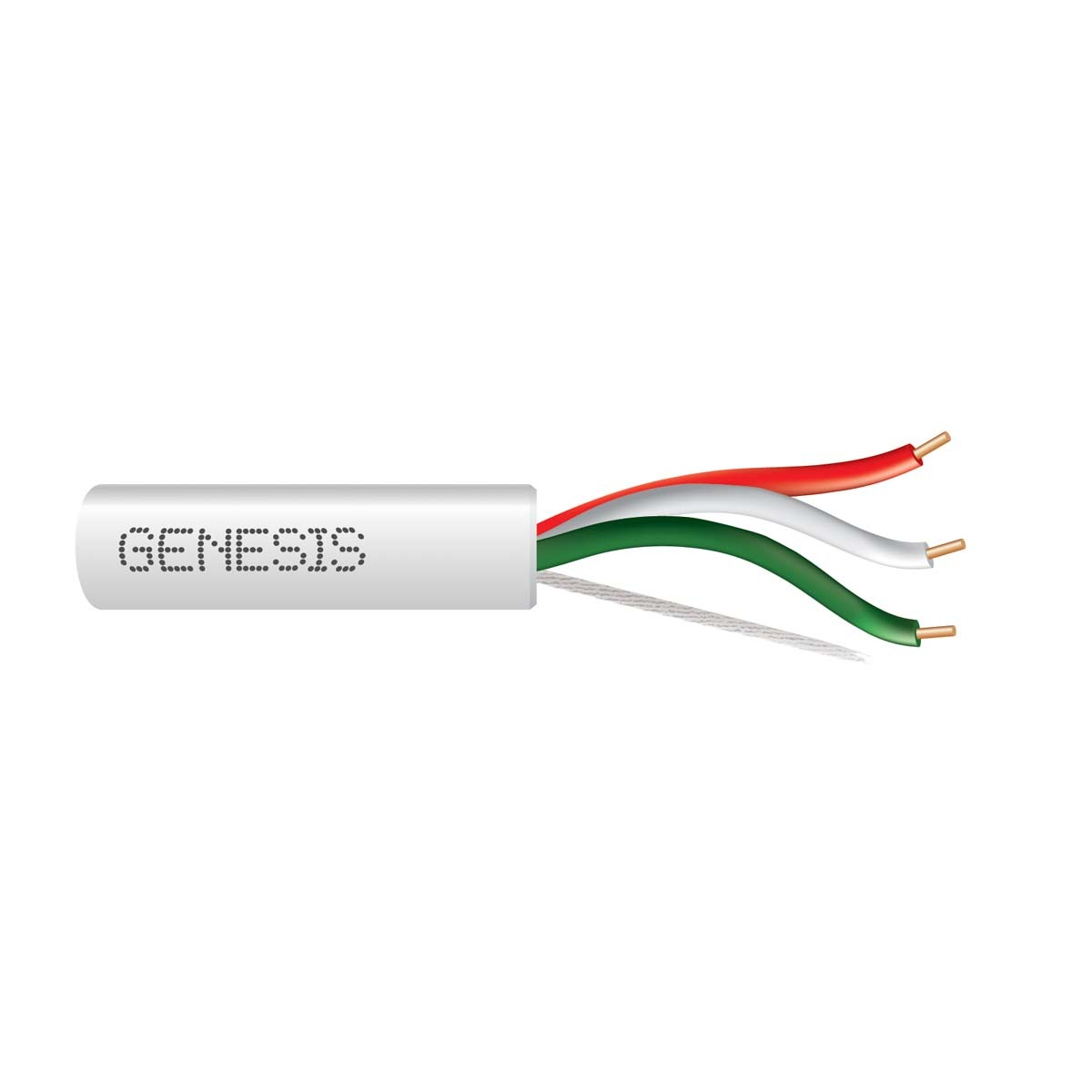

Genesis 47614812 thermostat cable 18 AWG

Product Description

The GENESIS 47614812 is a thermostat cable suitable for installation in fabricated ducts, risers, and within buildings. It features bare copper conductors for excellent conductivity and low voltage drop. The cable has a plenum PVC jacket and low-smoke PVC insulation. It is rated for 150 Volts and for temperatures from -20°C to 60°C.

• Bare copper conductors for excellent conductivity
• Plenum PVC jacket and low-smoke PVC insulation
• Temperature rating: -20°C to 60°C

Product Highlights

This thermostat cable ensures reliable performance in various installation environments, offering durability and safety with its plenum-rated construction.

Product Information

Standard Information

• Brand: GENESIS
• Manufacturer Part Number: 47614812
• Country of Origin: United States

Technical Specifications

• Brand Name: Genesis
• Manufacturer Part Number: 47614812
• Conductor Count: 3
• American Wire Gauge: 18AWG
• Number of Conductors: 3
• Cable Type: CMP/CL2P
• Capacitance Range: 39 pf/ft nom.
• Coil Length: 500'
• Flame/Smoke Rating: UL 910, NFPA 262, C(UL) FT6
• Insulation Type: Plenum Polyvinyl Chloride (PVC)
• Jacket Material: Plenum Polyvinyl Chloride (PVC)
• Prop 65: No
• Temperature Rating: -4°F to 140°F (-20°C to 60°C)
• UL Listed: No
• UPC: 619172042345
• UV Resistant: No
• Wire Gauge: 18 AWG
• Wire Type: Thermostat
• Country of Origin: USA
• Stranding: Solid
• Shielding: Unshielded
• Nominal Total Weight (lbs/1000'): 21
• Nominal Total Weight (kgs/km): 31
• Rated Voltage: 150 Volts
