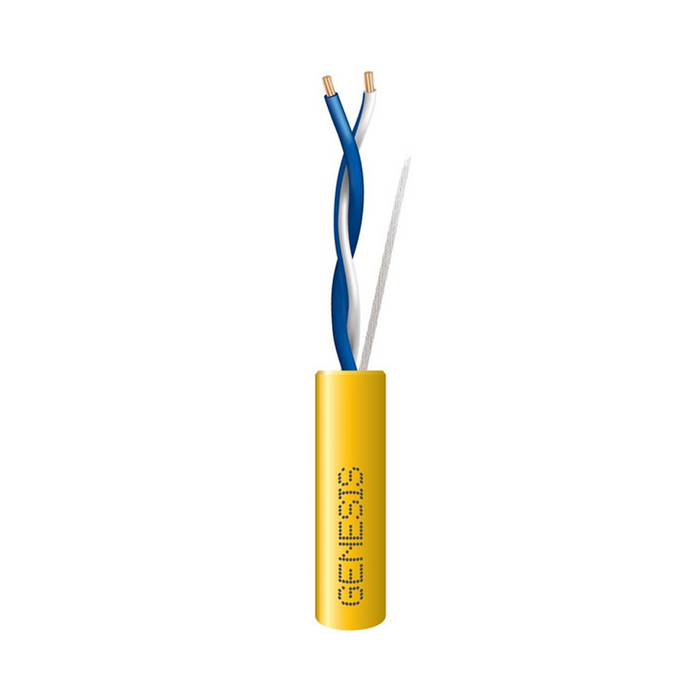

Genesis 32522102 Stranded Unshielded Cable 22/1 Stranded Plenum CMP/CL2P

Product Description

The GENESIS 32522102 is a high-performance, low-voltage 22/1 stranded unshielded cable designed for various applications. This cable is suitable for high-speed data transmission in Echelon LonWorks building automation systems. It features a plenum rating for use in air-handling spaces and is supplied on a 1000' reel-in-a-box.

• Stranded
• Plenum-Rated
• Echelon Lonworks Approved Wire

Product Highlights

Stranded unshielded cable with plenum rating, suitable for Echelon LonWorks networks and other low-voltage applications.

Product Information

Standard Information

• Brand: GENESIS
• Manufacturer Part Number: 32522102
• Country of Origin: United States

Technical Specifications

• Color: Yellow
• Features: Stranded
• Brand Name: Genesis
• Jacket Type: Plenum-rated PVC
• Cable Length: 1000'
• Manufacturer: Genesis Cable
• Package Type: Reel-in-a-Box
• Product Name: Control Cable
• Product Type: Control Cable
• ADI Part Number: WG-32522102
• Conductor Count: 1
• American Wire Gauge: 22AWG
• Number of Conductors: 1
• Connector on First End: Bare Wire
• Connector on Second End: Bare Wire
• Environmentally Friendly: Yes
• Manufacturer Part Number: 32522102
• Environmental Certification: ROHS
• Wire Type: Low Voltage
• Approvals: CL2P, CMP, Echelon Approved
• Conductor: Stranded Copper
• Rating: Plenum
• Insulation: FEP
• Standards: CMP, FT6
• Application: LonWorks networks
