Product Description

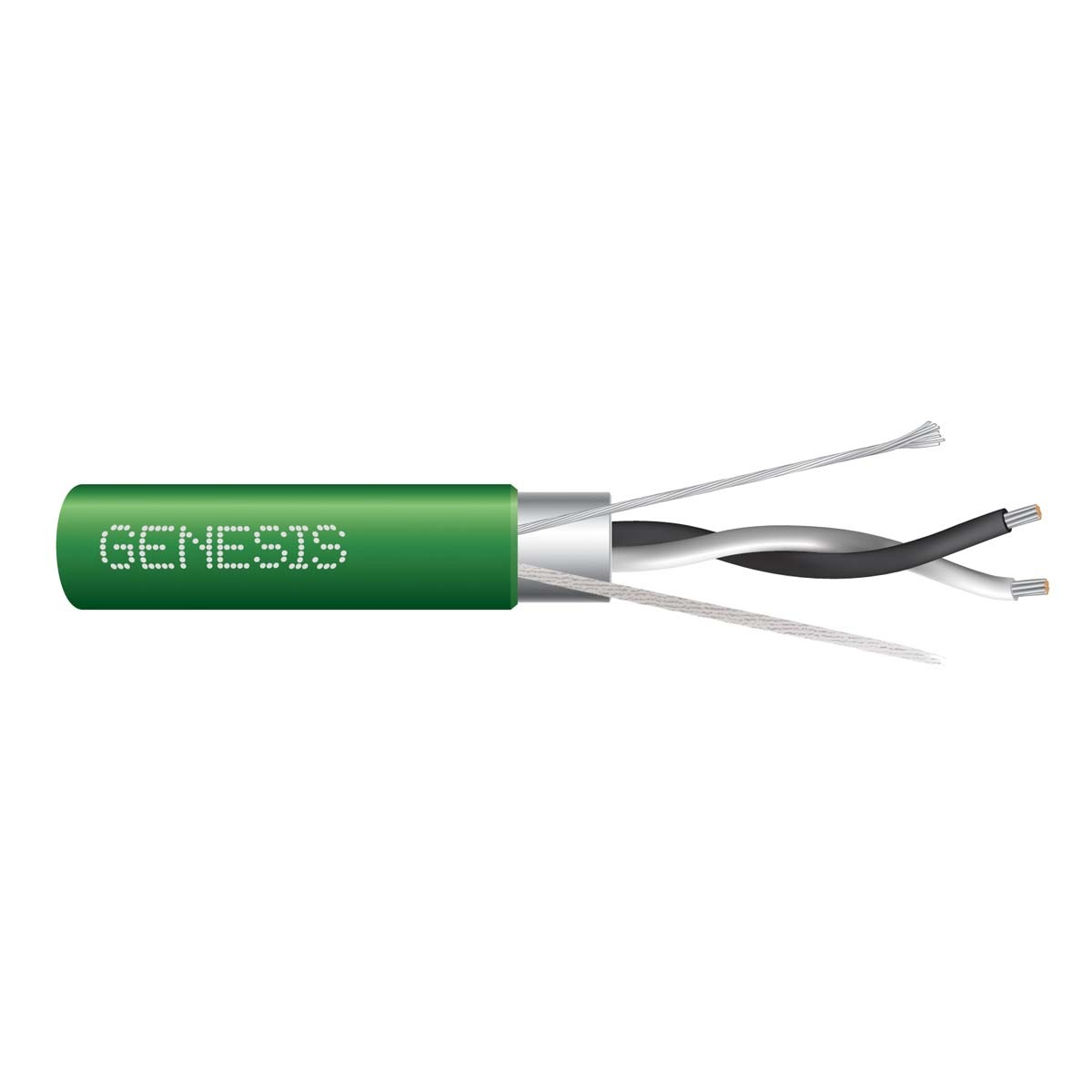

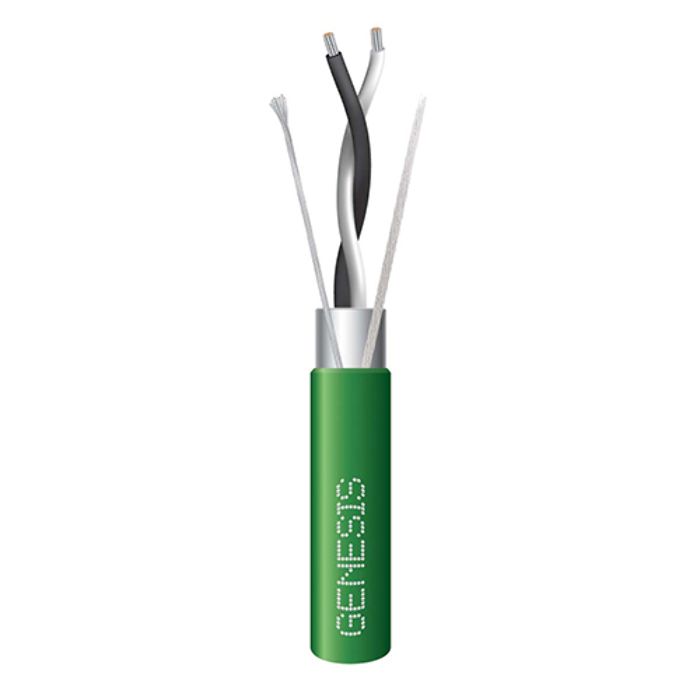

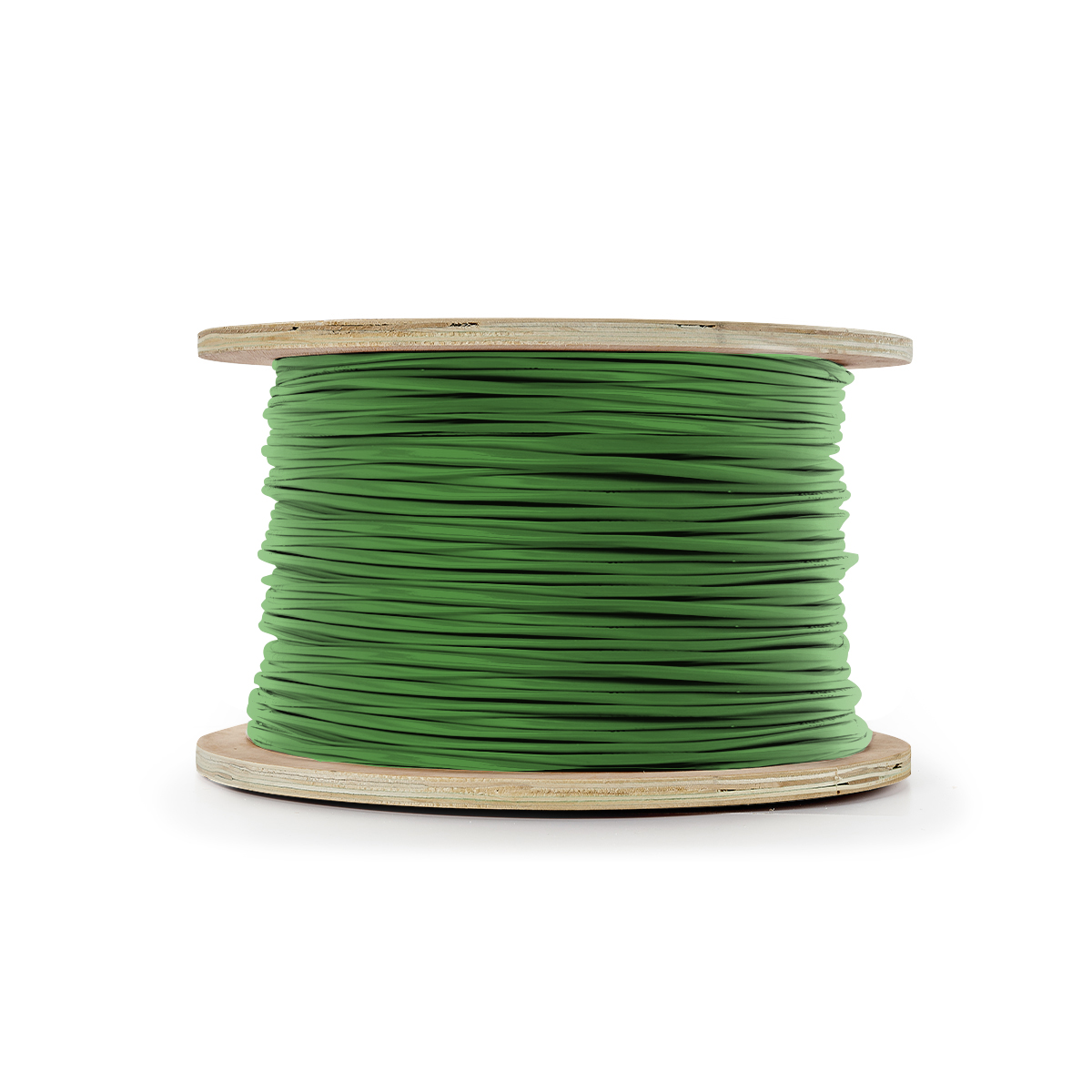

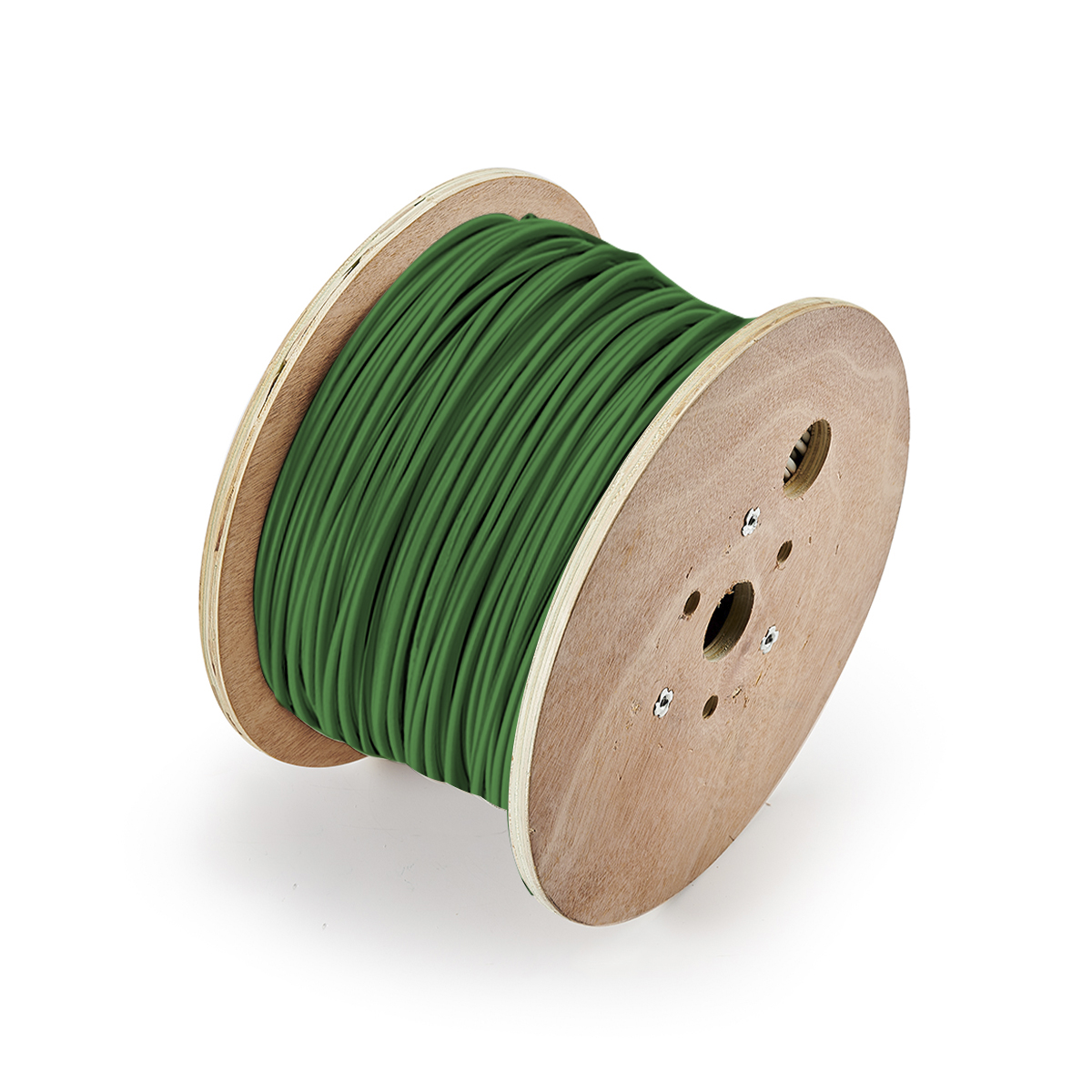

The GENESIS 32511005 cable features a stranded 22 AWG tinned-copper conductor-pair and an overall foil shield with a drain wire and a plenum rating. This cable is suitable for high-speed data transmission for building automation, EIA-485, BACnet, and other communication systems. It comes in a 1000' reel.
- Stranded tinned-copper conductors
- Overall foil shield
- Rated for plenum, riser, and general purpose indoor installation
Product Highlights
22 AWG, stranded, shielded cable with plenum rating, suitable for building automation and high-speed data transmission.
Product Information
Standard Information
-
Brand: GENESIS
-
Manufacturer Part Number: 32511005
-
Country of Origin: United States
Technical Specifications
-
Brand Name: Genesis
-
Cable Type: Multi-conductor/Multi-pair
-
Cable Length: 1000'
-
Manufacturer: Genesis Cable
-
Package Type: Reel
-
Product Line: Genesis
-
Product Name: 22 AWG 1P STR Shielded Plenum, Green, 1000 ft. Reel
-
Product Type: Access & Security Cable
-
Cable Listing: CL3P,CMP,FPLP,FT6
-
Product Model: 32511005
-
TAA Compliant: yes
-
Indoor/Outdoor: Indoor
-
ADI Part Number: WG-32511005
-
Number of Pairs: 1
-
Device Supported: Communication System
-
Cable Length (mm): 304800
-
Packaged Quantity: 1
-
Solid or Stranded: Stranded
-
Conductor Material: Tinned Copper
-
American Wire Gauge: 22AWG
-
Insulation Material: FEP
-
Number of Conductors: 2
-
Environmentally Friendly: Yes
-
Manufacturer Part Number: 32511005
-
Environmental Certification: ROHS
-
Features: Stranded
-
Material: Tinned Copper
-
Shielding: Yes
-
Jacket Type: Riser
-
Application: HVAC
-
Wire Type: Low Voltage
-
AWG: 22
-
Approvals: CL2P
OAS
CMP
-
Size (AWG or kcmil): 22 AWG
-
Stranding: Stranded
-
Nom. OD (mils): 185
-
Nominal Total Weight (lbs/1000'): 19
-
Armored: No
-
Cable Rating: Plenum
-
Impedance: 120 ohms
-
Jacket Material: LS-PVC
-
Country of Origin: US
-
Connector on First End: Bare Wire
-
Connector on Second End: Bare Wire
