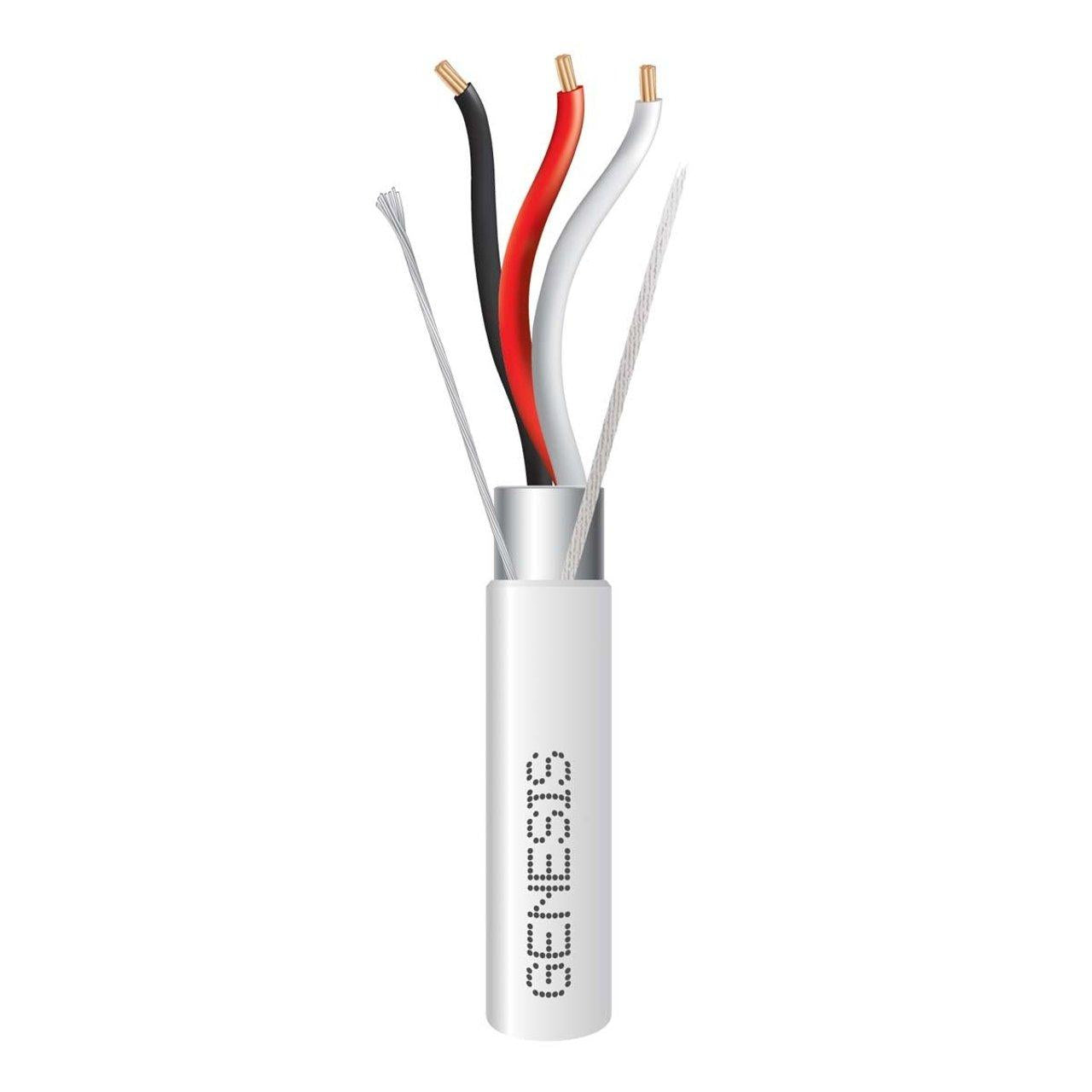

Genesis 32260312 18 AWG 3C Stranded Shielded Plenum Cable, Natural White, x 250 ft. Reels

Product Description

The Genesis 32260312 cable features 3 stranded 18 AWG copper conductors, an overall foil shield with a drain wire, and a plenum rating. This cable provides a dependable connection for security, controls, audio, and other low-voltage applications. It has a 250 ft length and natural jacket color.

• Stranded bare copper conductors
• Overall foil shield
• Rated for plenum, riser, and general purpose indoor installation

Product Highlights

This Genesis cable is ideal for security, control, and audio applications requiring a plenum-rated cable with a shielded design.

Product Information

Standard Information

• Brand: GENESIS
• Manufacturer Part Number: 32260312
• Country of Origin: United States

Technical Specifications

• Brand Name: Genesis
• Cable Length: 250'
• Package Type: Reel
• ADI Part Number: WG-32260312
• Conductor Count: 3
• American Wire Gauge: 18AWG
• Number of Conductors: 3
• Manufacturer Part Number: 32260312
• Color: White
• Length: 250 ft
• Shielded: Yes
• Packaging: Reel
• Gauge (AWG): 18
• Jacket Color: Natural
• Jacket Rating: Plenum
• Conductor Type: Stranded
• Insulation Material: Plenum PVC
• Outside Diameter: 0.166 in
• Resistance: 6.66 Ohm/1000 ft at 20 deg C
• Series: 3226
• Strands: 19
• Temperature Rating: -20 to 75 deg C
• Type: Multipurpose
• Voltage Rating: 300 V
