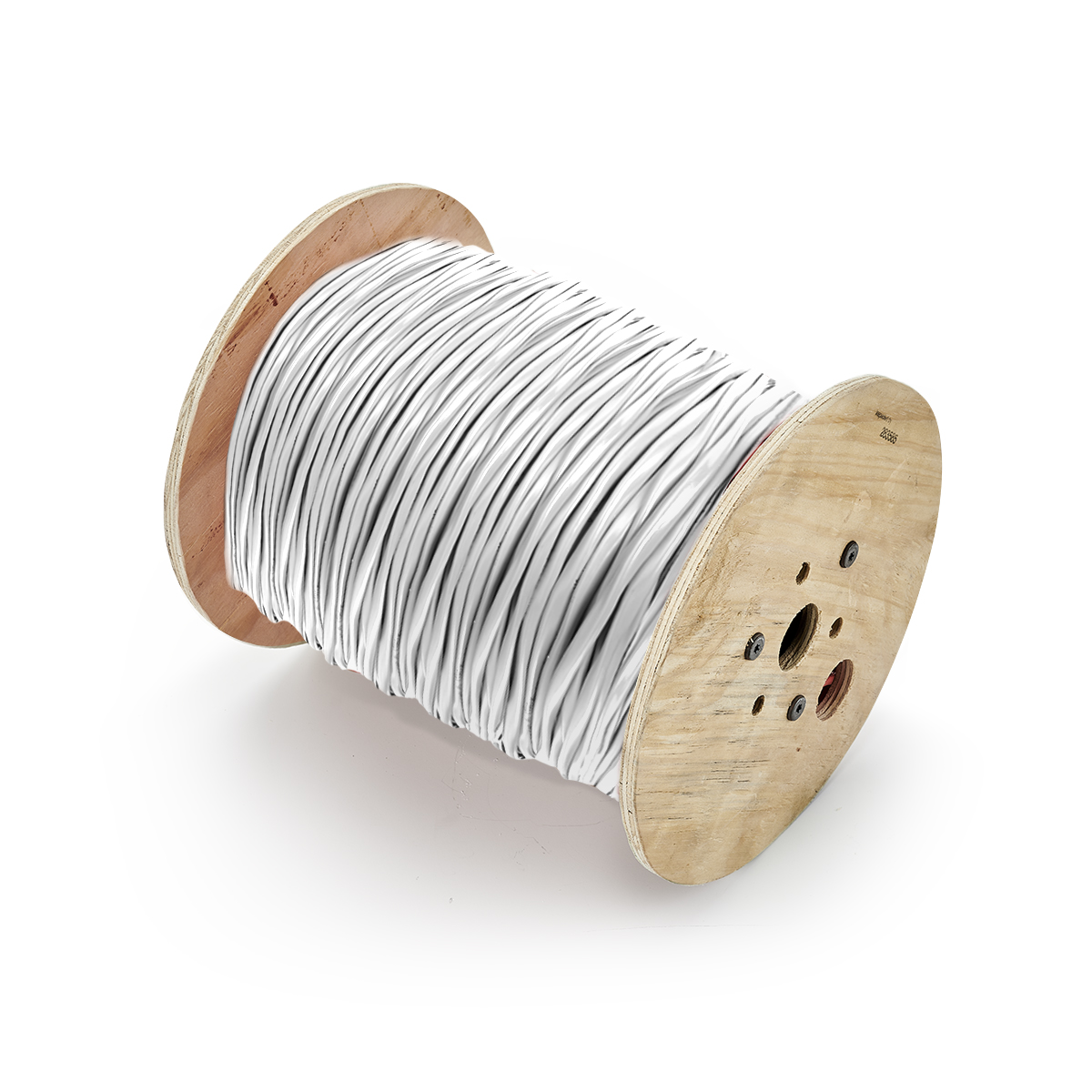

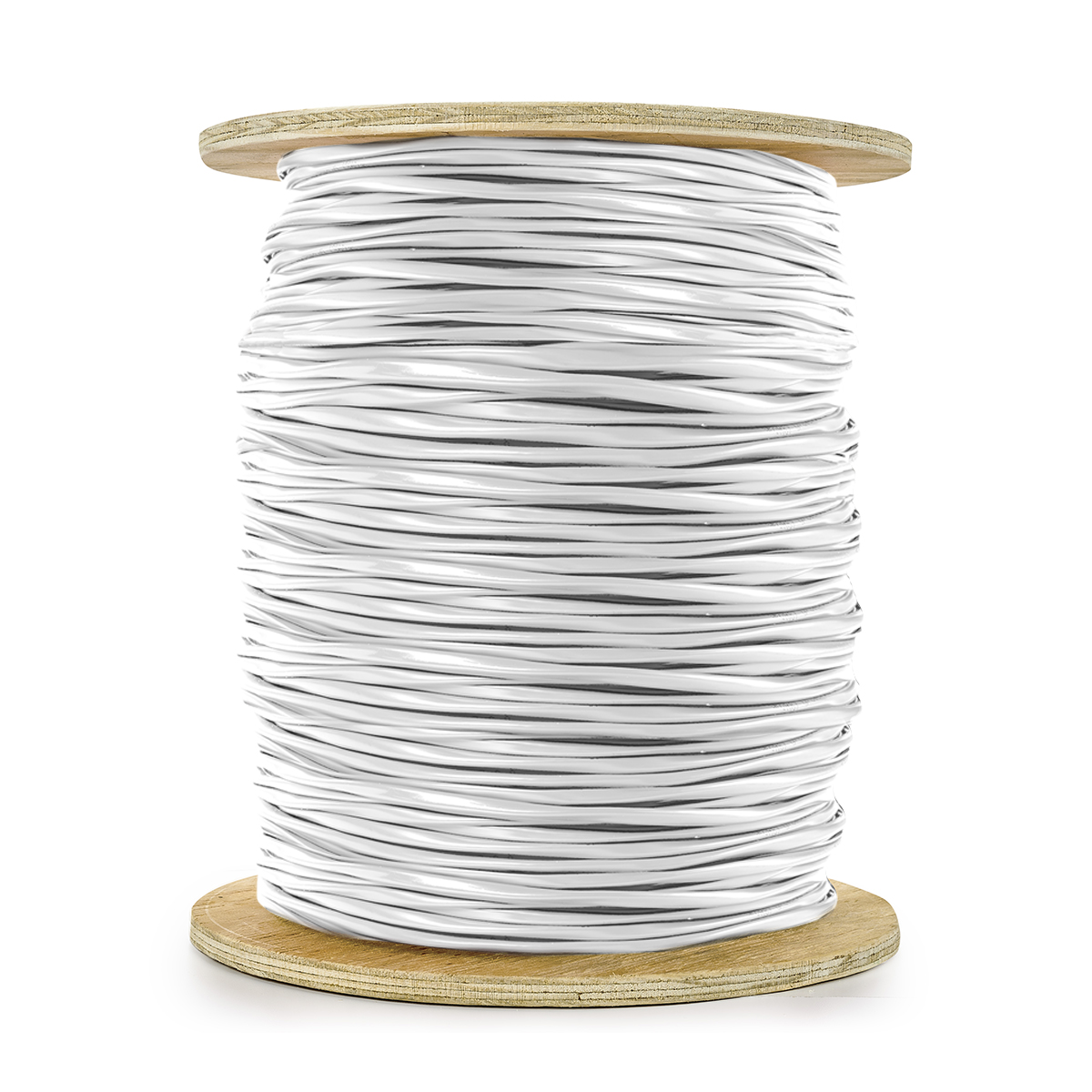

Genesis 32171012 18/8 Stranded Shielded Plenum Cable, CL3P, FPLP, CMP, FT6, 1000 feet Reel

Product Description

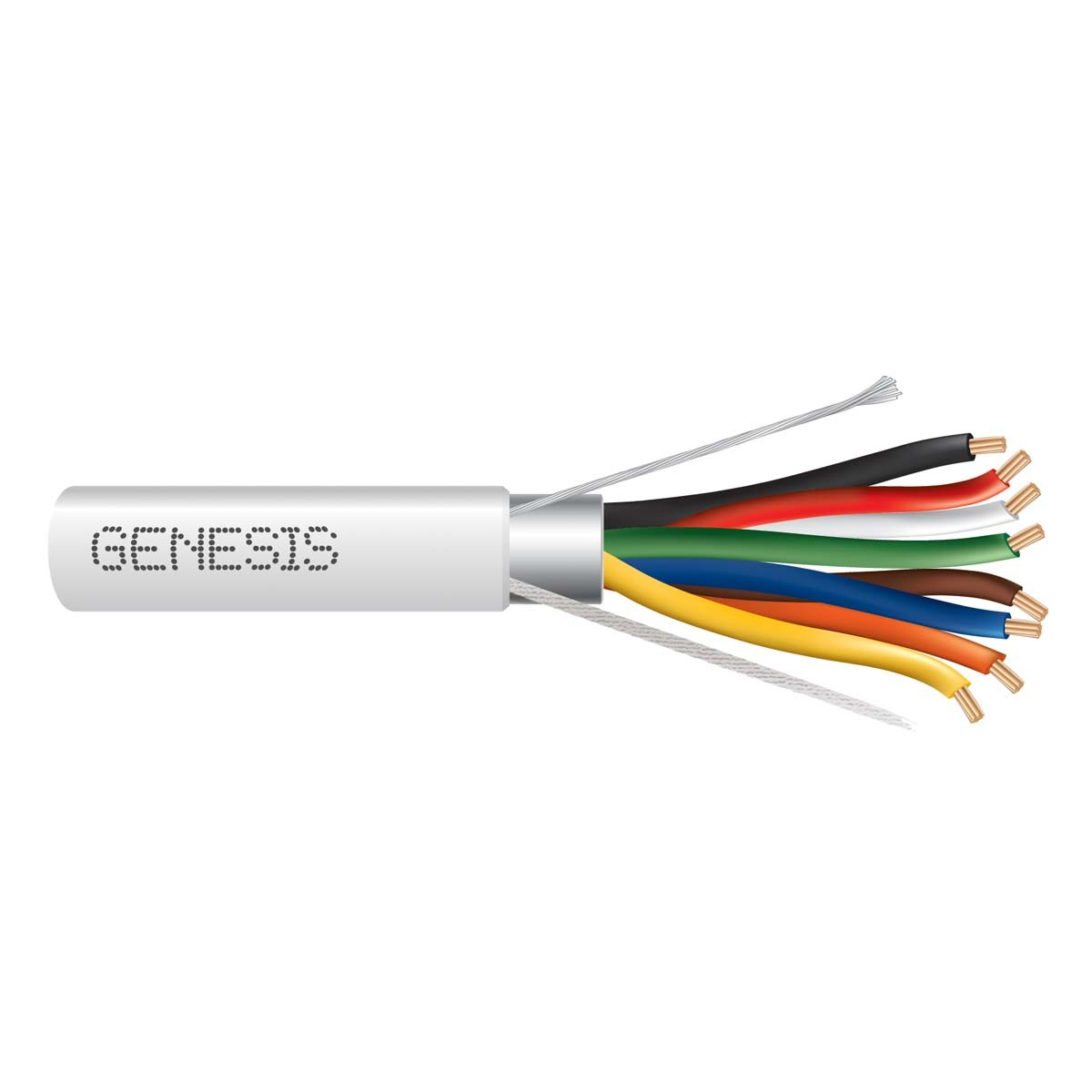

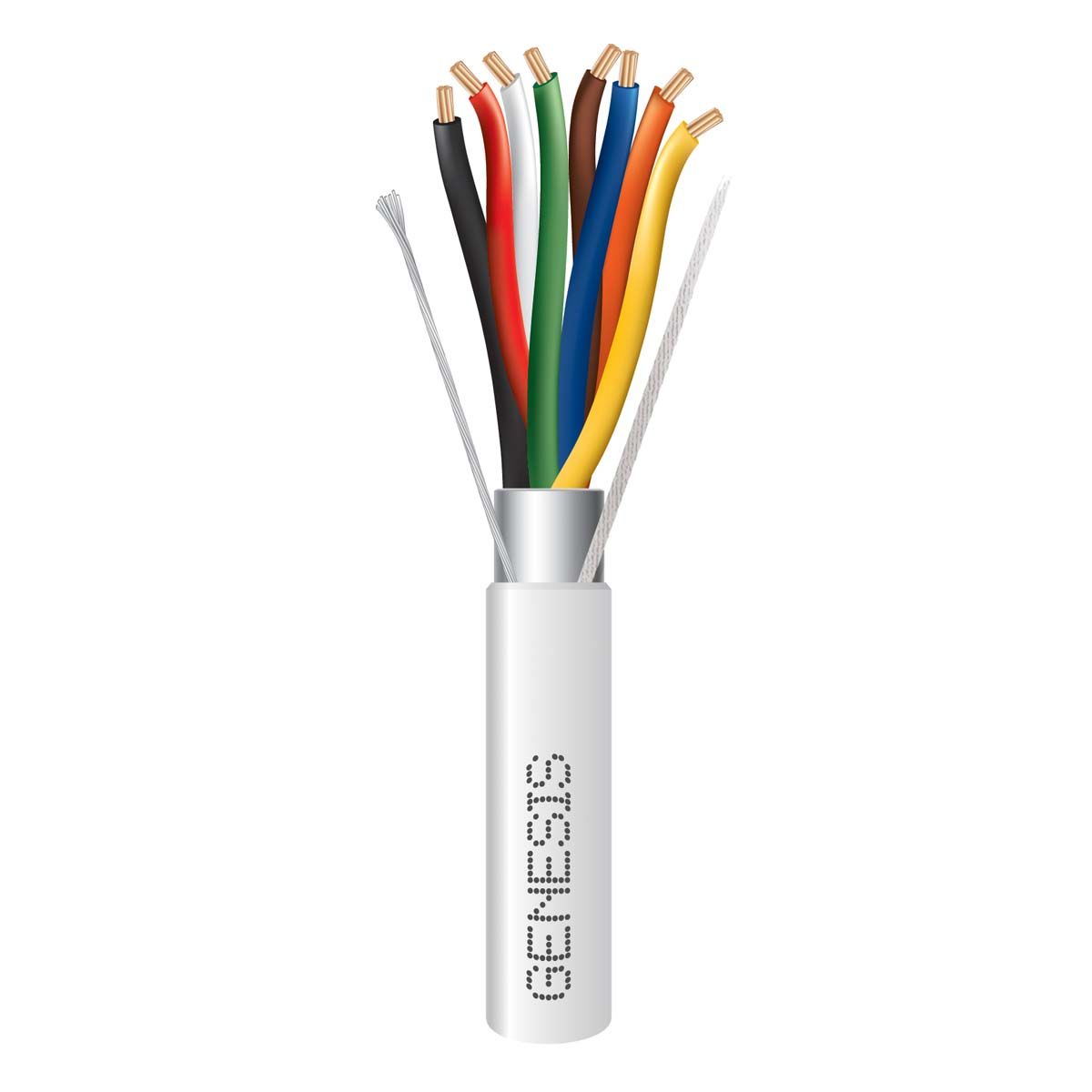

The Genesis 32171012 cable features 8 stranded 18 AWG copper conductors, an overall foil shield with a drain wire, and a plenum rating. This cable provides a dependable connection for security, controls, audio, and other low-voltage applications. It is suitable for installation in ducts, environmental air spaces, and risers.

• Stranded bare copper conductors
• Overall foil shield
• Rated for plenum, riser, and general purpose indoor installation

Product Highlights

This cable ensures reliable performance in security, control, and audio systems, featuring stranded conductors and a foil shield for optimal signal protection.

Product Information

Standard Information

• Brand: GENESIS
• Manufacturer Part Number: 32171012
• Country of Origin: United States

Technical Specifications

• Brand Name: Genesis
• Cable Type: Multi-conductor/Multi-pair
• Cable Length: 1000'
• Manufacturer: Genesis Cable
• Package Type: Reel
• Product Name: 32171012 Control Cable
• Product Type: Access & Security Cable
• Cable Listing: CL3P,CMP,FPLP,FT6
• Product Model: 32171012
• TAA Compliant: yes
• Indoor/Outdoor: Indoor
• ADI Part Number: WG-32171012
• Conductor Count: 8
• Number of Pairs: 1
• Device Supported: Burglar Alarm,Phone,Speaker
• Cable Length (mm): 304800
• Packaged Quantity: 1
• Solid or Stranded: Stranded
• Conductor Material: Bare Copper
• American Wire Gauge: 18AWG
• Insulation Material: LS-PVC
• Number of Conductors: 8
• Environmentally Friendly: Yes
• Manufacturer Part Number: 32171012
• Environmental Certification: ROHS
• Features: Stranded
• Shielding: Yes
• Jacket Type: Riser
• Gauge (AWG): 18
• Jacket Rating: Plenum
• Conductor Type: Stranded
• Size (AWG or kcmil): 18 AWG
• Stranding: Stranded
• Nominal Total Weight (lbs/1000'): 57
• Nominal Total Weight (kgs/km): 85
• Part Number: 3217
• Conductor: 18 AWG 19 Strand Bare Copper
• Insulation: Plenum PVC (0.007" nom.)
• Insulation Colors: Black, Red
• Lay Length: 4.75" nom.
• Operating Voltage: 300 Volts max.
• DC Resistance: 6.66 Ohms/1000' at 20°C
• Capacitance: 32.2 pF/ft. nom.
• Impedance: 41 Ohms nom.
• Temperature: -20°C to 75°C
• Flame Rating: NFPA 262 (Plenum); CSA C22.2 No. 2556 (FT6)
• Jacket Material: LS-PVC
• Length: 1,000ft
