Product Description

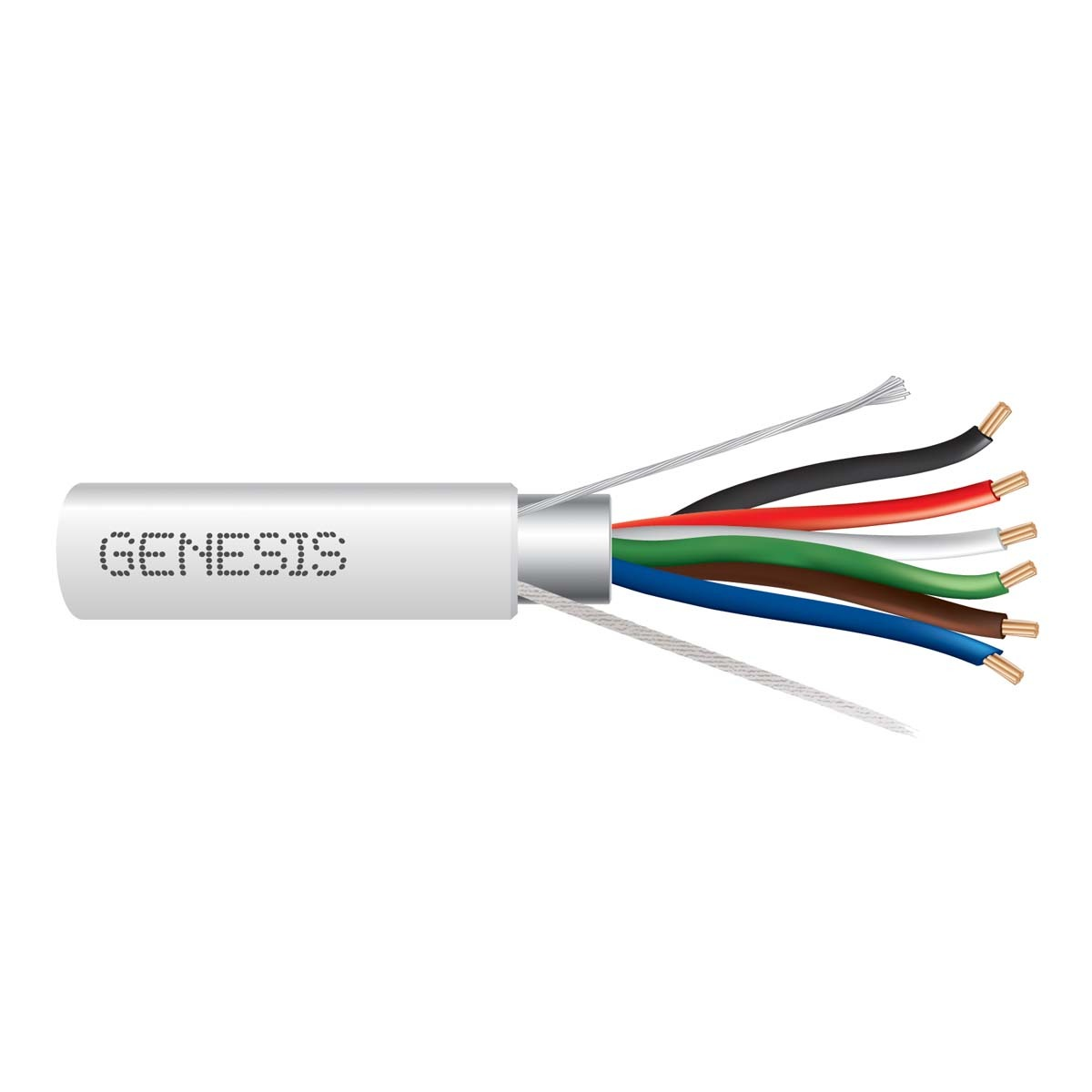

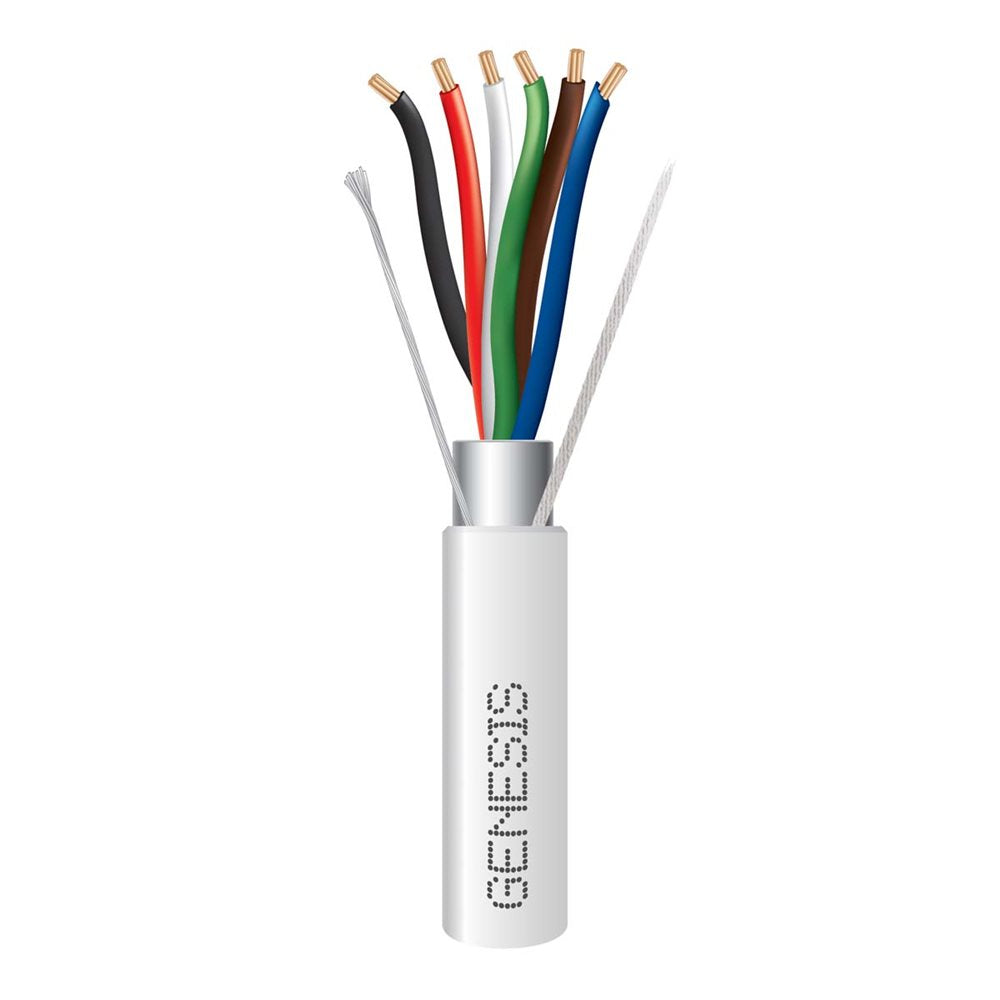

The Genesis 32161012 cable features 6 stranded 18 AWG copper conductors, an overall foil shield with a drain wire, and a plenum rating. This cable provides a dependable connection for security, controls, audio, and other low-voltage applications. It is suitable for installation in fabricated ducts, environmental air spaces, and risers.
- Stranded bare copper conductors
- Overall foil shield
- Rated for plenum, riser, and general purpose indoor installation
Product Highlights
This Genesis cable is ideal for minimizing electrical noise and interference to protect sensitive signals in security, control, and audio systems.
Product Information
Standard Information
-
Brand: GENESIS
-
Manufacturer Part Number: 32161012
-
Country of Origin: United States
Technical Specifications
-
Brand Name: Genesis
-
Cable Type: Multi-conductor/Multi-pair
-
Cable Length: 1000'
-
Manufacturer: Genesis Cable
-

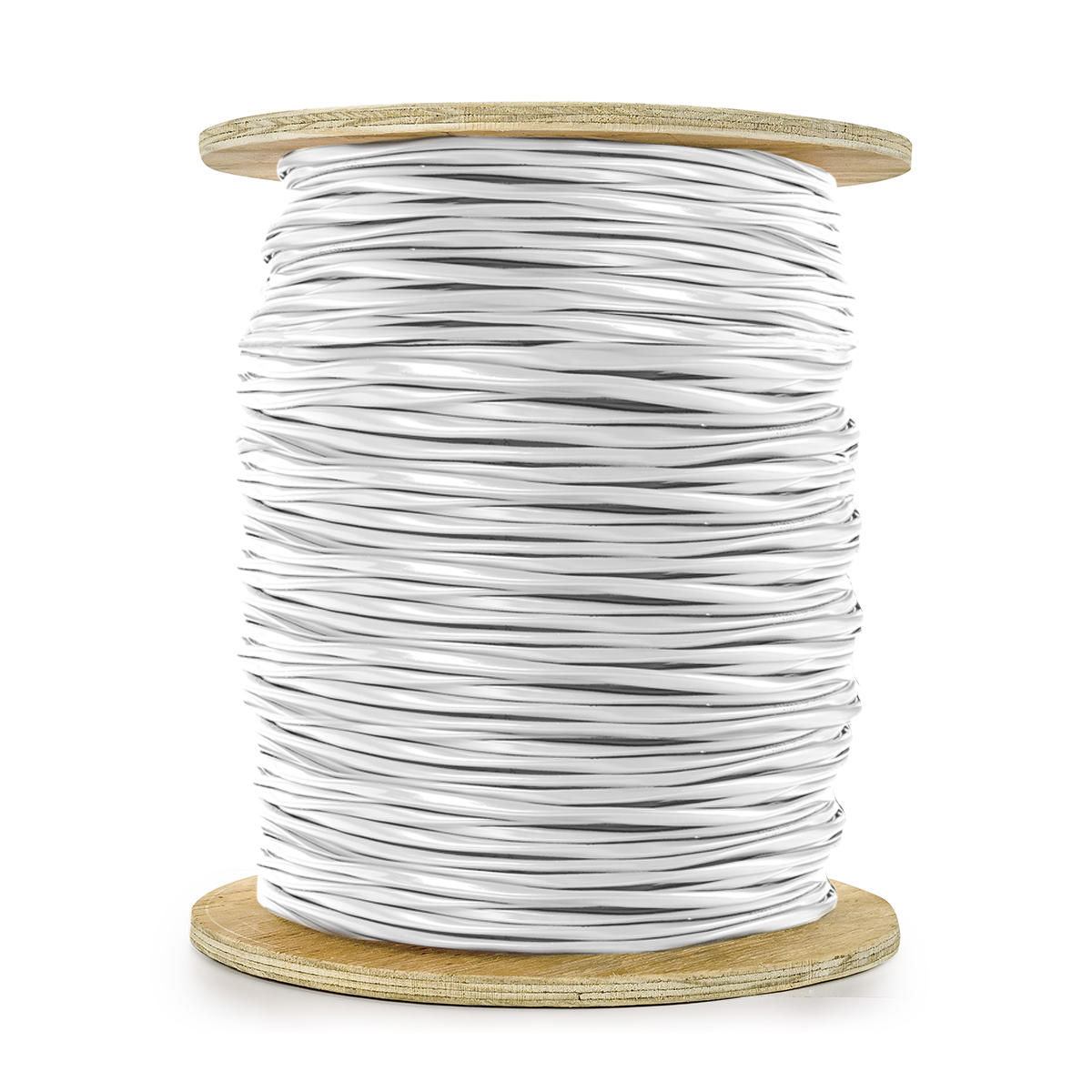

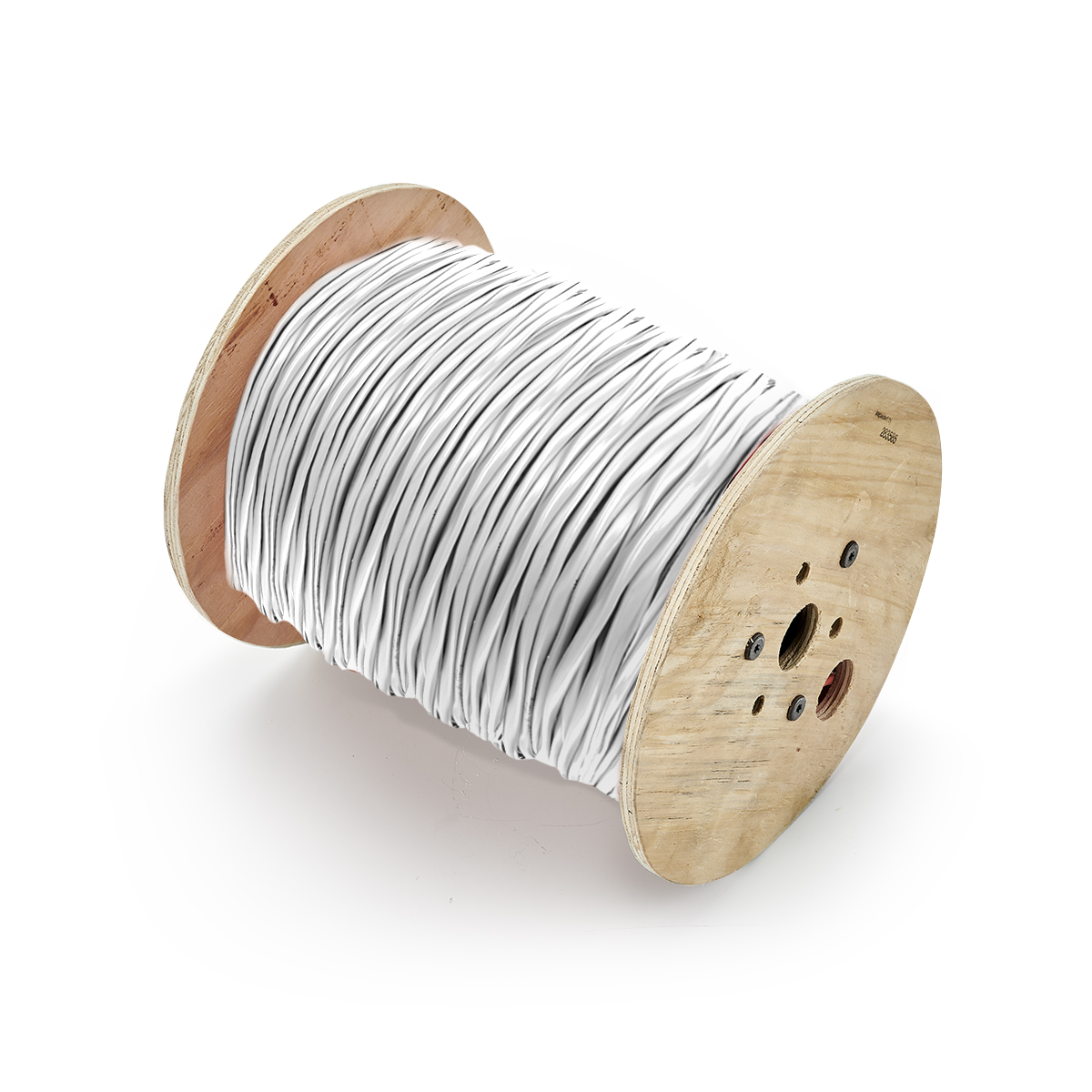

Package Type: Reel
-
Product Name: 32161012 Control Cable
-
Product Type: Access & Security Cable
-
American Wire Gauge: 18AWG
-
Cable Listing: CL3P,CMP,FPLP,FT6
-
Product Model: 32161012
-
TAA Compliant: yes
-
Number of Conductors: 6
-
Indoor/Outdoor: Indoor
-
ADI Part Number: WG-32161012
-
Conductor Count: 6
-
Device Supported: Burglar Alarm, Intercom, Phone, Speaker
-
Cable Length (mm): 304800
-
Packaged Quantity: 1
-
Solid or Stranded: Stranded
-
Conductor Material: Bare Copper
-
Insulation Material: LS-PVC
-
Environmentally Friendly: Yes
-
Manufacturer Part Number: 32161012
-
Environmental Certification: ROHS
-
Features: Stranded
-
Material: Bare Copper
-
Impedance: 41 ohms
-
Shielding: Yes
-
Jacket Type: Riser
-
Size (AWG or kcmil): 18 AWG
-
Size (mm2): 18 AWG
-
Stranding: Stranded
-
Nominal Total Weight (lbs/1000'): 44 lbs/1000'
-
Nominal Total Weight (kgs/km): 66 kgs/km
-
Gauge (AWG): 18
-
Jacket Rating: Plenum
-
Conductor Type: Stranded
-
UPC: 619172015905
-
Capacitance: 32.2 pF/ft Nominal
-
Conductors: 18 AWG, 19 Strand, Bare Copper
-
Temperature: -4°F (-20°C) Min, 167°F (75°C) Max
-
Voltage: 300V Max
-
Connector on First End: Bare Wire
-
Connector on Second End: Bare Wire
