Genesis 32150312 18/4 Stranded Shielded Plenum Cable 250 feet

Product Description

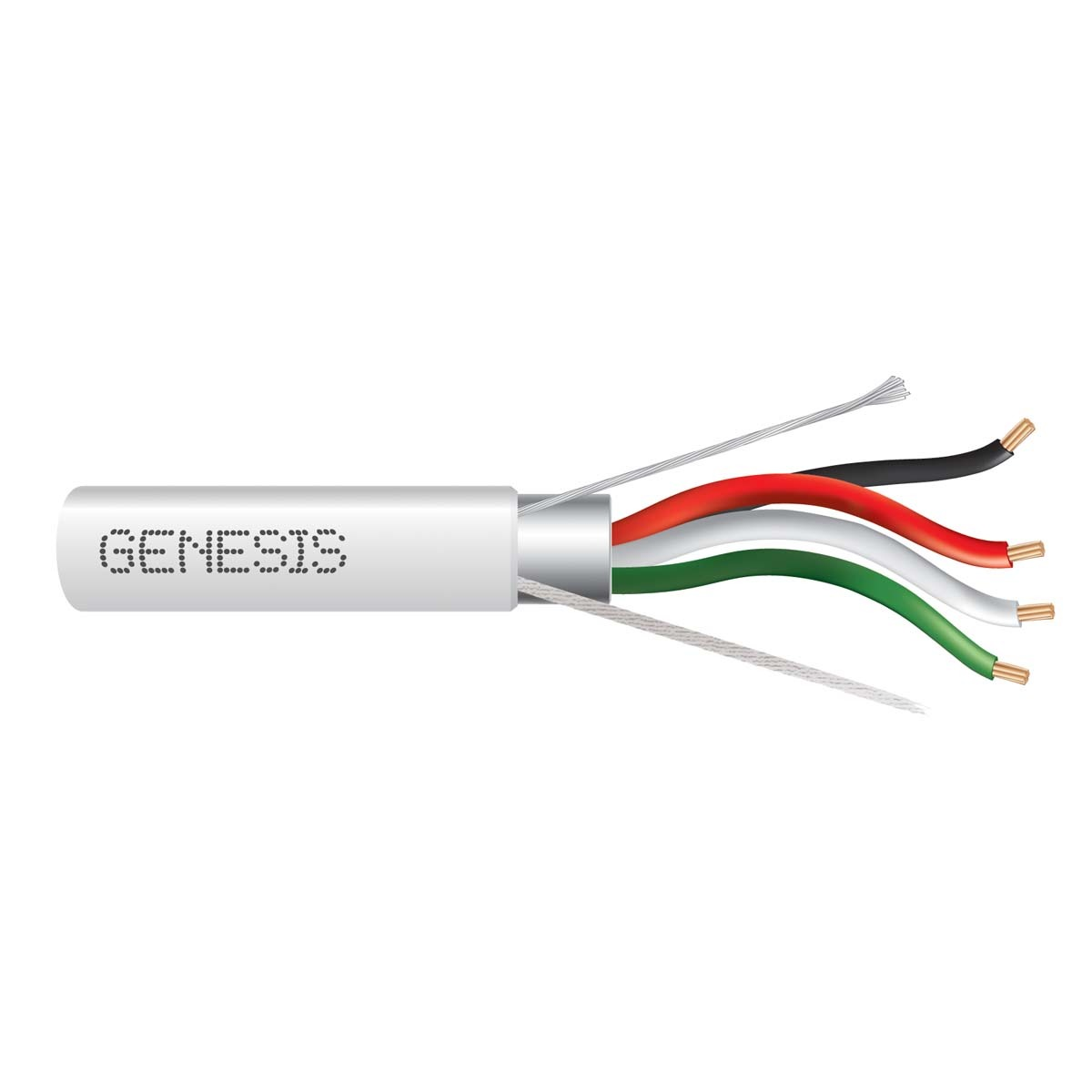

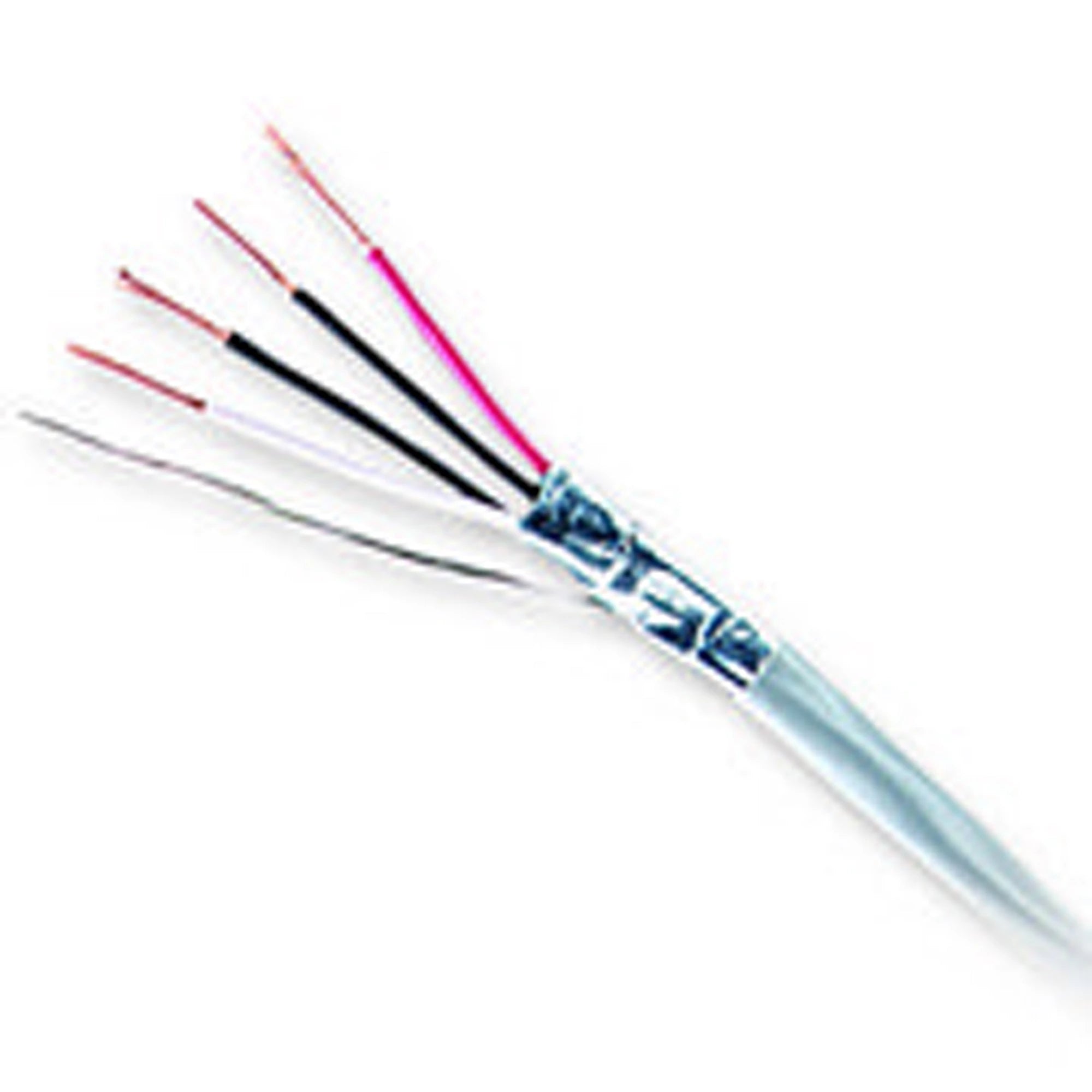

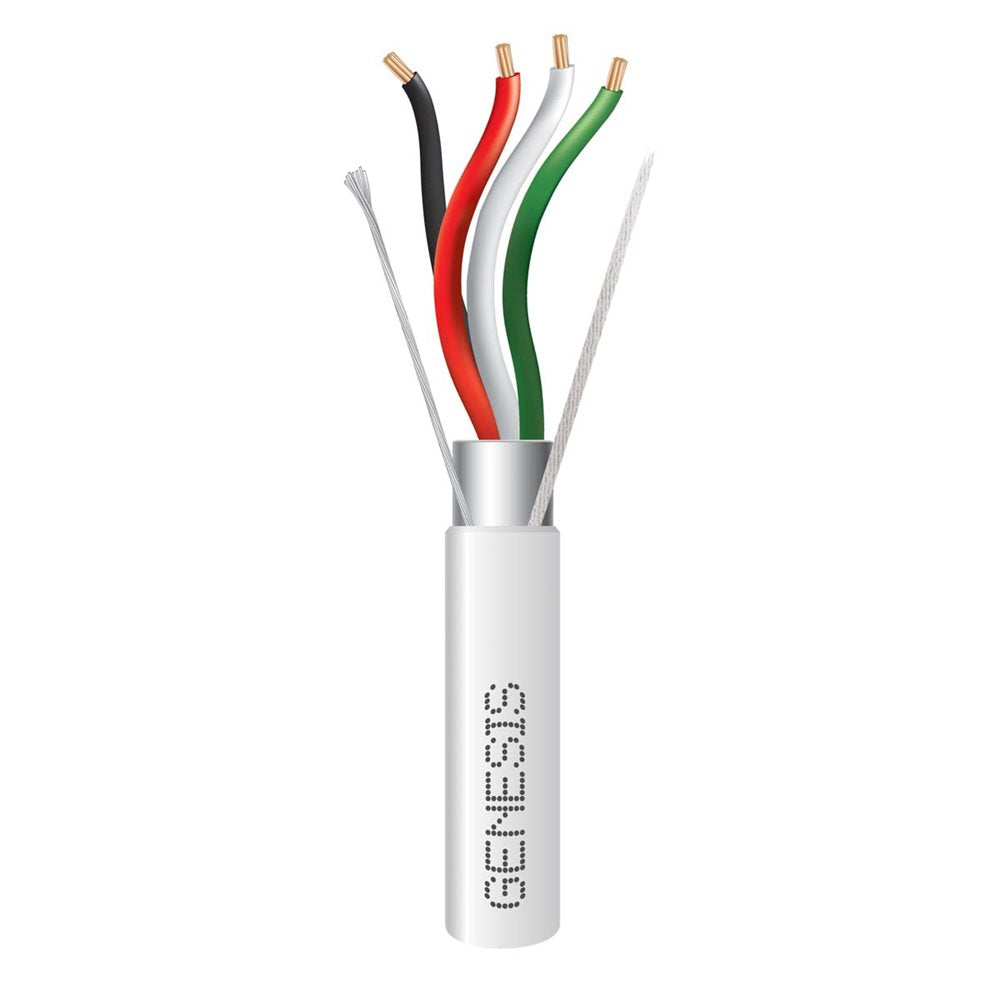

The Genesis 32150312 cable features 4 stranded 18 AWG copper conductors, an overall foil shield with a drain wire, and a plenum rating. This cable provides a dependable connection for security, controls, audio, and other low-voltage applications. It is suitable for indoor installation.

• Stranded bare copper conductors
• Overall foil shield
• Rated for plenum, riser, and general purpose indoor installation

Product Highlights

This Genesis cable is ideal for security, control, and audio applications, ensuring reliable low-voltage connections.

Product Information

Standard Information

• Brand: GENESIS
• Manufacturer Part Number: 32150312
• Country of Origin: United States

Technical Specifications

• Color: Natural
• Features: Stranded
• Material: Bare Copper
• Shielding: Yes
• Brand: GENESIS
• Cable Type: Multi-conductor/Multi-pair
• Jacket Type: Riser
• Cable Length: 250'
• Manufacturer: Genesis Cable
• Package Type: Reel
• Product Name: 32150312 - 18 AWG 4C Str Shielded Plenum, Natural, 4 x 250 ft. Reels
• Product Type: Access & Security Cable
• Cable Listing: CL3P,CMP,FPLP,FT6
• Product Model: 32150312
• TAA Compliant: yes
• Indoor/Outdoor: Indoor
• ADI Part Number: WG-32150312
• Conductor Count: 4
• Number of Pairs: 2
• Device Supported: Audio Device,Control System,Security Device
• Cable Length (mm): 76200
• Packaged Quantity: 4
• Solid or Stranded: Stranded
• Conductor Material: Bare Copper
• American Wire Gauge: 18AWG
• Insulation Material: LS-PVC
• Number of Conductors: 4
• Core/Cladding Diameter: 18/4
• Environmentally Friendly: Yes
• Manufacturer Part Number: 32150312
• Environmental Certification: ROHS
• Capacitance Range: 60 pf/ft nom.
• Coil Length: 250'
• Flame/Smoke Rating: UL910, CSA FT6, NFPA 262
• Height: 6.625
• Insulation Type: Plenum Polyvinyl Chloride (PVC)
• Jacket Material: Plenum Polyvinyl Chloride (PVC)
• Length: 13.625
• Package Height: 6.625
• Package Length: 13.625
• Package Weight: 32.722
• Package Width: 13.625
• Prop 65: No
• Temperature Rating: -4°F to 140°F (-20°C to 60°C)
• UL Listed: No
• UOM: RL
• UPC: 781410886452
• UV Resistant: No
• Width: 13.625
• Wire Gauge: 18 AWG
• Wire Type: Thermostat
• Country of Origin: USA
• Gauge (AWG): 18
• Jacket Rating: Plenum
• Packaging: Reel
• Size (AWG or kcmil): 18 AWG
• Size (mm2): 18 AWG
• Stranding: Stranded
• Nominal Total Weight (lbs/1000'): 31
• Nominal Total Weight (kgs/km): 47
