Genesis 32142112 18/2 Stranded OAS CMP/FT6 Cable, 1000 feet Reel

Product Description

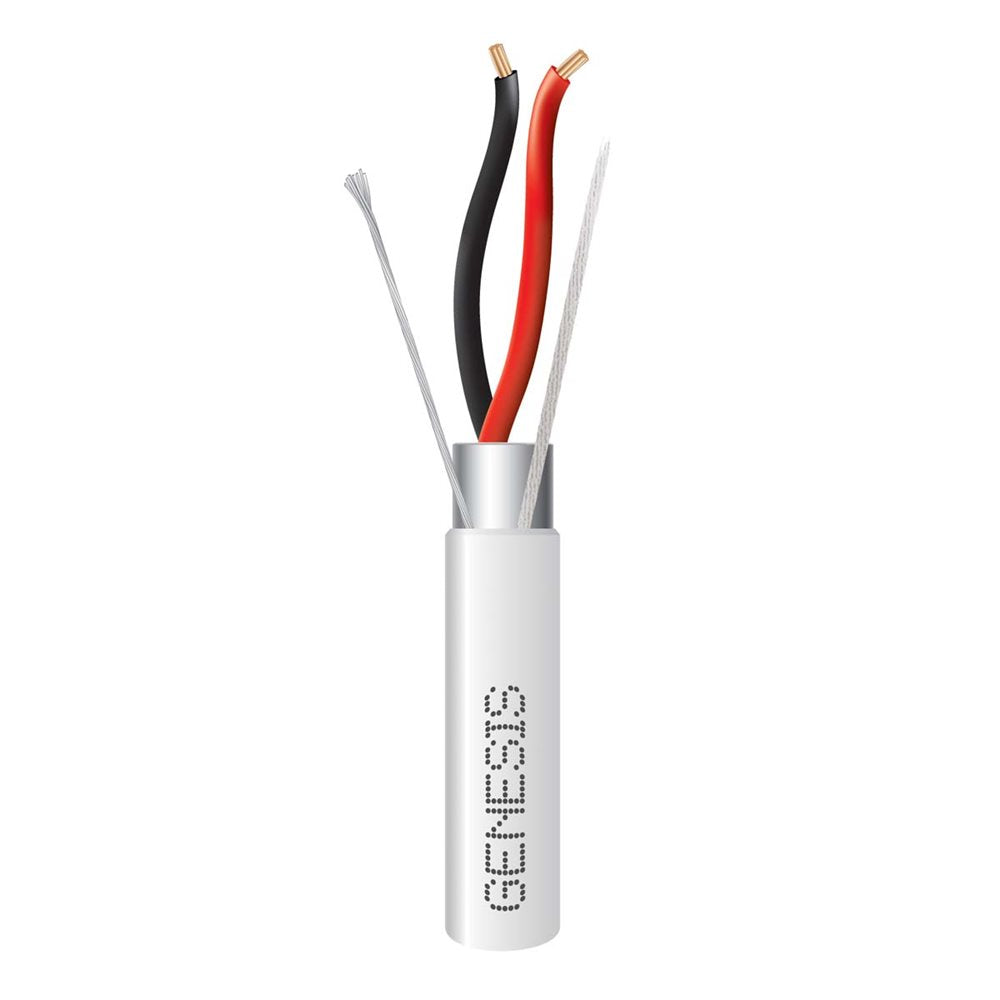

The Genesis 32142112 cable features 2 stranded 18 AWG copper conductors, an overall foil shield with a drain wire, and a plenum rating. This twisted, shielded cable is designed for low-voltage control and signal lines in plenum spaces, making it suitable for security, controls, audio, and other low-voltage applications. Ideal for HVAC controls, communicating thermostats and security.

• Features 2 stranded 18 AWG copper conductors.
• Equipped with an overall foil shield and drain wire.
• CMP/FT6 plenum rated for use in environmental air spaces.

Product Highlights

18 AWG, 2-conductor cable with CMP/FT6 plenum rating and stranded bare copper conductors. Ideal for low-voltage control and signal lines.

Product Information

Standard Information

• Brand: GENESIS
• Manufacturer Part Number: 32142112
• Country of Origin: United States

Technical Specifications

• Brand Name: Genesis
• Manufacturer Part Number: 32142112
• Cable Type: Bare Wire
• Jacket Type: CMP,FT6,Plenum
• Cable Length: 1000'
• Manufacturer: Genesis Cable
• Product Name: Bare Wire Audio/Control Cable
• Product Type: Audio/Control Cable
• ADI Part Number: WG-32142112
• Device Supported: Audio System,Security System
• Cable Length (mm): 304800
• Solid or Stranded: Stranded
• American Wire Gauge: 18AWG
• Insulation Material: PVC
• Environmentally Friendly: Yes
• Environmental Certification: ROHS
• Features: Stranded
• Shielding: Yes
• Length: 1,000ft

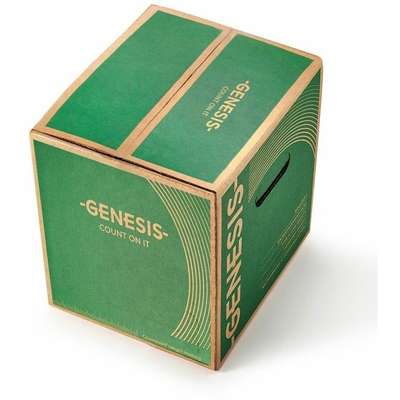

• Packaging: Reel in Box
• Conductors: 2
• Gauge (AWG): 18
• Jacket Color: Natural
• Jacket Rating: Plenum
• Construction: 18 AWG, 2 Stranded Conductors, Shielded
• Ratings: CMP, CL3P, FPLP, FT6
• Approvals: ETL Listed
• Conductor: 18 AWG, 19-Strand Bare Copper
• Conductor Count: 2
• Insulation: Plenum PVC (0.007″ nom.)
• Insulation Colors: Black, Red
• Lay Length: 2.25″ nom.
• Shielding Material: Foil
• Rip Cord: Yes
• Jacket: Plenum PVC (0.015″ nom.)
• Overall Diameter: 0.156″ nom.
• Print Legend: GENESIS P/N 3214 2C 18AWG SHIELDED 3038058 (ETL) CL3P OR FPLP FT6 75C (RoHS) W/O# XXXXXX-XXXXXXX XXXXFT A B C D E F 1 2 3 4 5 6 7 8 9
• Operating Voltage: 300 Volts max.
• DC Resistance: 6.66 Ohms/1000′ at 20°C
• Capacitance: 59.3 pF/ft Nominal
• Impedance: 31 Ohms nom.
• Temperature Range: -20°C to 75°C
• Flame Rating: NFPA 262 (Plenum); CSA C22.2 No. 2556 (FT6)
• RoHS Compliant: Yes
• Country of Origin: USA
• Temperature: -4°F (-20°C) Min, 167°F (75°C) Max
• Voltage: 300V Max
• Number of Conductors: 2
• Insulation Color: Black, Red
