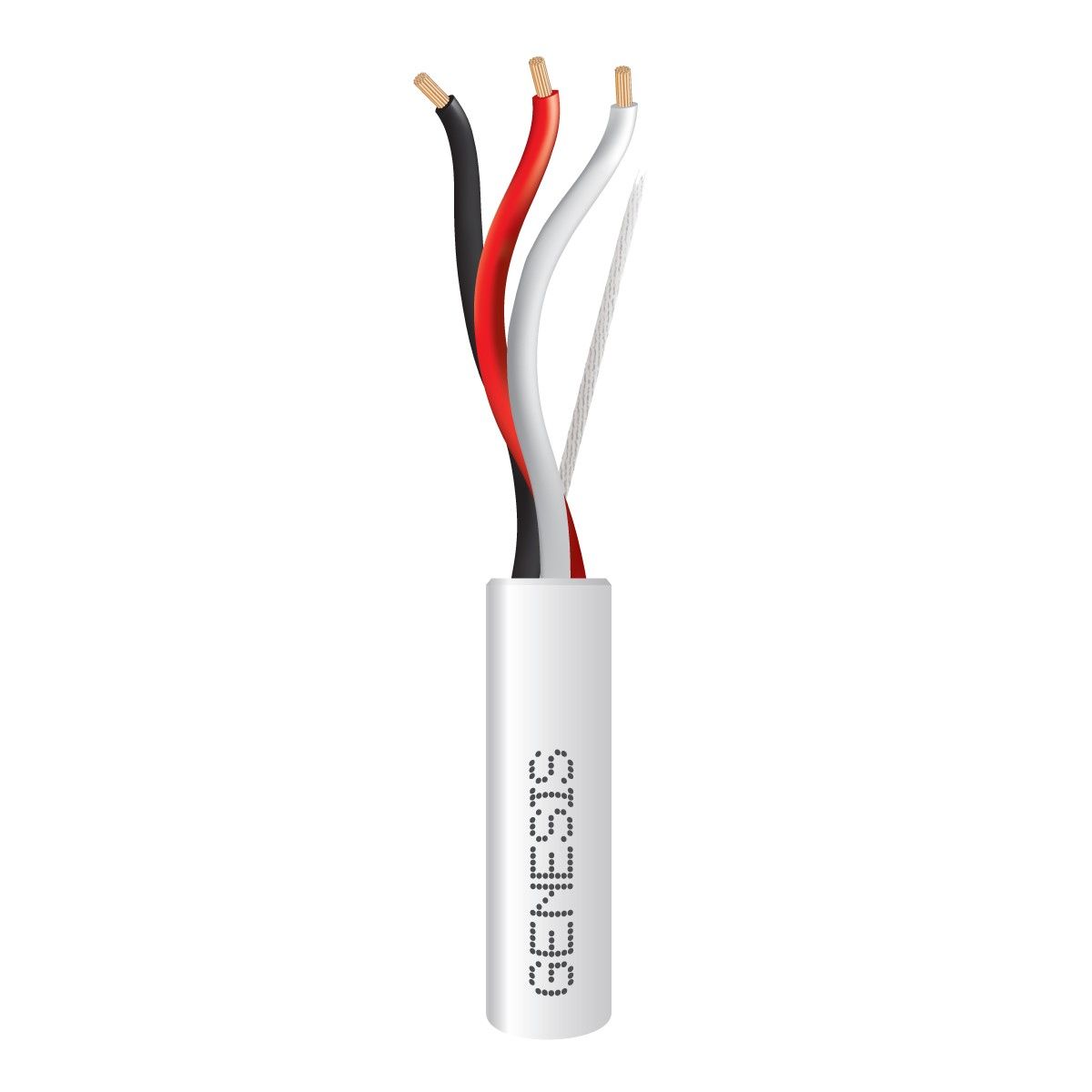

Genesis 31262112 18/3 Stranded Plenum Cable 1000 ft. Reel

Product Description

The GENESIS 31262112 is an 18/3 stranded plenum cable supplied on a 1000 ft. reel. This unshielded multi-conductor cable provides a solution for signal and limited-power transmission applications. It features bare copper conductors, low-smoke PVC insulation, and a plenum PVC jacket.

• Bare copper conductors for conductivity
• Low-Smoke PVC insulation
• Plenum PVC jacket

Product Highlights

This cable is REACH/RoHS compliant and features countdown length markings for easy tracking of usage and remaining cable.

Product Information

Standard Information

• Brand: GENESIS
• Manufacturer Part Number: 31262112
• Country of Origin: Country of origin is subject to change.

Technical Specifications

• Length: 1,000ft
• Shielded: No
• Packaging: Reel in Box
• Conductors: 3
• Gauge (AWG): 18
• Jacket Rating: Plenum
• Conductor Type: Stranded
• Manufacturer Part Number: 31262112
• Product Type: Security & Control Cables
• American Wire Gauge: 18AWG
• Armored: No
• Cable Rating: Plenum
• Conductor Material: Bare Copper
• Jacket Material: LS-PVC
• Number of Conductors: 3
• Shielding: No
• Solid or Stranded: Stranded
• TAA Compliant: Yes
• Cable Length: 1000'
• Insulation Material: LS-PVC
• Package Type: Reel-in-a-Box
• Environmental Certification: RoHS
• Voltage Rating: 300 V
• Outside Diameter: 0.162 in
• Resistance: 6.66 Ohm/1000 ft at 20 deg C
• Series: 3126
• Strands: 19
• Temperature Rating: -20 to 75 deg C
• Type: Multipurpose
• Capacitance: 32.2 pF / ft
