Genesis 31211112 16/2 Stranded Plenum Cable, Unshielded, CL3P, FPLP, CMP, FT6, 1000 feet

Product Description

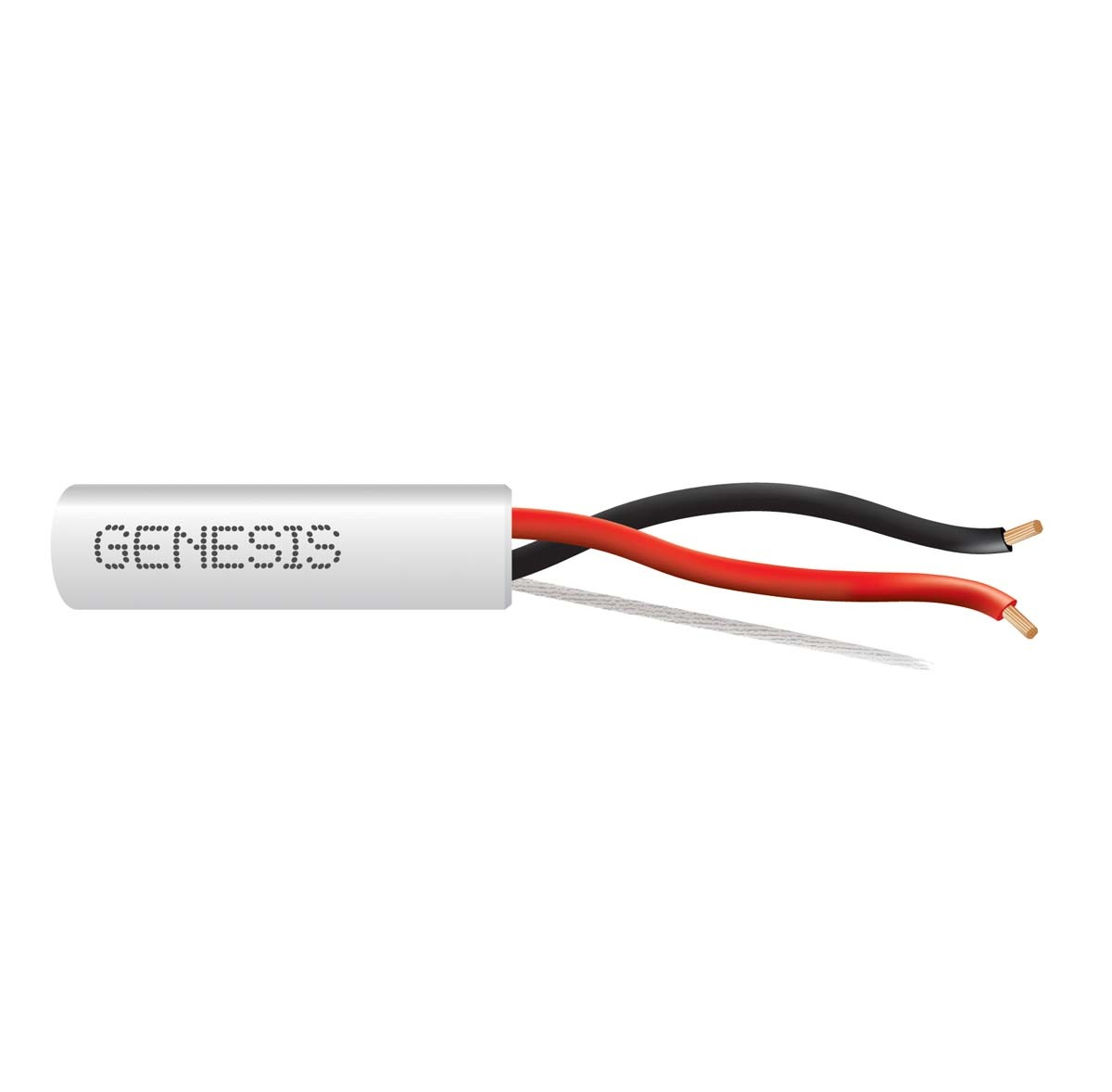

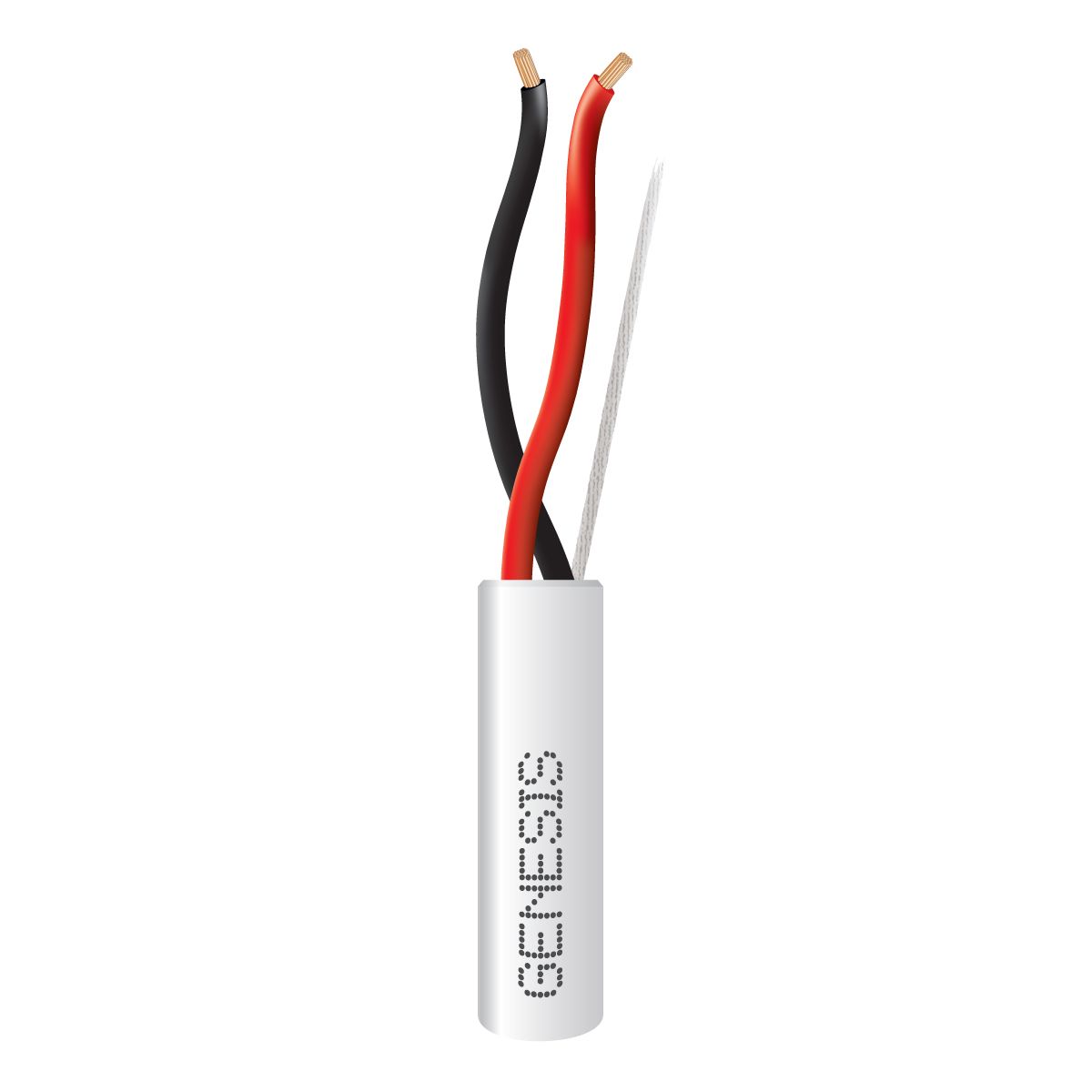

The Genesis 31211112 cable features 2 stranded 16 AWG copper conductors and a plenum rating. This unshielded multi-conductor cable is suitable for security, controls, audio, and other low-voltage applications. It is designed for installation in ducts and other spaces used for environmental air.

• Stranded bare copper conductors
• Rated for plenum, riser, and general purpose indoor installation
• 1000 ft. (304.8 m) REELEX pull box

Product Highlights

This cable ensures a dependable connection for various low-voltage applications with its stranded conductors and plenum rating.

Product Information

Standard Information

• Brand: GENESIS
• Manufacturer Part Number: 31211112
• Country of Origin: United States

Technical Specifications

• Brand Name: Genesis
• Manufacturer Part Number: 31211112
• Cable Type: Multi-conductor/Multi-pair
• Jacket Type: FT6,Plenum
• Cable Length: 1000'
• Manufacturer: Genesis Cable
• Package Type: REELEX Pull Box
• Product Name: 31211112 Control Cable
• Product Type: Access & Security Cable
• American Wire Gauge: 16AWG
• Cable Listing: CL3P,CMP,FPLP,FT6
• Product Model: 31211112
• TAA Compliant: yes
• Number of Conductors: 2
• Indoor/Outdoor: Indoor
• ADI Part Number: WG-31211112
• Number of Pairs: 1
• Device Supported: Burglar Alarm,Intercom,Phone,Speaker
• Solid or Stranded: Stranded
• Conductor Material: Bare Copper
• Insulation Material: LS-PVC
• Environmental Certification: ROHS
• Features: Stranded,Unshielded
• Impedance: 54 ohms
• Shielding: No
• Size (AWG or kcmil): 16 AWG
• Nominal Total Weight (lbs/1000'): 23
• Nominal Total Weight (kgs/km): 35
• Jacket Material: LS-PVC
• Packing: Pull Box
• Conductor: Copper
