Product Description

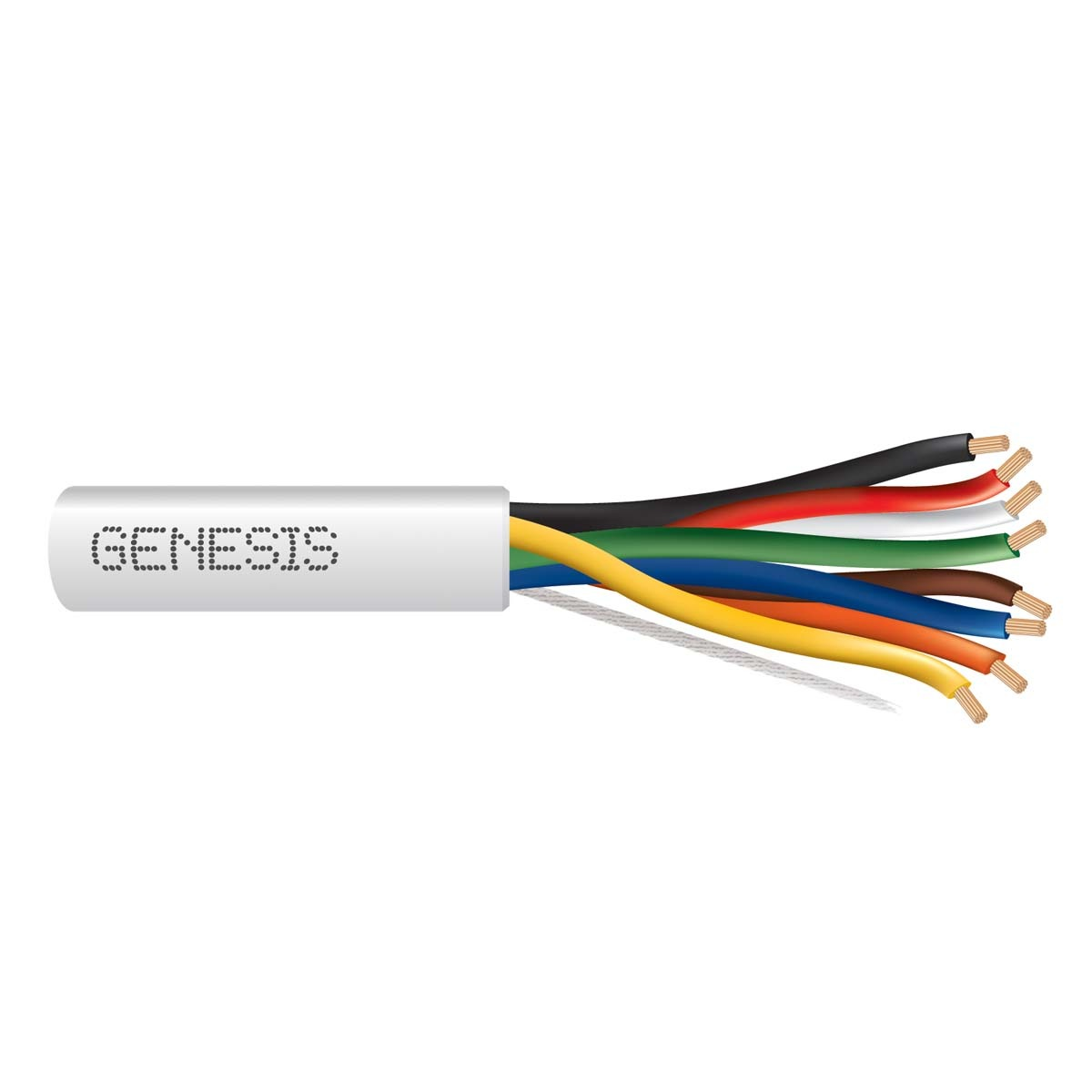

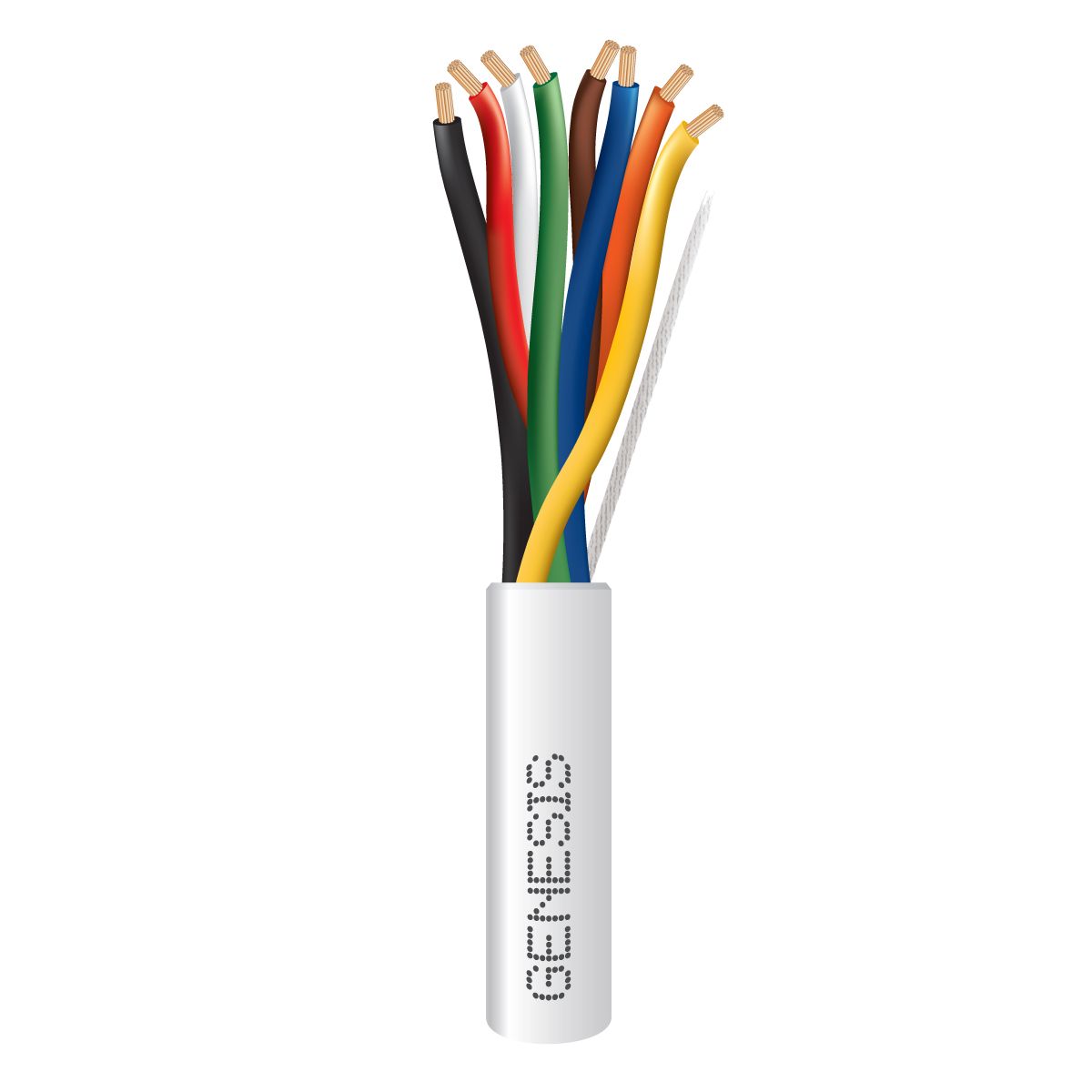

The GENESIS 31171012 cable features 8 stranded 18 AWG bare copper conductors and a plenum rating. This unshielded multi-conductor cable provides a dependable connection for security, controls, audio, and other low-voltage applications. Packaged on a 1000 ft. reel.
- Stranded bare copper conductors
- Rated for plenum, riser, and general purpose indoor installation

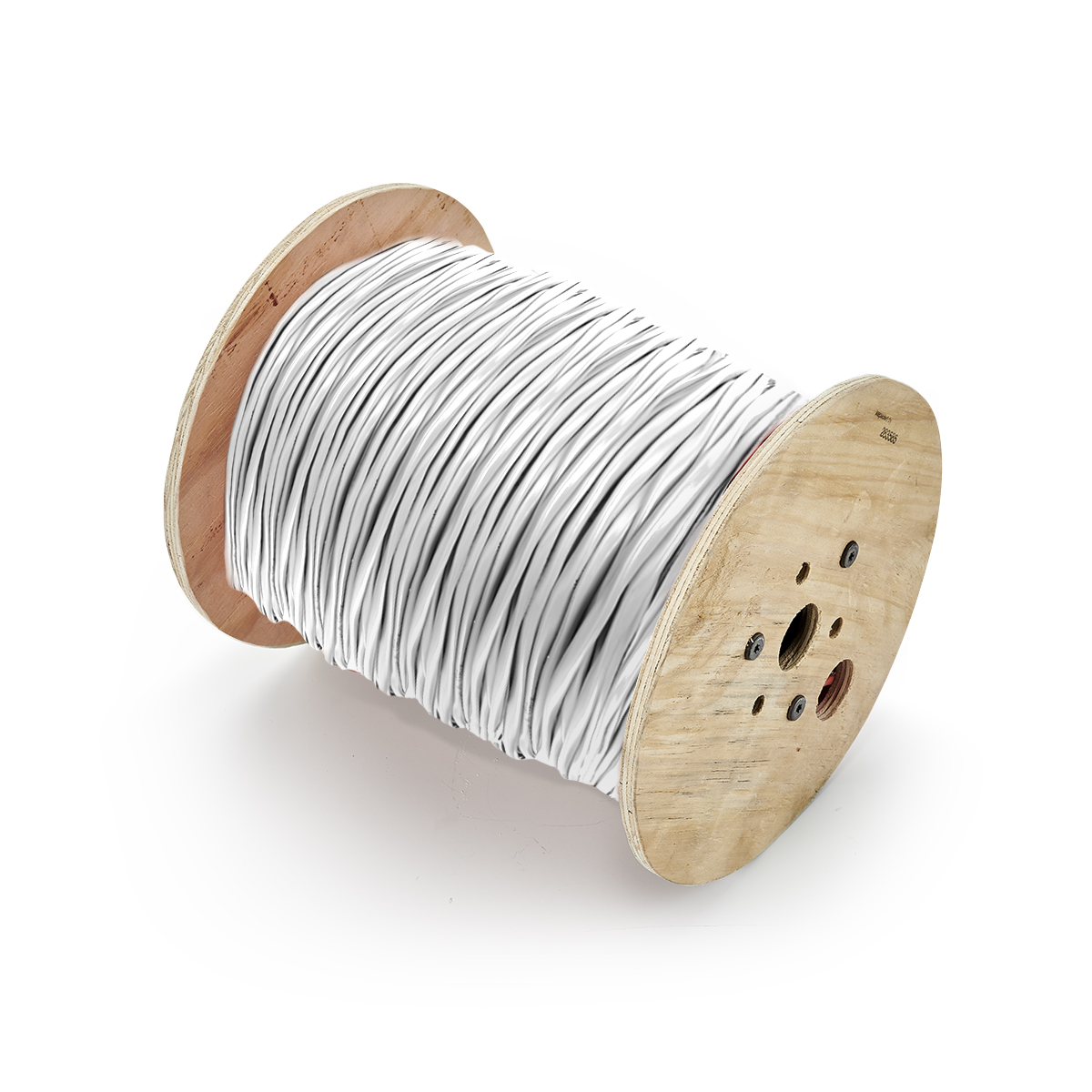

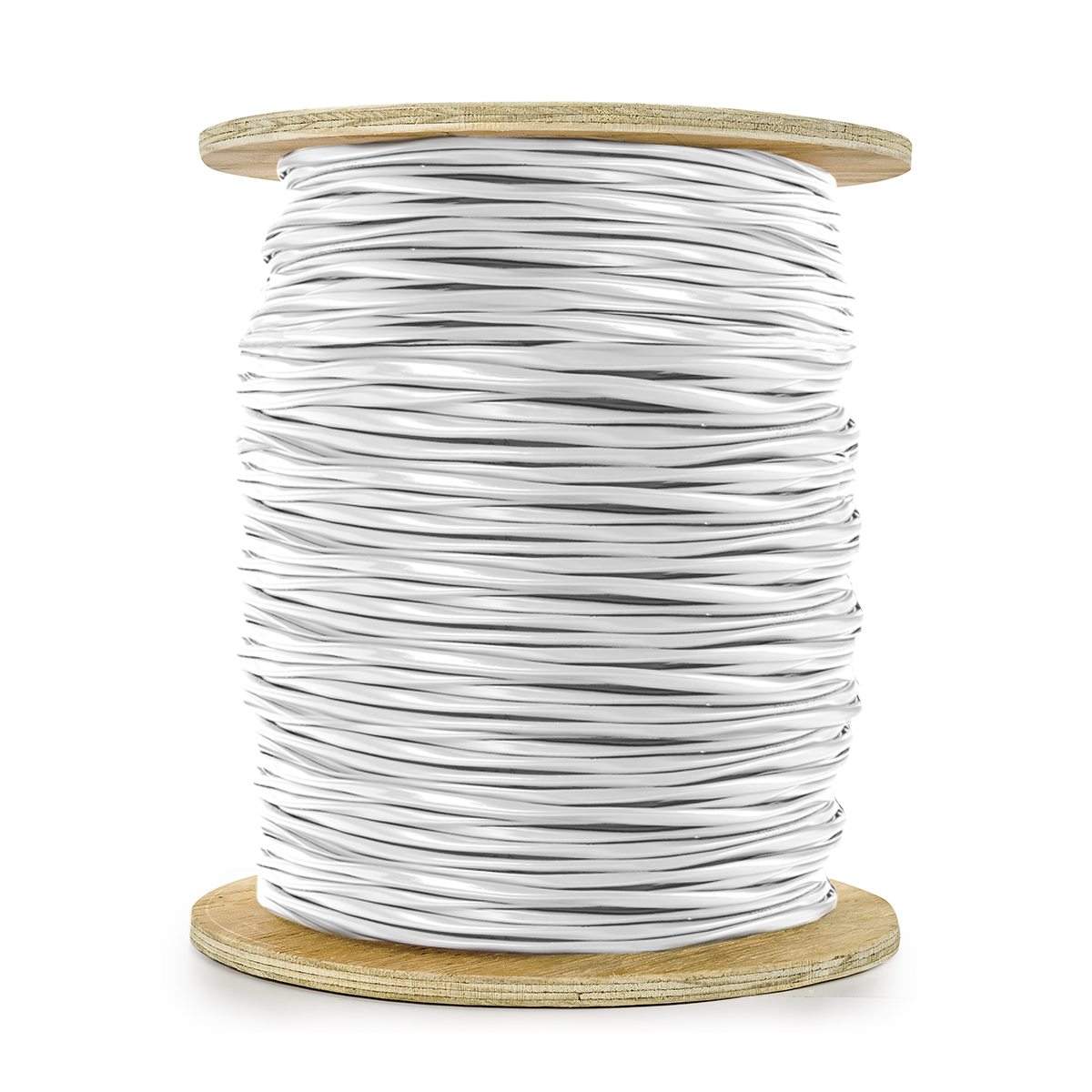

- 1000 ft. (304.8 m) reel
Product Highlights
This cable is ideal for use in security systems and general purpose applications. Features a low-smoke PVC insulation and plenum PVC jacket.
Product Information
Standard Information
-
Brand: GENESIS
-
Manufacturer Part Number: 31171012
-
Country of Origin: United States
Technical Specifications
-
Color: Natural
-
Features: Stranded,Unshielded
-
Material: Bare Copper
-
Shielding: Unshielded
-
Brand Name: Genesis
-
Cable Type: Multi-conductor/Multi-pair
-
Jacket Type: FT6,Plenum
-
Cable Length: 1000'
-
Manufacturer: Genesis Cable
-
Package Type: Reel
-
Product Name: 31171012 Control Cable
-
Product Type: Access & Security Cable
-
Cable Listing: CL3P,CMP,FPLP,FT6
-
Product Model: 31171012
-
TAA Compliant: yes
-
Indoor/Outdoor: Indoor
-
ADI Part Number: WG-31171012
-
Conductor Count: 4
-
Number of Pairs: 4
-
Device Supported: Burglar Alarm,Phone,Speaker
-
Cable Length (mm): 304800
-
Packaged Quantity: 1
-
Solid or Stranded: Stranded
-
Conductor Material: Copper
-
American Wire Gauge: 18AWG
-
Insulation Material: Plenum PVC
-
Number of Conductors: 6 or More
-
Manufacturer Part Number: 31171012
-
Environmental Certification: ROHS
-
Length: 1000 ft
-
Gauge (AWG): 18
-
Jacket Color: Natural
-
Jacket Rating: Plenum
-
Conductor Type: Stranded
-
Size (AWG or kcmil): 18 AWG
-
Stranding: Stranded
-
Nominal Total Weight (lbs/1000'): 54
-
Nominal Total Weight (kgs/km): 80
-
Conductor Size: 18 AWG
-
Outside Diameter: 0.224 in
-
Resistance: 6.66 Ohm/1000 ft at 20 deg C
-
Series: 3117
-
Strands: 19
-
Temperature Rating: -20 to 75 deg C
-
Type: Multipurpose
-
Voltage Rating: 300 V
-
Sheath Color: White
-
Wire Style: Stranded
-
Item Length: 1000 ft
