Genesis 31170112 18/8 Stranded CL2P (Plenum) Control Cable 250 feet

Product Description

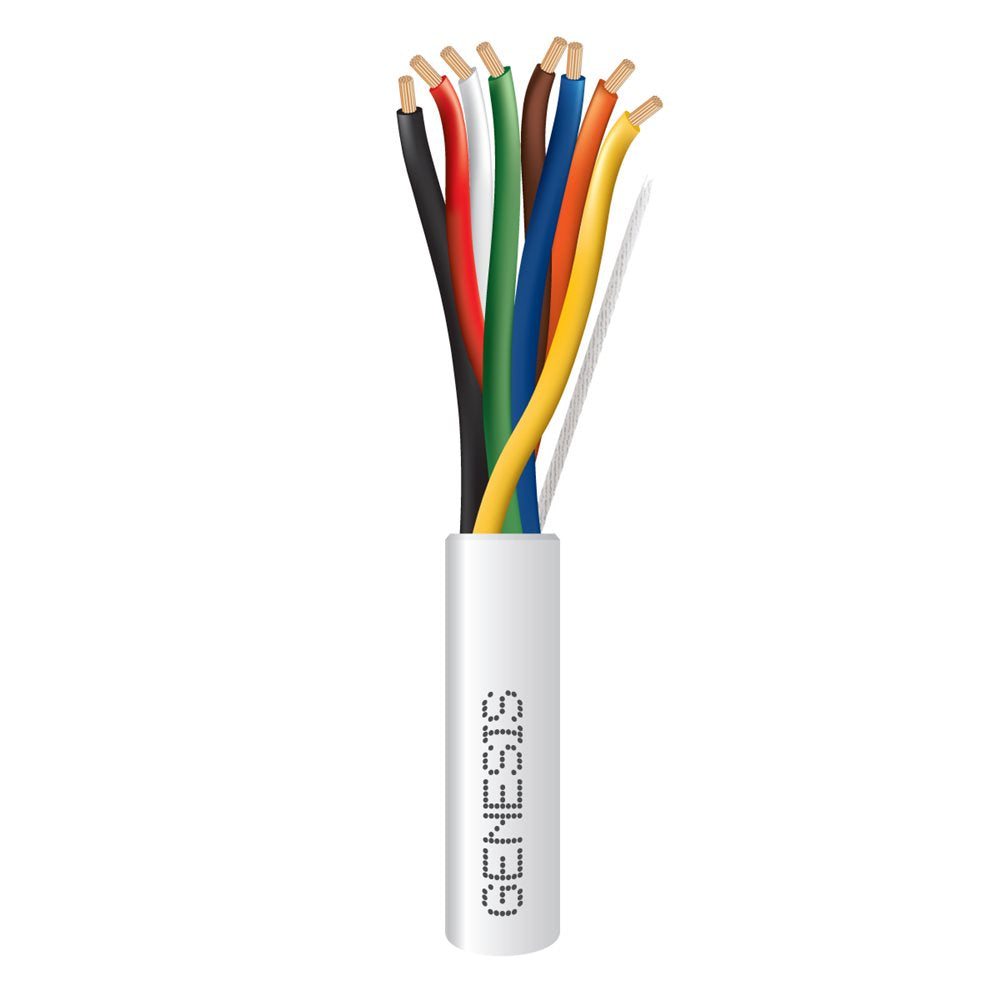

The GENESIS 31170112 is an 18/8 stranded CL2P (Plenum) control cable. This unshielded multiconductor cable features bare copper conductors, low-smoke PVC insulation and jacket, and a durable rip cord for jacket removal. Suitable for use in ducts, environmental air spaces, and risers. Rated for 300V and temperatures from -20°C to 75°C.

• Bare copper conductors for excellent conductivity
• Low-smoke PVC insulation and plenum PVC jacket
• Suitable for ducts, environmental air spaces, and risers

Product Highlights

18 AWG, 8-conductor control cable with plenum rating and stranded conductors, ideal for security, control, audio, and low-voltage applications.

Product Information

Standard Information

• Brand: GENESIS
• Manufacturer Part Number: 31170112
• Country of Origin: USA

Technical Specifications

• Brand: GENESIS
• Cable Type: CMP/CL2P
• Capacitance Range: 28 pf/ft nom.
• Coil Length: 250'
• Flame/Smoke Rating: UL 910, NFPA 262, CSA FT6
• Insulation Type: Plenum Polyvinyl Chloride (PVC)
• Jacket Material: Plenum Polyvinyl Chloride (PVC)
• Length: 250 ft
• Temperature Rating: -20 to 75 Deg C
• UOM: RL
• UV Resistant: No
• Wire Gauge: 18 AWG
• Wire Type: Low Voltage
• Shielded: No

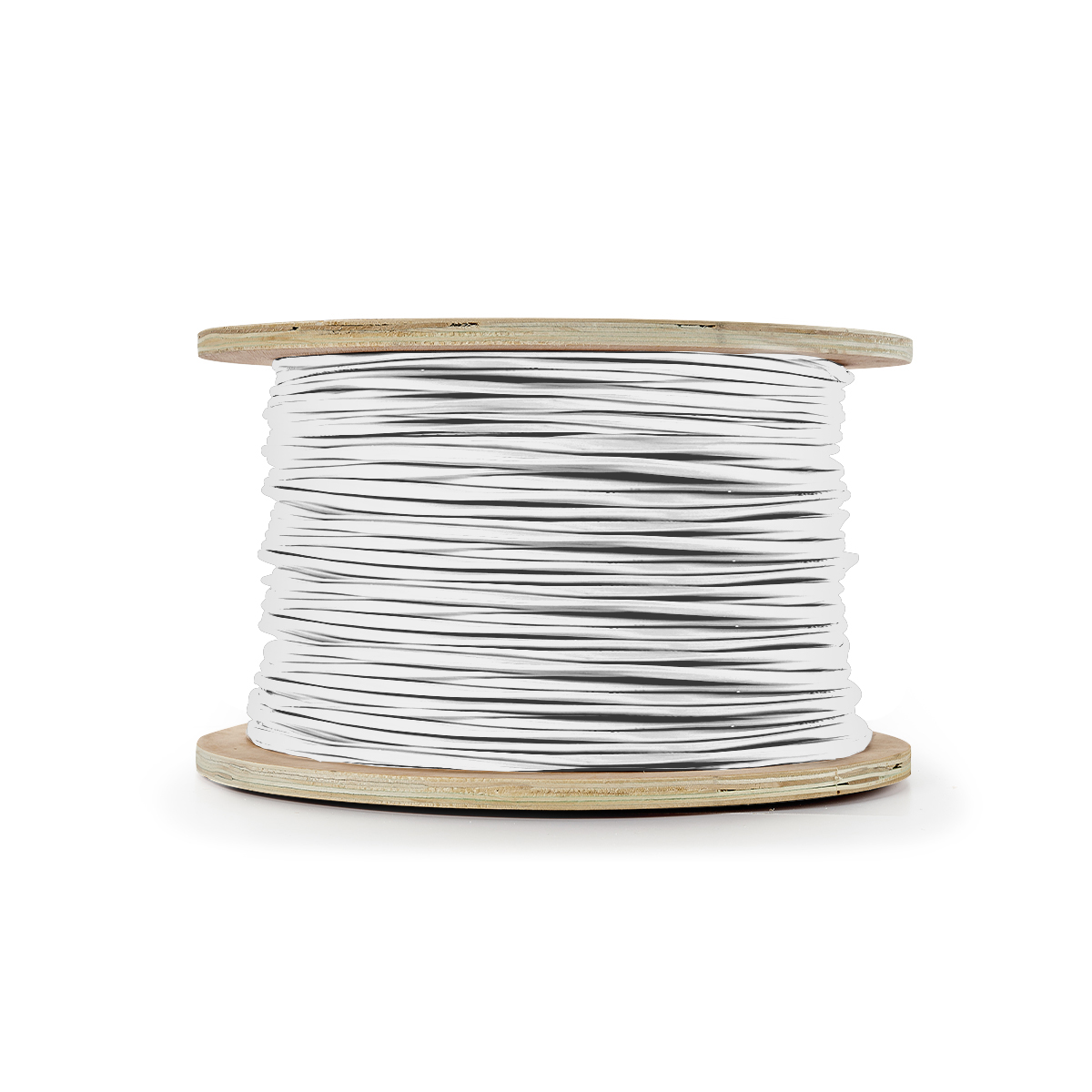

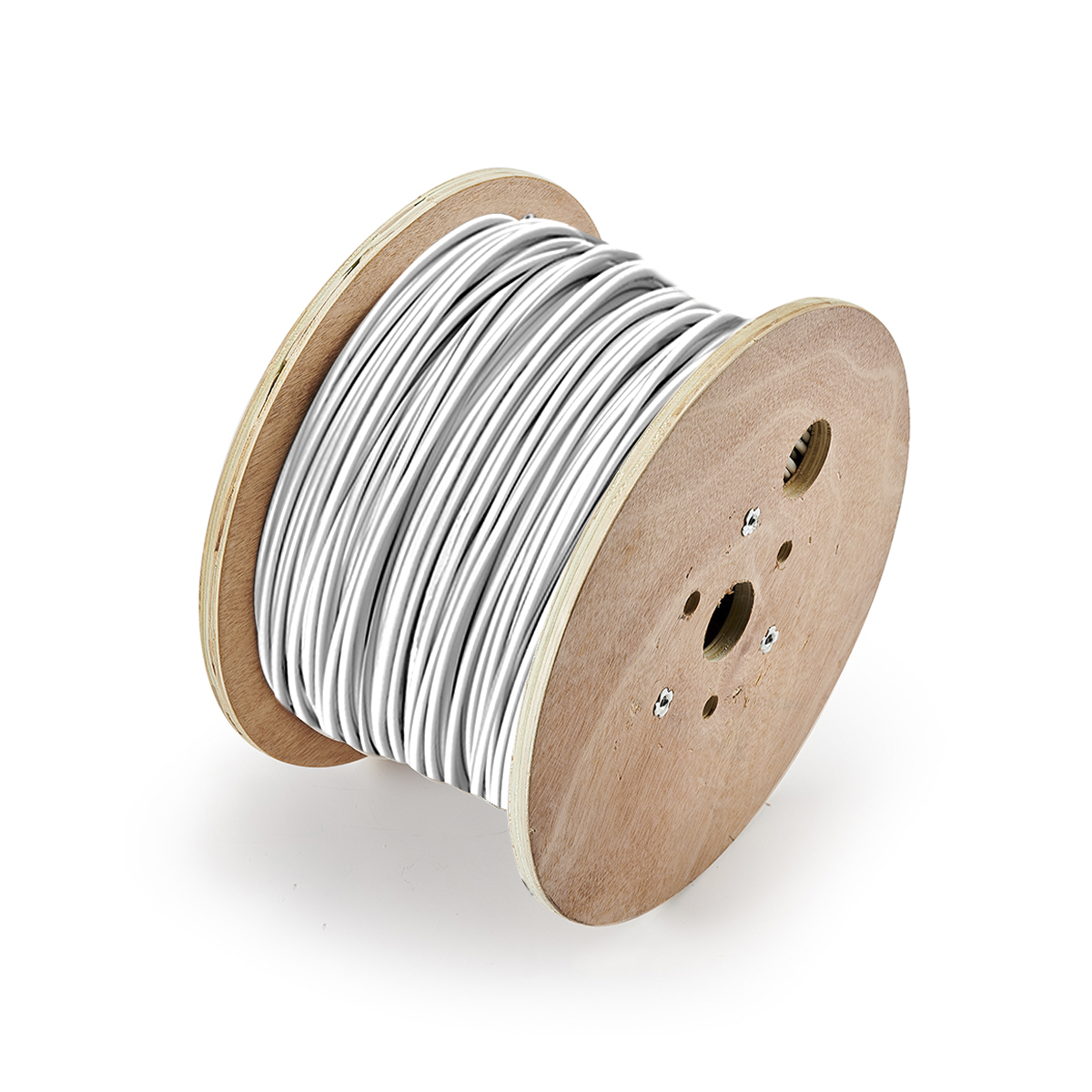

• Packaging: Reel
• Conductors: 8
• Jacket Rating: Plenum
• Conductor Type: Stranded
• Application: Multi-Purpose
• Features: Plenum-Rated
• Outside Diameter: 0.232
• Package Type: Reels
• Approvals: CL2P C(UL) FT6 CMP
• Stranding: 19 Strands
• Nominal Total Weight (lbs/1000'): 54
• Voltage Rating: 300 Volt
• Conductor Material: Bare Copper
• Jacket Color: Natural (Off-White)
• Insulation Material: 0.007 Inch PVC
• Shielding Type: Unshielded
• Approval: ETL
• DC Resistance: 6.66 Ohm per 1000 Foot at 20 Deg C
• Capacitance: 32.2 Picofarad per Foot
• Impedance: 58 Ohm
• Flame Rating: NFPA 262 (Plenum), CSA C22.2 (FT6)
• Size (AWG or kcmil): 18 AWG
• Number of Conductors: 8
