Genesis 31161012 18/6 Stranded Plenum Cable 1000 feet

Product Description

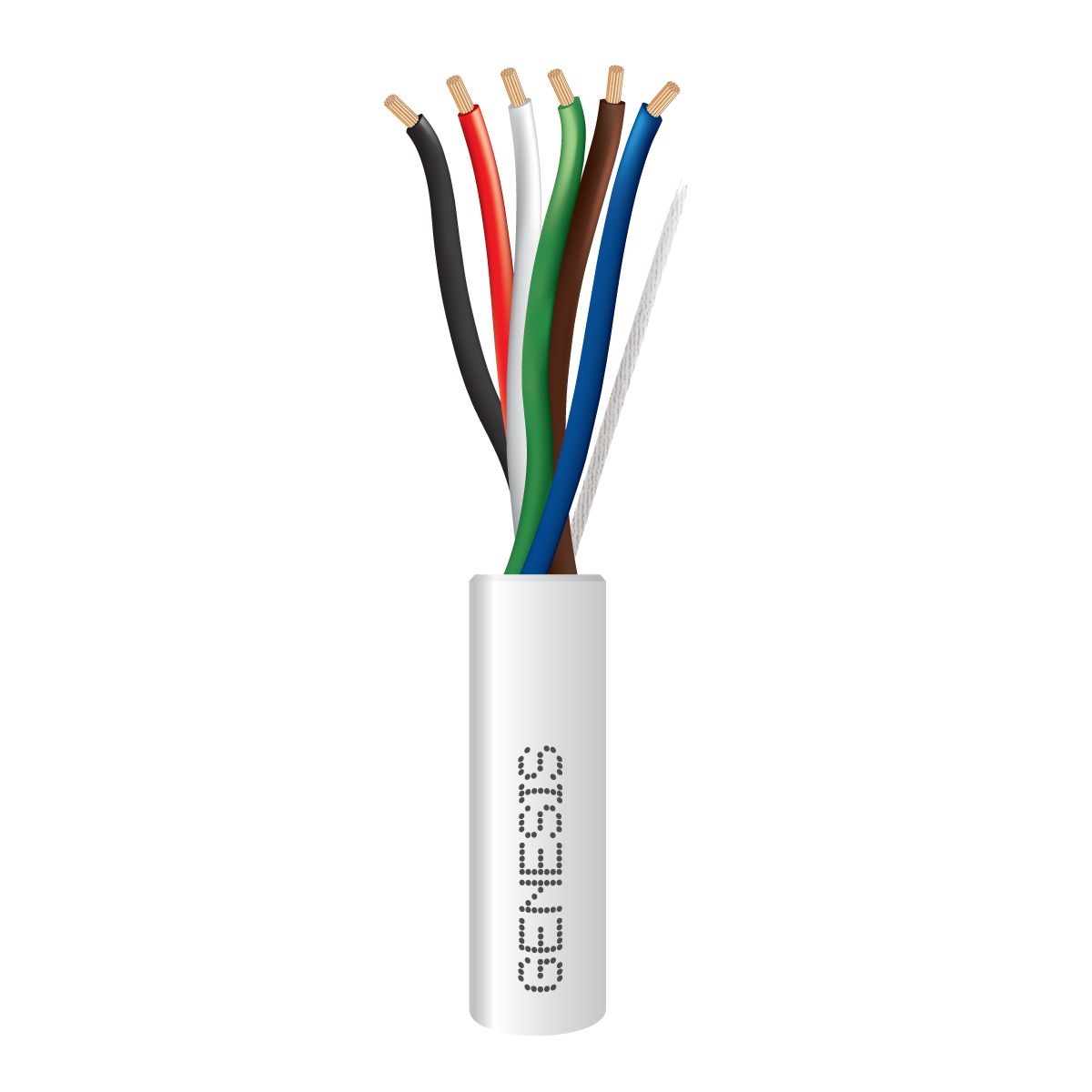

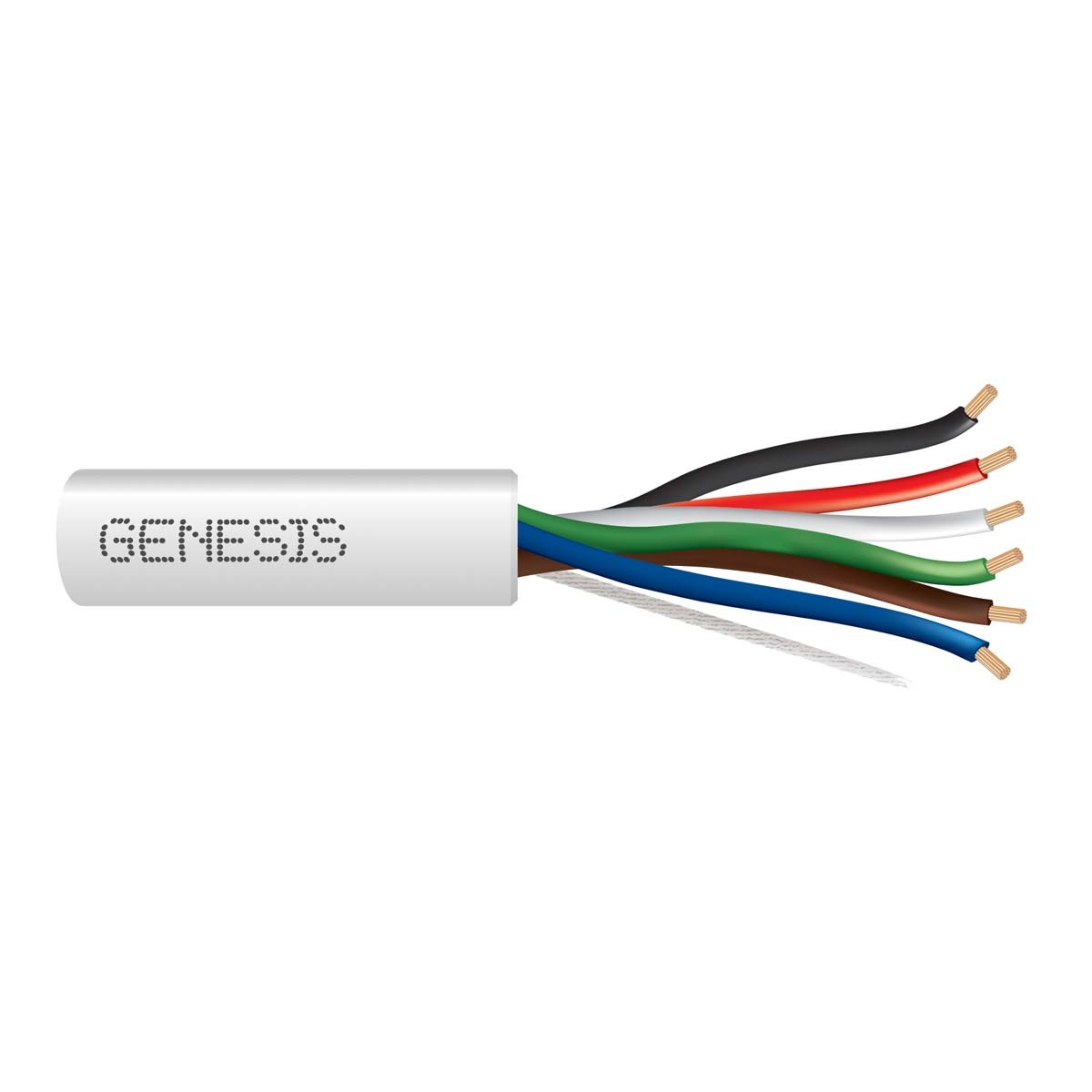

The Genesis 31161012 cable features 6 stranded 18 AWG copper conductors and a plenum rating. This unshielded multi-conductor cable is suitable for security, controls, audio, and other low-voltage applications. It is rated for plenum, riser, and general purpose indoor installation.

• Stranded bare copper conductors
• Rated for plenum, riser, and general purpose indoor installation

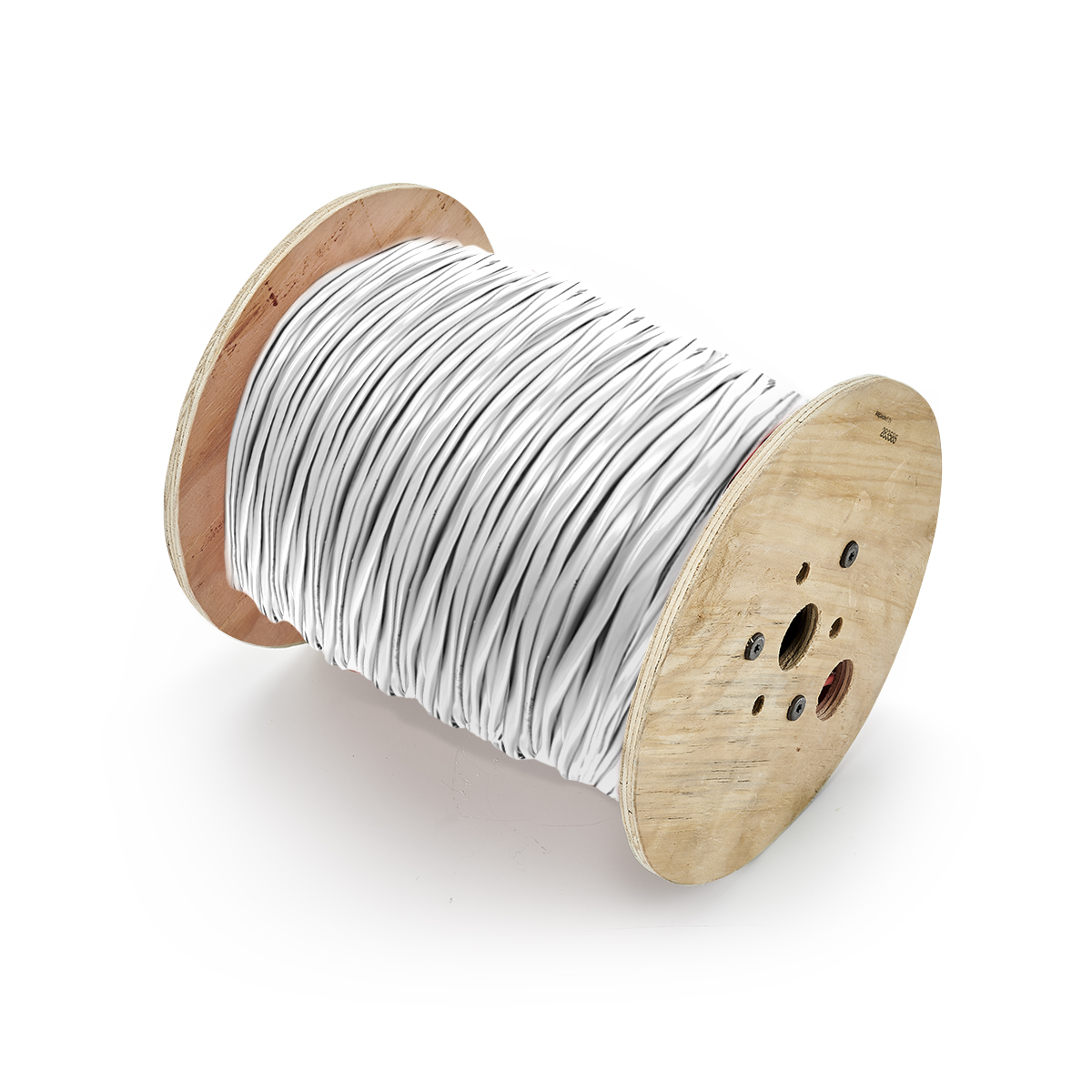

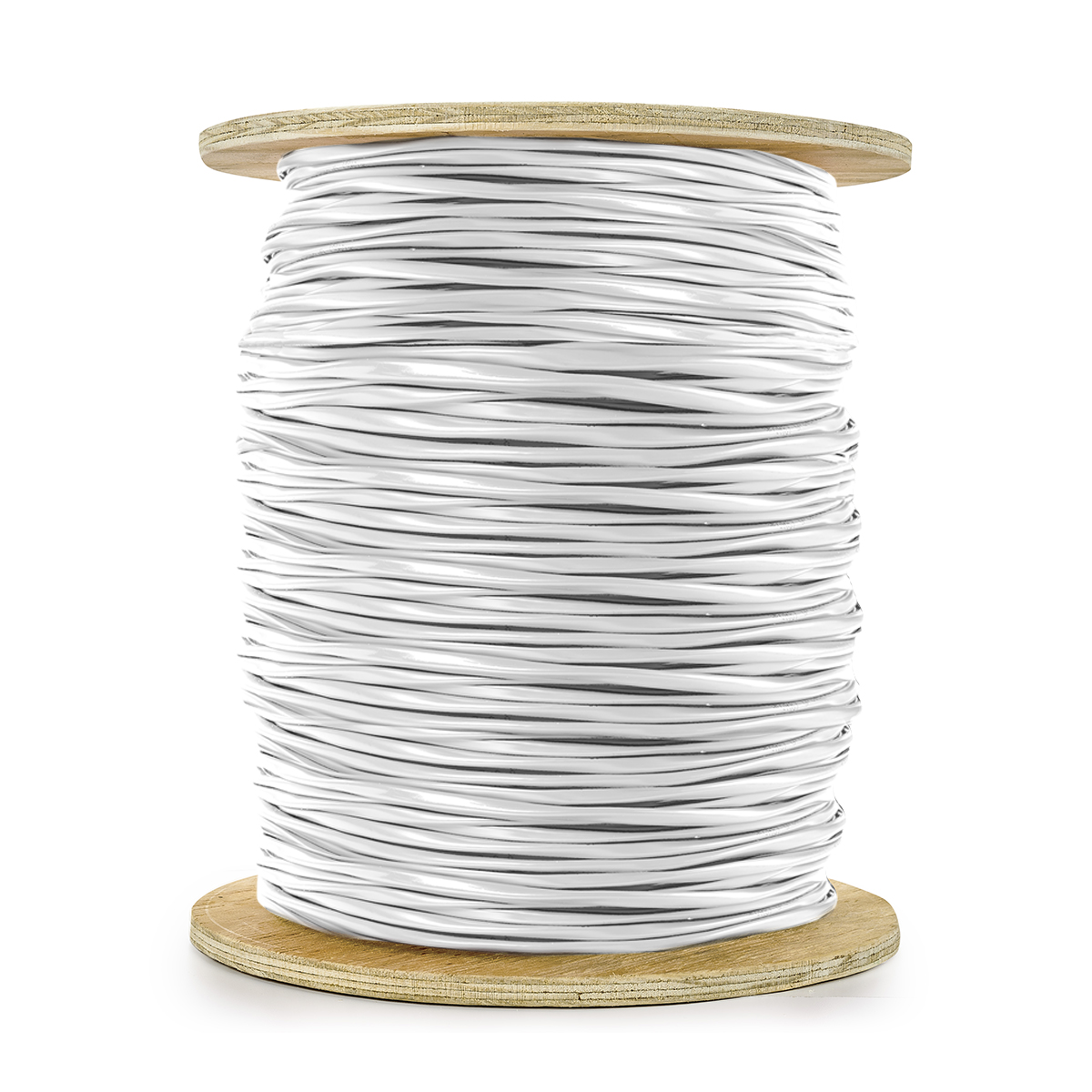

• 1000 ft. (304.8 m) reel

Product Highlights

This cable ensures a dependable connection for various low-voltage applications with its stranded bare copper conductors and plenum rating.

Product Information

Standard Information

• Brand: GENESIS
• Manufacturer Part Number: 31161012
• Country of Origin: United States

Technical Specifications

• Brand Name: Genesis
• Cable Type: Multi-conductor/Multi-pair
• Manufacturer: Genesis Cable
• Product Model: 31161012
• Cable Listing: CL3P,CMP,FPLP,FT6
• American Wire Gauge: 18AWG
• Number of Conductors: 6
• Indoor/Outdoor: Indoor
• Number of Pairs: 3
• Device Supported: Burglar Alarm, Phone, Speaker
• Solid or Stranded: Stranded
• Conductor Material: Bare Copper
• Insulation Material: LS-PVC
• Jacket Type: Riser
• TAA Compliant: yes
• Cable Length: 1000'
• Package Type: Reel
• Shielding: No
• Features: Stranded,Unshielded
• Material: Bare Copper
• ADI Part Number: WG-31161012
• Cable Length (mm): 304800
• Packaged Quantity: 1
• Environmental Certification: ROHS
• Packaging: Reel
• Gauge (AWG): 18
• Jacket Rating: Plenum
• Conductor Type: Stranded
• Nominal Total Weight (lbs/1000'): 41
• Jacket Color: Natural
• Outside Diameter: 0.06 in
• Resistance: 6.5 Ohm
• Series: Genesis®
• Strands: 19/0.0092
• Temperature Rating: -20 to 60 deg C
• Type: Type CMP/CL2P/FT6 Unshielded
• Voltage Rating: 300 VAC
• Wire Style: Stranded
• Sheath Color: Natural
