Genesis 31142112 18 awg 2c Stranded Plenum Cable, 1000 feet Reel-in-a-Box

Product Description

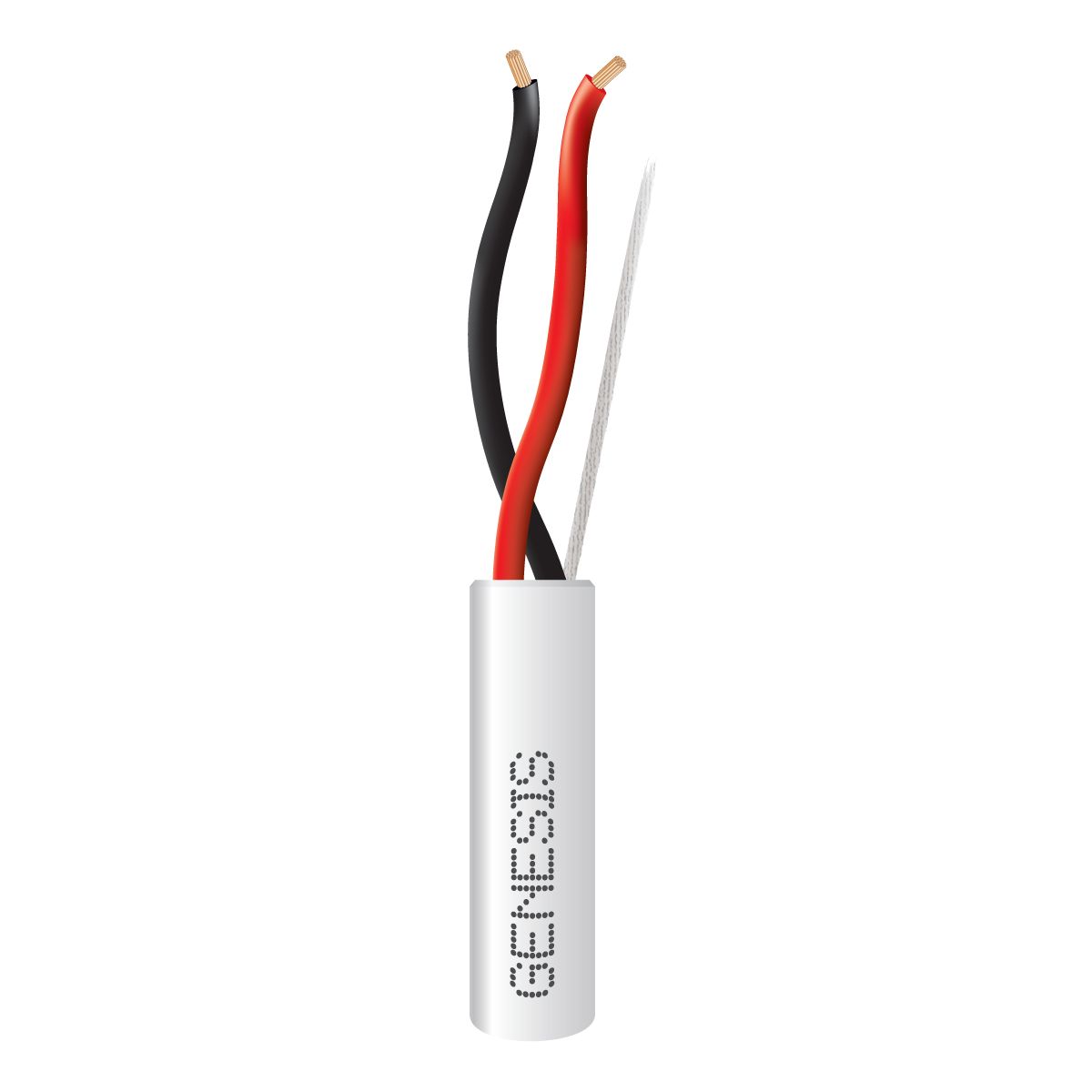

The GENESIS 31142112 cable features 2 stranded 18 AWG copper conductors and a plenum rating. This cable provides a dependable connection for security, controls, audio, and other low-voltage applications and is supplied in a 1000' reel-in-a-box.

• Stranded bare copper conductors
• Rated for plenum, riser, and general purpose indoor installation
• 1000 ft. (304.8 m) reel-in-a-box

Product Highlights

This Genesis cable is ideal for security, control, and audio applications requiring plenum-rated cable.

Product Information

Standard Information

• Brand: GENESIS
• Manufacturer Part Number: 31142112
• Country of Origin: United States

Technical Specifications

• Brand Name: Genesis
• Jacket Type: Plenum
• Cable Length: 1000'
• Package Type: Reel-in-a-Box
• Conductor Count: 2
• American Wire Gauge: 18AWG
• Number of Conductors: 2
• Manufacturer Part Number: 31142112
• Shielded: No
• Gauge (AWG): 18
• Conductor Type: Stranded
• Conductor Size: 18 AWG
• Insulation Material: Plenum PVC
• Jacket Material: Plenum PVC
• Outside Diameter: 0.148 in
• Resistance: 6.66 Ohm/1000 ft at 20 deg C
• Series: 3114
• Strands: 19
• Temperature Rating: -20 to 75 deg C
• Type: Multipurpose
• Voltage Rating: 300 V
• Cable Listing: CL3P, FPLP, CMP, FT6
• Cable Rating: Plenum, FT6
• Velocity of Propagation: 55%
• Product Type: 18/2 Wire
