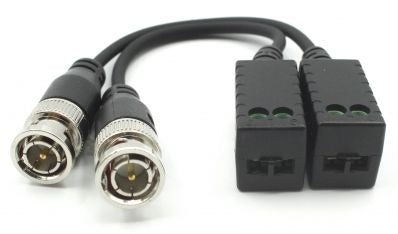

Generic / Unbranded balunlego 4-in-1 Hd Video Balun

Product Description

The GENERIC / UNBRANDED balunlego is a passive HD video balun transceiver designed to transmit high-definition analog video signals over standard UTP twisted-pair cable. Supporting CVI, TVI, and AHD signal formats in a single unit, this 4-in-1 design eliminates the need for multiple format-specific baluns on the same installation. It requires no external power, drawing no active components into the signal path. Security installers and low-voltage technicians use this balun set to extend HD camera runs where coax is impractical or where existing structured cabling is already in place.

This balun transceiver is suited for use in residential and light commercial surveillance installations. It is typically deployed at camera head locations and at the DVR or recorder end, working in matched pairs to maintain signal integrity across the twisted-pair run. The tail-set configuration simplifies termination during rough-in and trim-out stages of a CCTV installation.

Key Features

• Passive design requires no external power source
• Compatible with CVI, TVI, and AHD HD analog video formats
• 4-in-1 format support reduces hardware inventory on mixed-format jobs
• Lego-style tail set connector simplifies field termination
• Transmits HD video over standard UTP twisted-pair cable

Compatibility

Designed as a passive UTP balun replacement suitable for HD analog surveillance systems using CVI, TVI, or AHD signal formats.

Installation Notes

Installation is typically performed by low-voltage security technicians. No power shutdown is required for passive balun installation, but all camera and DVR connections should be made before powering the system. Use matched balun pairs at each end of the twisted-pair run for proper signal transmission. Follow local low-voltage wiring codes and consult NEC Article 725 guidelines where applicable.

Technical Specifications

• Signal Format: CVI, TVI, AHD
• Transceiver Type: Passive
• Configuration: 4-In-1
• Cable Type: UTP Twisted-Pair

Standard Information

• Brand: GENERIC / UNBRANDED
• Manufacturer Part Number: balunlego
