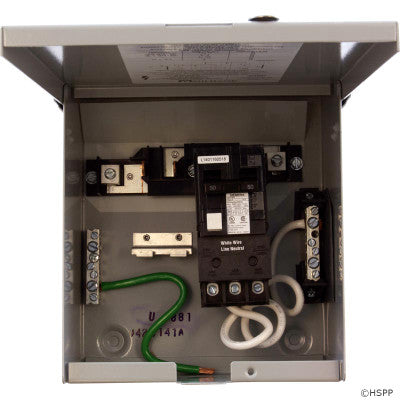

Generic U4881-O-50GB Load Center GFCI Disconnect 50A 115v/230v

Product Description

The Generic U4881-O-50GB is a load center designed to provide GFCI disconnect protection for both residential and commercial applications. This unit features 240 volt ground fault protection and includes a two pole, fifty amp GFCI breaker. The UL listed Type 3R enclosure is rainproof and suitable for outdoor use.

• 240 Volt Ground Fault Protection
• UL Listed, Type 3R Enclosure
• Easy Installation

Product Highlights

This load center also acts as a sub-panel with a total rating of one hundred amps. It allows for three to four wire installation and supports 120/240 VAC.

Product Information

Standard Information

• MPN: U4881-O-50GB
• Manufacturer: Generic

Technical Specifications

• Dimensions: Eight and one-half inches Height x Seven and one-half inches Width x Three and three-quarter inches Depth
• Circuit Capacity: 100 Amp, Four Circuit Sub Panel Enclosure
• Line and Load Connector Wire Range: CU: #14-1/0, AL: #14-1/0
• Ground Connector Wire Range: CU/AL: #14-1/0
