Generic 12-2 MC Lite 1000' Reel

Product Description

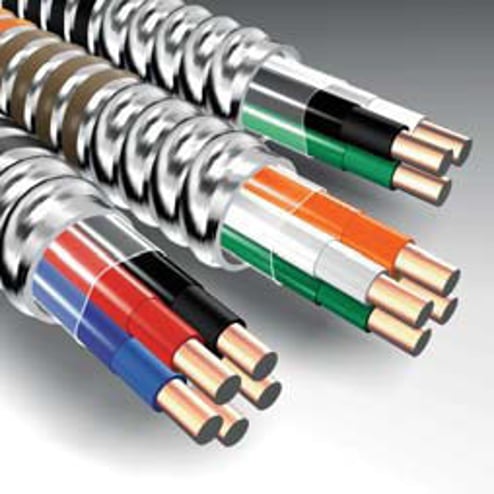

The Generic 12-2 MC Lite 1000' Reel is a type MC cable designed for reliable electrical connections. It includes a traditional design with ground and neutral conductors. This cable features two conductors, a twelve gauge AWG solid copper conductor, and ground. It has an outside diameter of zero point four nine five inches and is rated for six hundred volts and ninety degrees Celsius in dry conditions.

• Two conductors with solid copper
• Rated for 600 volts, 90 degrees Celsius
• Meets various safety standards including UL and NEC

Product Highlights

This cable is suitable for a range of applications, particularly in commercial and industrial settings requiring robust electrical connections.

Product Information

Standard Information

• Brand: Generic
• MPN: 12-2MCLITE1000'REEL

Technical Specifications

• Conductor Type: Solid Copper
• Gauge: 12 AWG
• Weight: 110 LB/1000 FT
• Insulation: THHN
• Shielding: Polypropylene Tape Shield
• Armor: Interlocking Aluminum Strip Armor
• Voltage Rating: 600 V
• Temperature Rating: 90 DEG C (Dry)
