Generalaire 5801 3200 bypass humidifier with automatic humidistat

Product Description

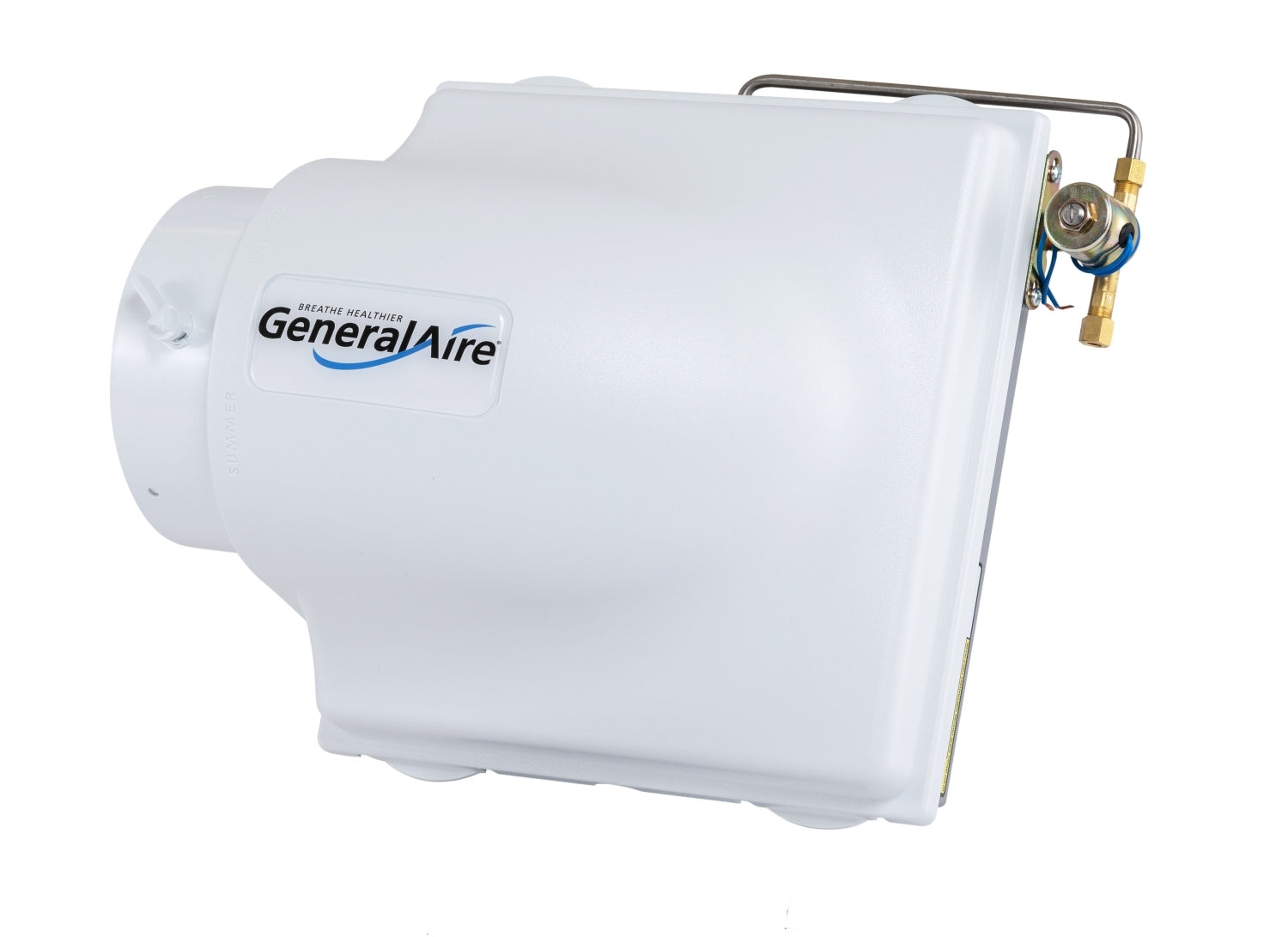

The GENERALAire 5801 3200 Bypass Humidifier with Automatic Humidistat is a bypass evaporative humidifier with a capacity of up to 12 gallons per day. It is designed for homes up to 3,200 square feet and features a stainless steel water supply tubing for either cold or hot water. The GFX3 digital automatic-control humidistat provides convenient humidity control.

• Up to 12 Gallons Per Day
• Low Profile Cover
• Air Tight Cover Design Forces Air Directly Through Pad

Product Highlights

This humidifier features a low profile cover, stainless steel water supply tubing, and easy snap-on UV stable cover for fast installation.

Product Information

Standard Information

• Brand: GENERALAire
• Manufacturer Part Number: 5801

Technical Specifications

• Product Type: Humidifier
• Type: bypass evaporative
• Capacity (Gallons/day): 12
• Voltage: 24V
• Material: Stainless Steel
• Gallons per day: 12 (based on 120 F plenum temperature)
• For home sizes up to: 3,200 square feet
• Plenum opening (inches): 9 1/8 W x 9 1/8 H
• Bypass opening (inches): 6
• Installation: warm air / return air plenum / right of left side

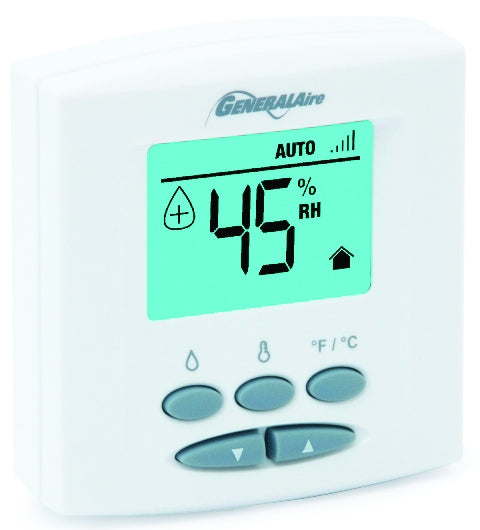

• Control: GFX3 digital automatic-control humidistat
• Power (volts): 24
• Manufacturer Name: General Filters
• Brand: GeneralAire
• Application: Whole House
• Humidification Method: Evaporative
• Vapor Pad replacement: GA10 (GFI #7905)
