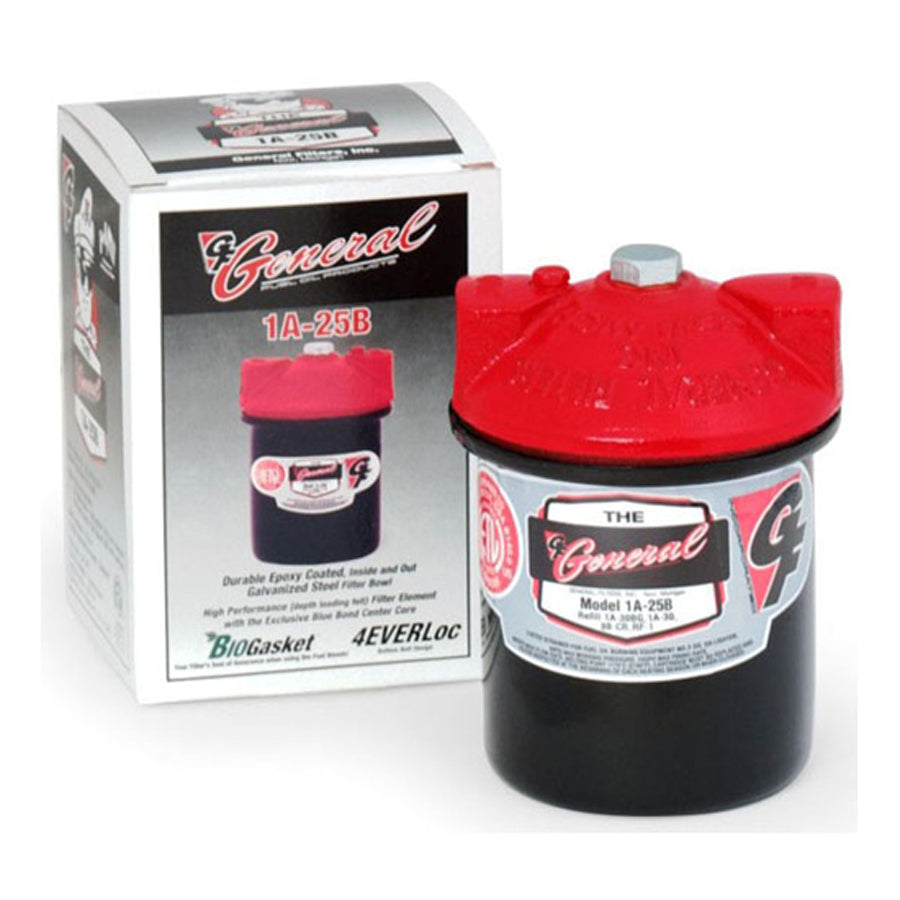

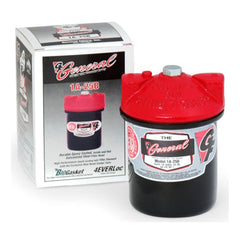

Generalaire 1A-25B Fuel Oil Filter 10 Micron 3/8 Inch Npt

Product Description

The GENERALAIRE 1A-25B is a fuel oil filter designed for use in residential and light commercial oil-fired heating systems. It features a 10-micron filter rating that captures particulates and debris before they reach the burner, helping protect fuel delivery components from contamination. The housing is constructed from epoxy coated galvanized steel for durability in fuel oil service environments. The unit uses a 3/8 inch NPT threaded end connection and is rated to 12 psi. A bonded center core prevents media migration, keeping filter media contained throughout the service cycle. Licensed oil burner technicians and heating service professionals perform this type of installation.

This filter is intended for use in fuel oil supply lines feeding residential and commercial oil burner systems. It is installed in the oil supply line between the storage tank and the burner unit, typically near the burner or oil pump. The 3/8 inch NPT port size is a common connection size found in standard residential oil heating systems. The 10-micron rating makes it appropriate for primary filtration duties where protecting downstream components such as fuel pumps and nozzles is the priority.

Key Features

• 10-micron filter rating captures fine particulates in fuel oil supply lines
• Epoxy coated galvanized steel housing resists corrosion in fuel oil service
• 3/8 inch NPT threaded connection fits standard residential oil line fittings
• 12 psi pressure rating suitable for typical residential oil burner supply pressure
• Bonded center core prevents filter media migration into the fuel stream
• Compact form factor at 3.625 inches diameter by 5.125 inches height

Compatibility

Designed as an OEM-style replacement fuel oil filter for residential and light commercial oil-fired heating systems using 3/8 inch NPT supply line connections.

Installation Notes

Installation should be performed by a licensed oil burner technician or qualified heating service professional in accordance with applicable local codes and NFPA 31 requirements. Shut off the oil supply valve and relieve any line pressure before removing the existing filter or opening fittings. Use appropriate thread sealant rated for fuel oil service on all NPT connections. Dispose of used filter media and any recovered fuel oil in accordance with local environmental regulations.

Technical Specifications

• Filter Rating: 10 Micron
• Port Size: 3/8 inch NPT
• Pressure Rating: 12 psi
• Housing Diameter: 3.625 inches
• Housing Height: 5.125 inches
• Housing Material: Epoxy Coated Galvanized Steel
• End Connection: Threaded
• Weight: 27.0 pounds

Standard Information

• Brand: GENERALAIRE
• Manufacturer Part Number: 1A-25B
