General Wire Spring 111970 Mini-Rooter XP P-XP-B Drain Cleaning Machine 1/3 hp 75 ft x 3/8 in Cable MRCS Cutter Set

Product Description

The General Wire Spring 111970 Mini-Rooter XP P-XP-B is a drain cleaning machine unit with a 1/3 hp motor. It includes 75 ft x 3/8 in cable and an MRCS cutter set. This drain cleaner clears clogged drain lines from 1-1/4″ to 4″ in diameter. The drum holds 75 feet of 3/8″ or 50 feet of 1/2″ cable.

• Variable speed power cable feed attachment makes feeding and retrieving the cable much easier
• Folding handle
• Flexicore Cable

Product Highlights

The Mini-Rooter XP offers portability with semi-pneumatic wheels and a folding handle for compact storage. It features a power cable feed and an inner drum cage to prevent cable tangling.

Product Information

Standard Information

• Brand: GENERAL WIRE SPRING
• Manufacturer Part Number: 111970
• Country of Origin: US

Technical Specifications

• Control Type: Air Foot Pedal
• Country of Origin: US
• Drum Capacity: 75 ft of 3/8 in Cable
• Horsepower: 1/3 hp
• Includes: Model 75EM2 Cable and MRCS Cutter Set, Power Cable Feed
• Speed: 165 rpm
• Tool/Kit: Kit
• Wheel Size: 8 in
• Wheel Type: Semi-Pneumatic
• Drum: Equipped with inner drum cage and distributor tube to prevent cable tangling under load. Quickly removable from frame.
• Wheels: 8″ semi-pneumatic tires with oilite bronze bushings.
• Folding Handle: Reduces storage space.

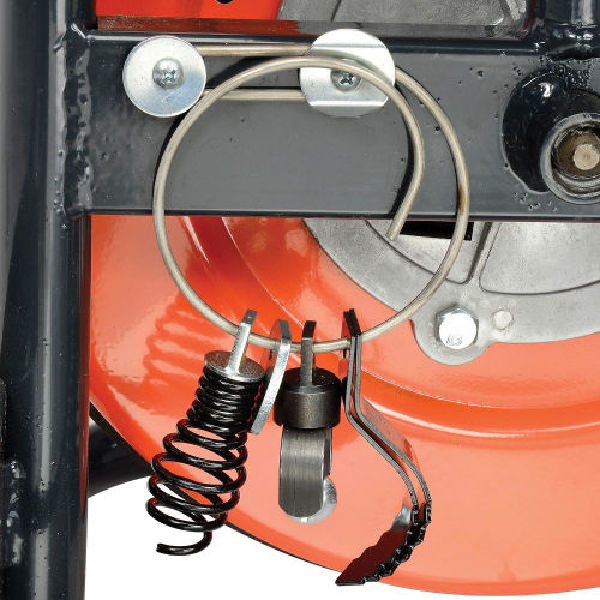

• Cutter Set: Arrow Head, Boring Gimlet, 2″ Side Cutter Blade, 1-1/2″ U-Cutter
• Motor: 1/3 hp with forward-off-reverse switch, spring loaded mounting for proper belt tension. (Load speed 165 rpm).
• Belt Guard: High impact plastic secured with a tension knob and shock mounting.
• Power Cable Feed: Drives 1/2″ and 3/8″ cables.
• Cable Guide Tube: Adds safety when you can’t get machine close to drain opening. 5 ft. extension attaches to cable guide tube.
• Foot Pedal: Leaves operator’s hands free to control cable. Uses air pressure, so there’s no electrical contact between pedal and motor.
• Power Cord: 10 ft. 3 wire. in-line ground fault circuit interrupter.
• Leather Gloves: With reinforced palm for hand protection.
• J-Drum: Capacity of 50 ft. of 1/4″ or 5/16″ Flexicore cable.
• Manufacturer (Brand): General Wire Spring Company
• Manufacturer Item Number: 111970
• UOM: Eaches
• Model Number: P-XP-B
• Cable Diameter: 3/8''
• Cable Length: 75'
• Machine Type: Drain Cleaner
• Model: Mini-Rooter XP
• Power Source: Electric
