General Hvac Solutions ASU18RLF Airstage Single-Room Mini-Split Systems Wall Mounted RLF/RLX Series Extra Low Temp Heating

Product Description

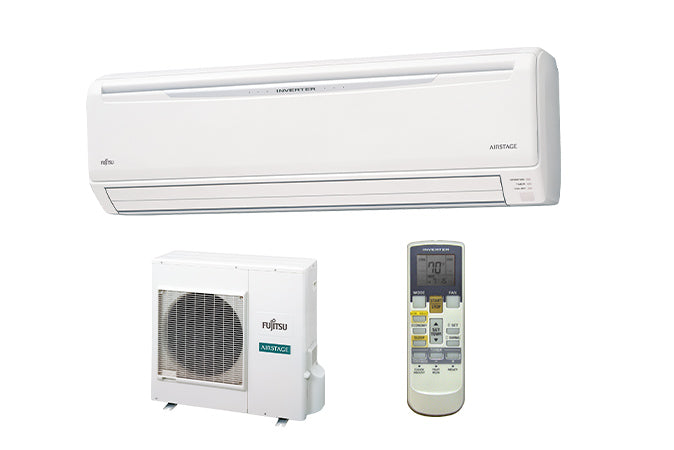

The GENERAL HVAC SOLUTIONS ASU18RLF Airstage single-room mini-split system features an indoor unit (ASU18RLF) and an outdoor unit (AOU18RLXFWH). This system is equipped with inverter technology and is ENERGY STAR qualified. It provides both cooling and heating with automatic horizontal and vertical air direction. The system includes a wireless remote controller and a washable panel filter.

• Features inverter technology for efficient operation.
• ENERGY STAR qualified for energy savings.
• Includes a washable panel filter for clean air.

Product Highlights

This mini-split system offers efficient cooling and heating with smart features like auto mode and humidity control.

Product Information

Standard Information

• Brand: GENERAL HVAC SOLUTIONS
• Manufacturer Part Number: ASU18RLF

Technical Specifications

• Power Source: 208-230/60/1
• Voltage/Frequency/Phase: 208-230/60/1
• Cooling BTU/h: 18,000(7,000~23,000)
• Heating BTU/h: 21,600(7,000~29,000)
• HSPF BTU/hW: 10.0
• SEER BTU/hW: 19.2
• Operation Range Cooling °F(°C): 14~115 (-10~46)
• Heating °F(°C): 5~75 (-15~24)
• Moisture Removal Pt./h(l/h): 5.9 (2.8)
• MAX.CRT.BKR A: 20
• Air Circ. C.F.M. Hi (m³/h): 541 (920)
• Noise Level Hi dB(A): 43/44
• Outdoor Fan Speed RPM: 620/620
• Outdoor Noise Level dB(A) Clg/Htg: 47/50
• Current Cooling A: 6.2/13.5
• Heating: 1.80/3.23
• Power Use Cooling kw: 1.35/3.01
• Fan Speeds Stage: 4+Auto
• Air Direction Horizontal: Automatic
• Vertical: Automatic
• Air Filter: Washable
• Apple Catechin Filter: Yes
• Connection Method: Flare
• Combined Min.Lgth Ft (m): 16 (5)
• Max.Lgth: 164 (50) (pre-charge: 66’)
• Max. Vertical Diff. Ft (m): 98 (30)
• Conn. Pipe Diameter Indoor Inch: Suc. 5/8#
• Refrigerant (Global Warming Potential): R410A
