General Filters Inc 2A700-B Fuel Filter 25 Gph

Product Description

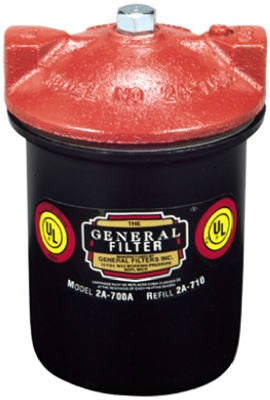

The GENERAL FILTERS INC 2A700-B is a fuel filter designed for oil-fired heating appliances. It provides inline fuel filtration to protect burner components from particulate contamination in the oil supply line. The filter is rated for a flow of 25 gallons per hour (GPH) and connects via 3/8 inch NPT fittings, making it compatible with standard residential and light commercial oil heating supply lines. A minimum firing rate pressure of 12 psi is supported. The unit is UL Listed, confirming it meets recognized safety standards for fuel-burning equipment. Licensed oil burner technicians and HVAC service professionals are the primary installers of this component.

This filter is intended for use in oil-fired heating appliances, including residential oil furnaces, oil boilers, and oil burner units that draw fuel from a storage tank through a supply line. It is installed in the fuel supply line between the tank and the burner assembly to remove contaminants before they reach the fuel pump and nozzle. Its 3/8 inch NPT connection size suits the standard supply line configurations found in most residential oil heating installations.

Key Features

• 25 GPH flow capacity suitable for residential and light commercial oil burner applications
• 3/8 inch NPT inlet and outlet connections for standard oil supply line compatibility
• 12 psi firing rate pressure rating
• UL Listed for use with oil-fired heating appliances
• Sold individually; available in case quantity of 12 units

Compatibility

Designed as an OEM-style replacement fuel filter for residential and light commercial oil-fired heating appliances using 3/8 inch NPT fuel supply line connections.

Installation Notes

Installation should be performed by a licensed oil burner technician or qualified HVAC service professional. Shut off the fuel supply valve and depressurize the line before removing the existing filter. Use appropriate thread sealant rated for petroleum-based fuel on all NPT connections. Verify there are no leaks at fittings before restoring fuel supply and firing the appliance.

Technical Specifications

• Flow Rate: 25 GPH
• Connection Size: 3/8 inch NPT
• Firing Rate Pressure: 12 psi
• Listing: UL Listed
• Weight: 43 pounds (case of 12)
• Package Quantity: 12 units per case

Standard Information

• Brand: GENERAL FILTERS INC
• Manufacturer Part Number: 2A700-B
