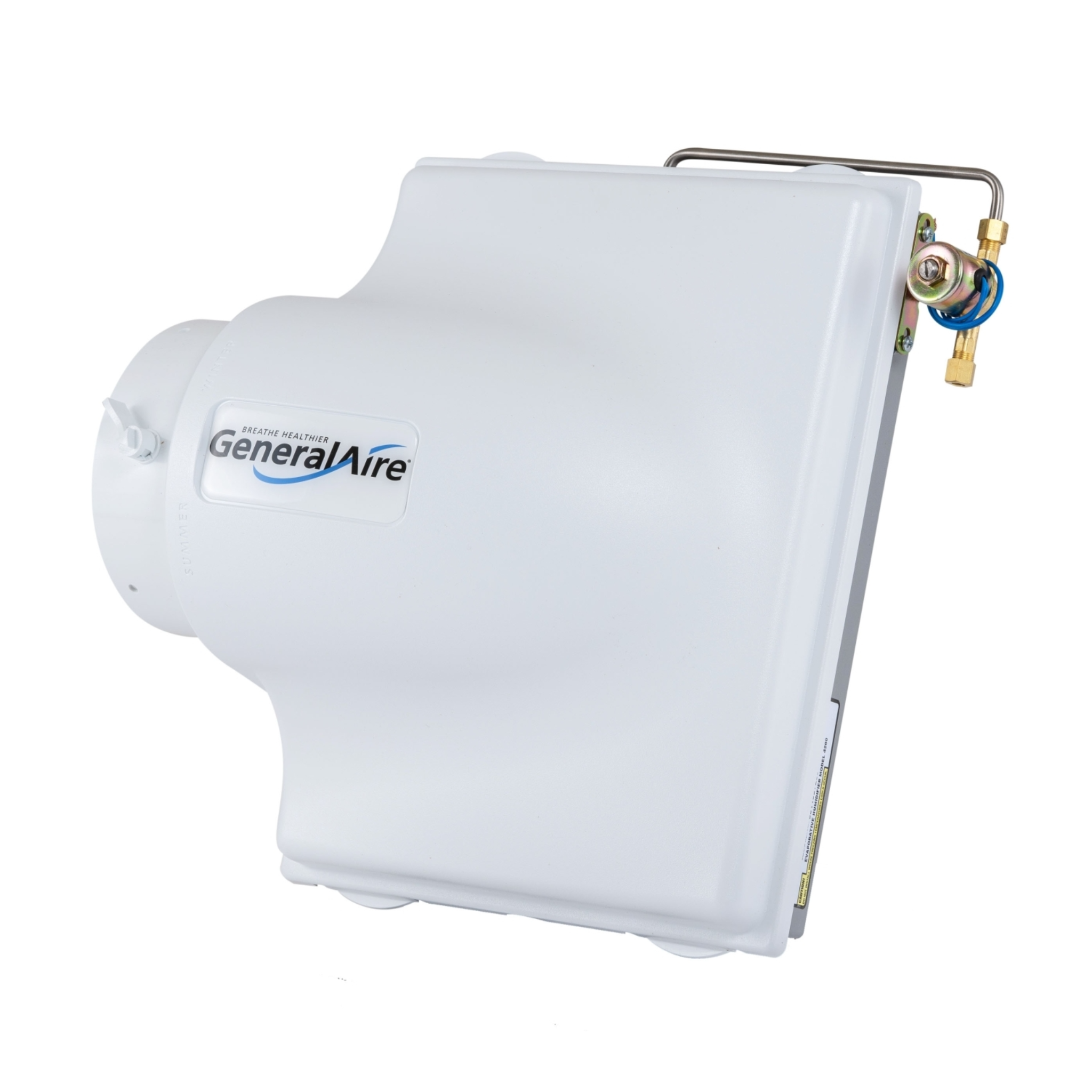

General Filters 4200A Evaporative Humidifier 24V Up to 4200 Sq Ft GA35

Product Description

The GENERAL FILTERS 4200A is a bypass evaporative humidifier designed for homes up to 4,200 square feet. It delivers 17 gallons of moisture per day, based on a 120°F plenum temperature, by sending warm air through a water-soaked Vapor Pad®. This process humidifies the air, which is then distributed throughout the home's duct system. It operates on 24 volts and includes a GFX4 digital automatic-control humidistat to manage the furnace blower motor for optimal humidity.

• Low-profile cover that forces air directly through the Vapor Pad® at its warmest point
• Stainless steel distributor tube for cold or hot water supply
• Redesigned cover and chassis to direct hot furnace air directly through the Vapor Pad®

Product Highlights

Efficiently humidifies homes up to 4,200 sq ft with 17 GPD output and automatic humidistat control.

Product Information

Standard Information

• Brand: GENERAL FILTERS
• Manufacturer Part Number: 4200A

Technical Specifications

• Type: Bypass Evaporative
• Gallons Per Day: 17 (based on 120°F plenum temperature)
• Vapor Pad Replacement: GA35 (GFI #7902)
• Vapor Pad Replacement Frequency: 1-2 times per season
• Home Size Capacity: Up to 4,200 square feet
• Plenum Opening: 9.125 W x 12 H inches
• Bypass Opening: 6 inches
• Installation Type: Warm air / return air plenum / right or left side

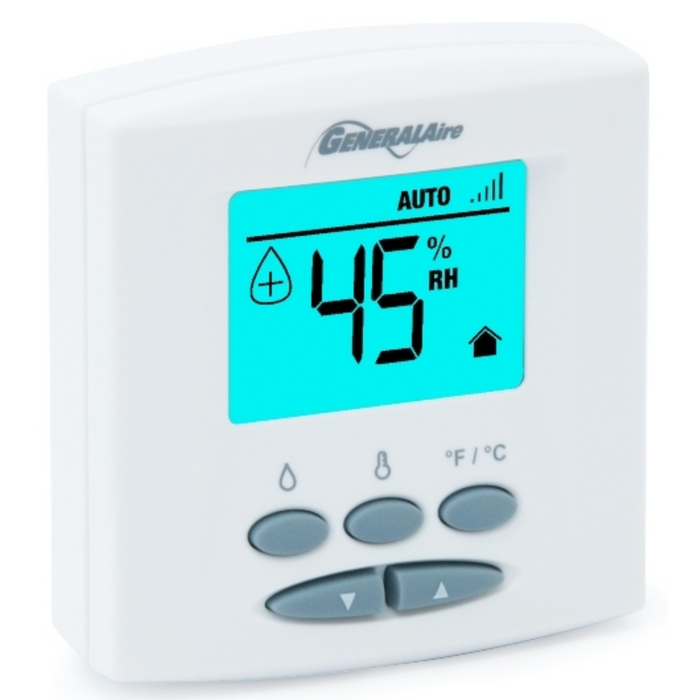

• Control: GFX4 digital automatic-control humidistat; controls the furnace blower motor
• Power: 24 volts
• Special Feature: Auto Shut Off
• Wattage: 60 watts
• Material: Plastic
